PRIDE

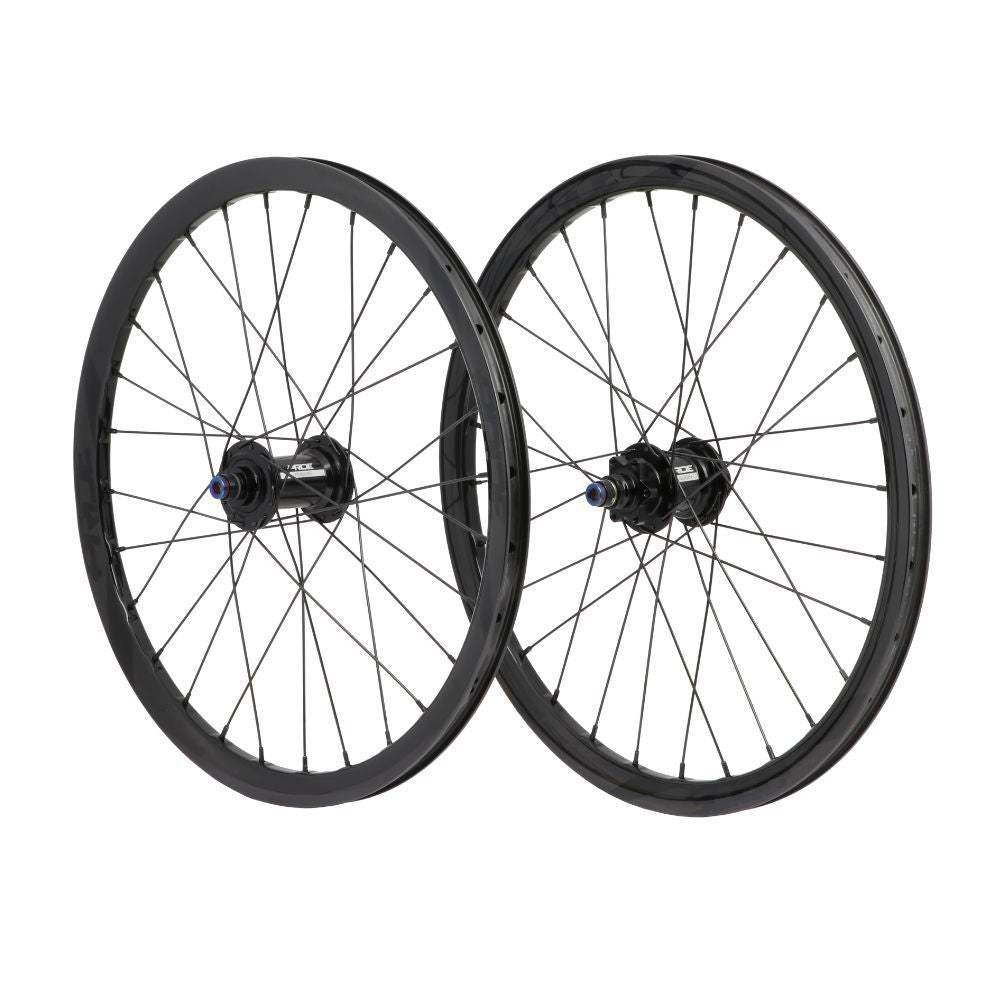

PRIDE 20" (451mm) Carbon Wave Gloss Black Fusion Disc Axles 10/10mm Black Wheelset

The PRIDE Wave Gloss Black - Fusion 10/10mm Wheelset has been developed to meet the demands of BMX Race with a performance-, stiffness- and... Read more
14 050,00 SEK
14 050,00 SEK
View full details

Description

The PRIDE Wave Gloss Black - Fusion 10/10mm Wheelset has been developed to meet the demands of BMX Race with a performance-, stiffness- and reactivity-oriented design. Equipped with Wave CFR rims in Toray T700 carbon and Fusion hubs, this wheelset offers a high-end package aimed at riders seeking performance gains on the track.

The Wave CFR rims feature a specific design with a square reinforcement at the spoke heads, allowing increased spoke tension and greater wheel stiffness. Their very low profile limits wind resistance while promoting excellent steering precision and efficient power transfer during accelerations.

The Fusion aluminium hubs complete this wheelset with a rapid engagement system featuring 180 engagement points and 6 pawls, delivering an immediate response during accelerations. With their high-quality bearings and optimised design, they ensure smoothness, durability and efficiency during BMX Race acceleration phases.

Ref: 15986274894204

Technical information

Use: BMX Race
Diameter: 20 inches
Standard: 451 / ETRTO 16-451
Rim material: Toray T700 Carbon
Colour: Gloss Black
Use: BMX Race
Braking: Disc only
Technology: Wave CFR
Profile: Low
Rim height: 25 mm
Rim width: 23 mm
Number of holes: 28
Valve type: Presta
Tyre compatibility:
20 x 1-1/8"
20 x 1-3/8"
V-Brake compatibility: No

PRIDE Fusion hubs
Material: Aluminium
Front axle spacing: 10 x 100 mm
Rear axle spacing: 10 x 110 mm
Number of holes: 28
Freehub body: Shimano
Engagement system: 180 points / 6 pawls
Disc mount: ISO 6-bolt
Front bearings: 6805
Rear bearings: 6804

Total pair weight: 1490 g
Front wheel: 706 g
Rear wheel: 784 g

Included accessories:
Lock ring supplied with the rear wheel
Spacers for chainline adjustment
;
