PRIDE

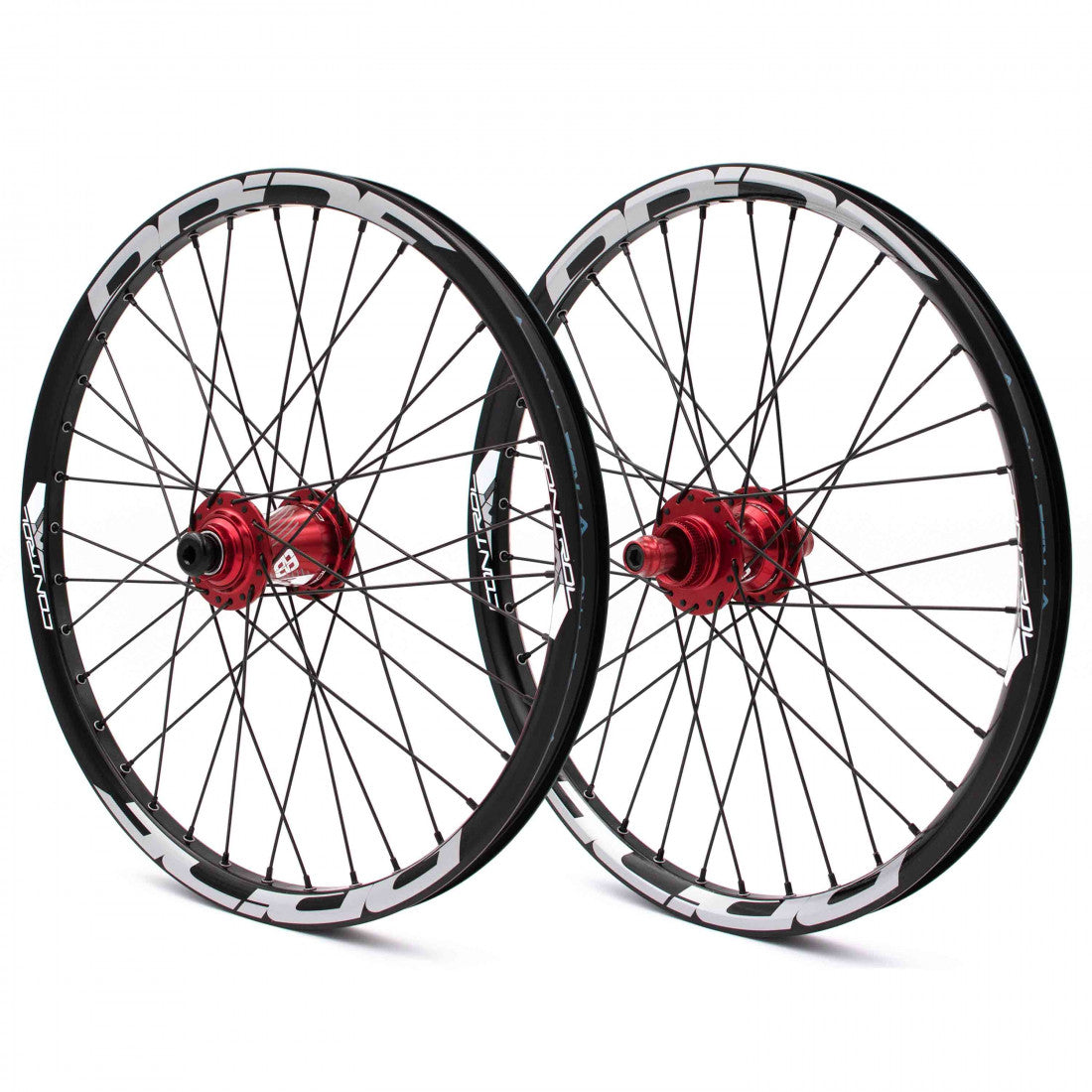

PRIDE 20" (406mm) Control V1 Disc 20/10mm Axle Red Wheelset

The PRIDE 20" (406mm) Control V1 20/10mm Axle Red Wheelset is specially developed for BMX Race bikes equipped with 20-inch 406 mm wheels. This... Read more
Regular price 5 854,00 SEK
Regular price Sale price 5 854,00 SEK
View full details

Description

The PRIDE 20" (406mm) Control V1 20/10mm Axle Red Wheelset is specially developed for BMX Race bikes equipped with 20-inch 406 mm wheels. This wheelset combines Pride Control rims and hubs to deliver a high-performance, lightweight and efficient set for acceleration phases. The 6061-T6 aluminium construction with heat treatment ensures an excellent balance between rigidity, efficiency and strength.

The Control V1 double-wall rims offer a design adapted to the demands of BMX Race with their 36 spokes and 19 mm height profile. The Control hubs complete this set thanks to their quick-engagement system comprising 6 micro-toothed pawls developing 180 engagement points, enabling direct acceleration out of corners or during explosive starts.

This wheelset adopts a disc brake only configuration with a Centerlock fitting. The front wheel uses a 20x100 mm axle and the rear wheel a 10x110 mm axle with female threading, offering specific BMX Race compatibility. The red finish on the hubs also adds a distinctive aesthetic touch to the build.

Ref: 15986272797052

Technical information

General information
Type: BMX Race wheel pair
Diameter: 20" (406 mm)
Model: Pride Control V1
Hub colour: Red
Braking type: Disc only
Material: 6061-T6 aluminium
Pair weight: 1730 g
Front wheel weight: 778 g
Rear wheel weight: 952 g

Rim specifications
Front ETRTO size: 23-406
Rear ETRTO size: 24-406
Construction: Double wall
Rim height: 19 mm
Front width: 27 mm
Rear width: 28 mm
Number of spokes: 36
Valve type: Schrader
Tyre compatibility: 28 to 65 mm
V-Brake compatibility: No

Hub specifications
Material: 6061-T6 aluminium
Front hub: 20x100 mm
20 mm front axle not included
Rear hub: 10x110 mm
Rear attachment: Female threading
Freehub body: Shimano
Engagement system: 180 points / 6 pawls
Disc attachment: Centerlock
Front bearing: 6805
Rear bearing: 6902

Included items / additional information
Rear wheel supplied with lock ring and spacers to adjust the chainline
Rim tape not included
20 mm front axle not included
