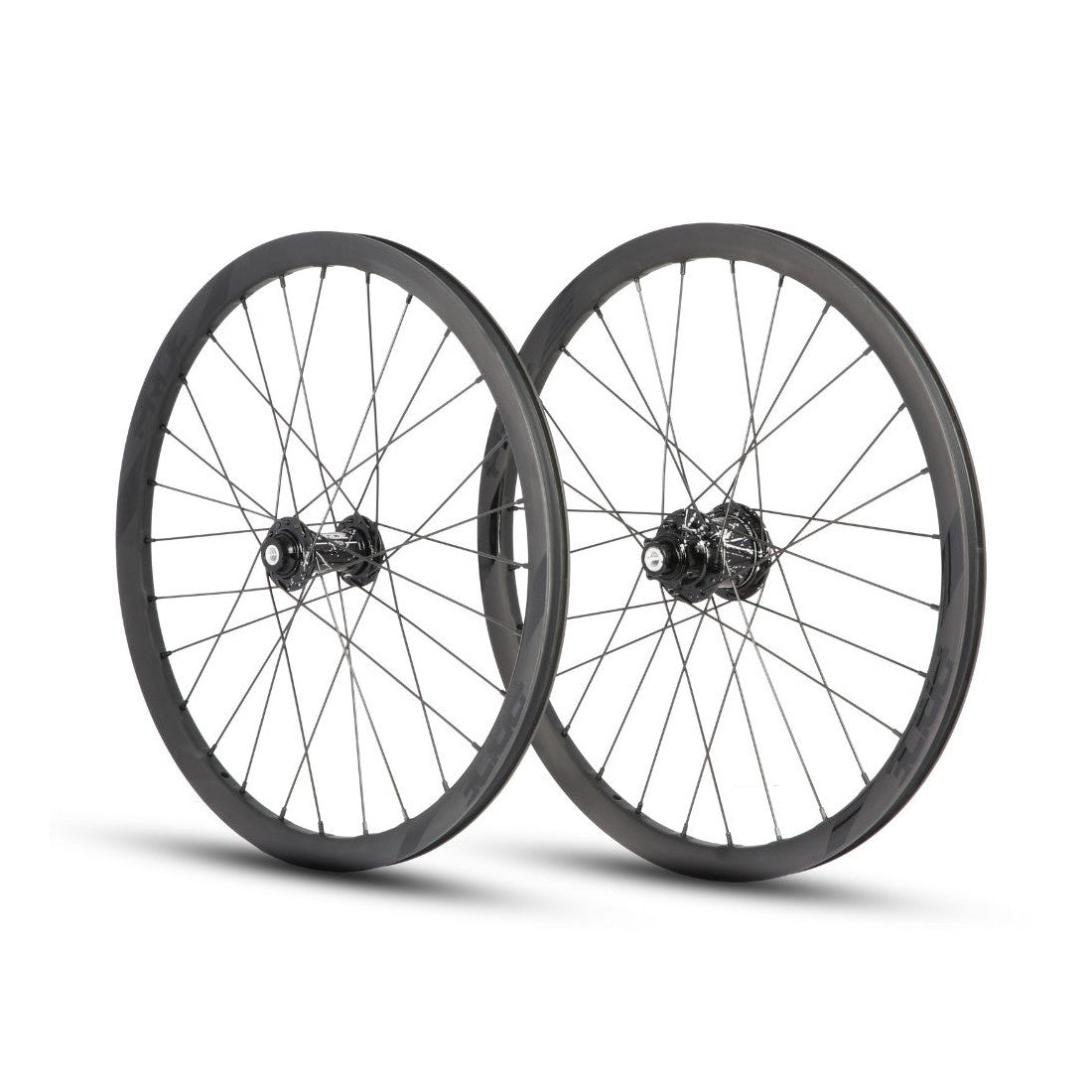

PRIDE 20" (451mm) Carbon Wave Matt Black Disc Matrix Axes 10/10mm Wheel Set Black

The PRIDE 20" (451mm) Wave Matt Black Disc Matrix Axes 10/10mm Black Wheel Set is developed for BMX Race with a performance-oriented design. It... Read more
14 635,00 SEK
14 635,00 SEK
View full details

Description

The PRIDE 20" (451mm) Wave Matt Black Disc Matrix Axes 10/10mm Black Wheel Set is developed for BMX Race with a performance-oriented design. It combines Wave CFR Toray T700 carbon rims with Matrix hubs, delivering a lightweight, stiff setup perfectly suited to the demands of competition.

The Wave CFR rims feature a specific design with a square reinforcement at the spoke heads, allowing increased spoke tension and improved overall wheel stiffness. Their low profile minimises wind resistance while maintaining excellent efficiency during accelerations and rhythm changes.

Equipped with Matrix aluminium hubs, this wheelset benefits from precise and reliable operation. The configuration with 10 mm front and rear axles, ISO 6-bolt disc mount and 28-hole spoke pattern offers ideal compatibility with modern BMX Race builds seeking maximum control and responsiveness.

Ref: 15986273255804

Technical information

Technical specifications – General
Model: PRIDE Wave Matt Black / Matrix
Use: BMX Race
Diameter: 20 inches – 451 mm
Type: Front + rear wheelset
Rim material: Toray T700 Carbon
Colour: Matt black
Brake type: Disc only
Valve: Presta
Number of holes: 28 per wheel

Technical specifications – Rims
Model: Wave CFR
Technology: Square reinforcement at spoke heads
Objective: Increased spoke tension and improved stiffness
Rim height: 25 mm
Rim width: 23 mm
Tyre compatibility: 20 x 1-1/8" to 20 x 1-3/8"

Technical specifications – Front hub
Model: Matrix
Body: Aluminium
Axle: 10 x 100 mm
Number of holes: 28
Disc mount: ISO 6-bolt
Bearings: 6805

Technical specifications – Rear hub
Model: Matrix
Body: Aluminium
Axle: 10 x 110 mm
Number of holes: 28
Freehub body: Shimano
Disc mount: ISO 6-bolt
Bearings: 6804

Front wheel weight: 706 g
Rear wheel weight: 784 g
Total pair weight: 1490 g
;
