ALUGEAR

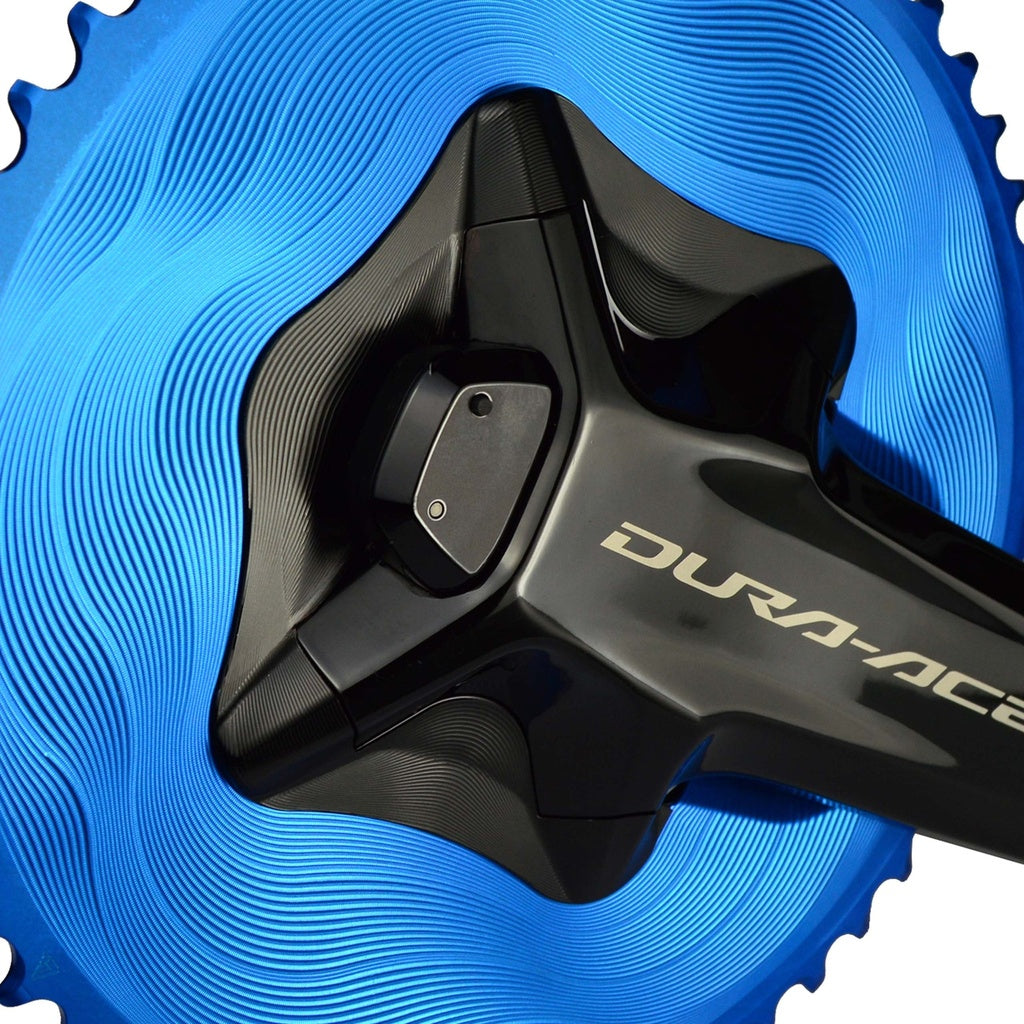

ALUGEAR Cover for Shimano R9200 Crankset with Power Meter

The Cover AERO ALUGEAR is designed for ALUGEAR 1X and 2X chainrings paired with Shimano Dura-Ace R9200-P 12-speed cranksets with integrated Shimano power meter.... Read more
845,00 SEK
845,00 SEK
View full details

Description

The Cover AERO ALUGEAR is designed for ALUGEAR 1X and 2X chainrings paired with Shimano Dura-Ace R9200-P 12-speed cranksets with integrated Shimano power meter. Its design provides a seamless finish between the chainring and the crank arm.

Made from 7075-T6 aluminium, this cover features CNC machining and an anodised finish. The AERO design conceals the junction between the chainring and the crank arm for an integrated and clean appearance.

Weighing just 17 g, it remains particularly lightweight. The cover is removable and repositionable. Its fixing uses four arms with a 110 mm asymmetric Shimano bolt circle diameter. Installation is carried out with a 5 mm hex key and a maximum torque of 10 Nm.

Ref: 16068016275836

Technical information

Product: Cover PM R9200-P
Design: AERO
Use: ALUGEAR 1X and 2X chainrings
Bottom bracket compatibility: Shimano Dura-Ace R9200-P 12-speed
Power sensor: Shimano Power Meter integrated into the bottom bracket
Crank compatibility: Shimano Dura-Ace R9200-P with integrated power meter
Fixing type: 4-arm spider
Bolt circle diameter (BCD): 110 mm
BCD standard: Shimano asymmetric
Material: 7075-T6 aluminium
Manufacturing: CNC machining
Finish: anodising
Cover weight: 17 g
Bolt weight: 8 g
Bolts supplied: M8 × 11.5 mm
Tool fitting: 5 mm hex socket
Maximum permitted torque: 10 Nm
Drivetrain compatibility: 12-speed
Cover function: conceals the junction between the chainring and the crank arm
Fitting: cover easily removable and repositionable
Available colours: Black, Silver, Red, Blue, Orange, Green, Gold, Purple, Steel, Mocha
Delivery: 1 × AERO Cover + 4 × M8 bolts with spacers
Manufacturer recommendation: use only original ALUGEAR bolts during installation.
;
