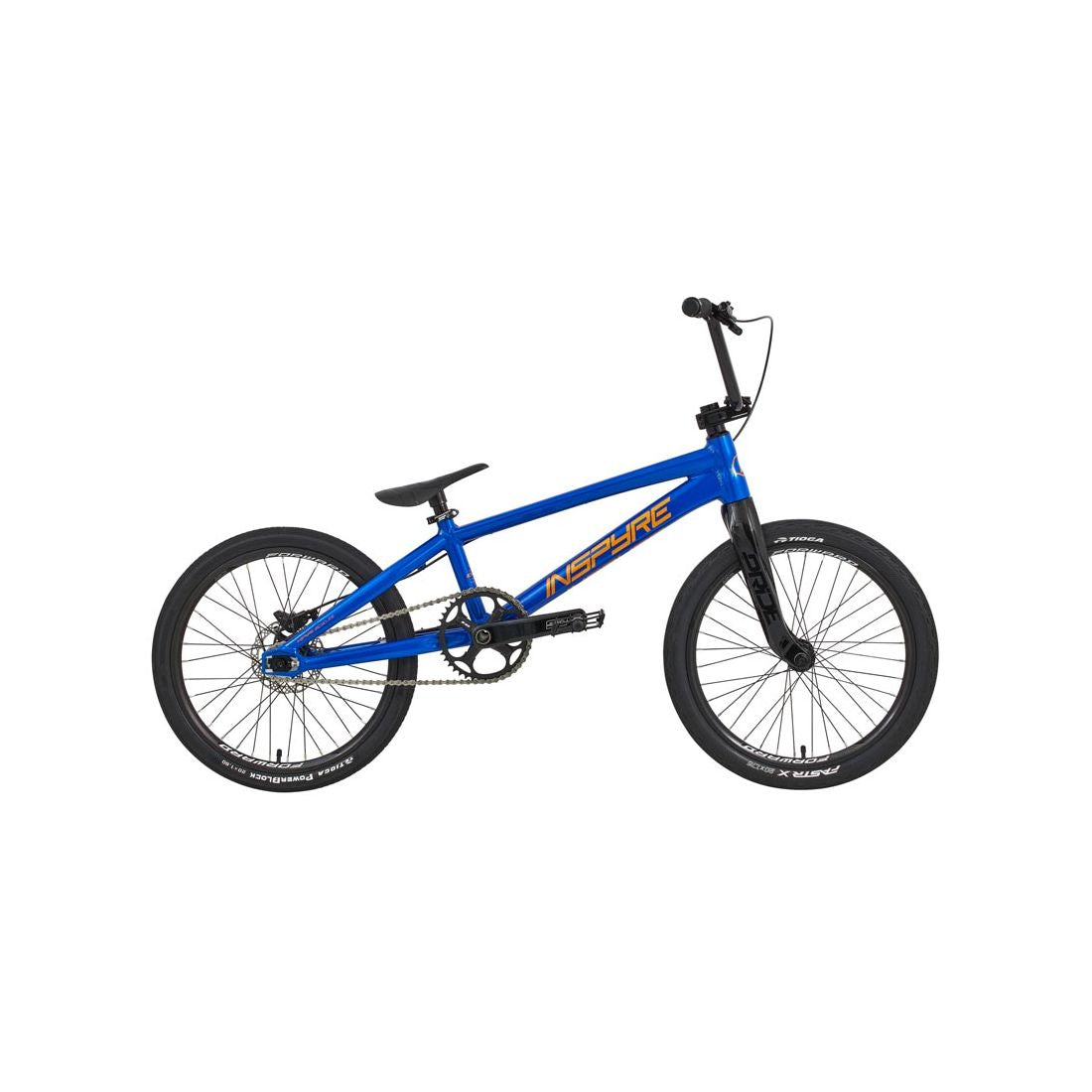

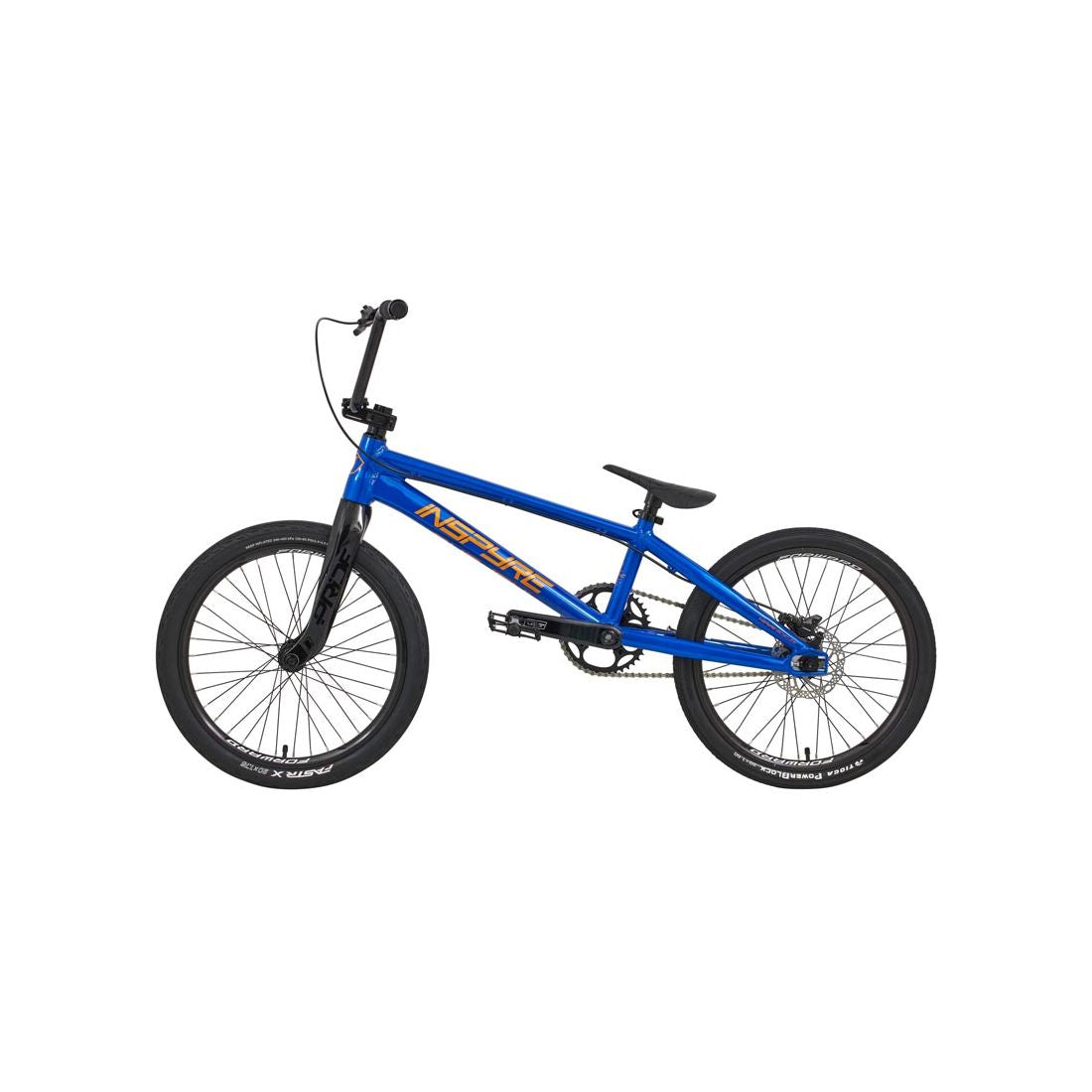

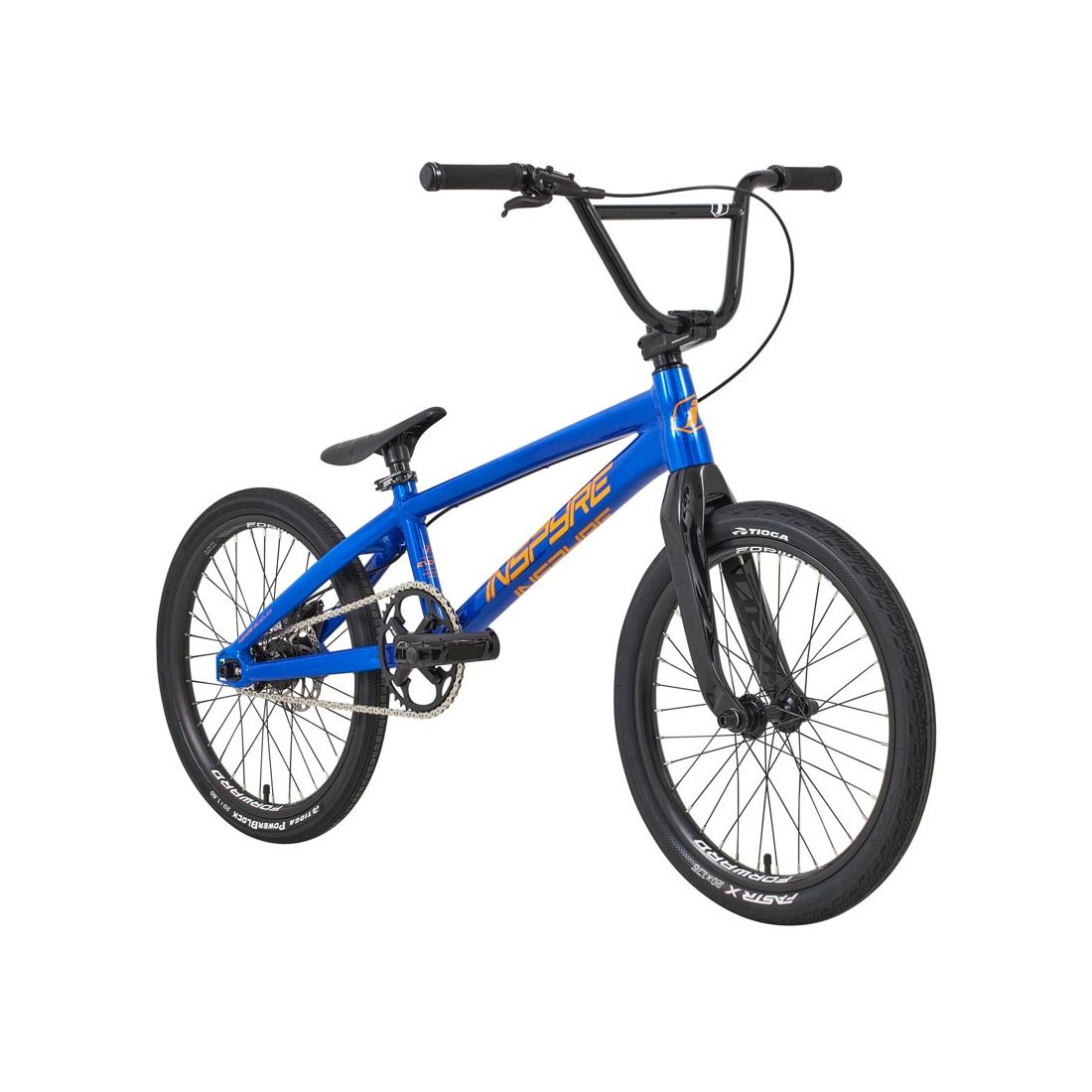

BMX INSPYRE Evo-C Disk Pro Blue 2026

Manufacturer ref.: VEIN2643
The BMX INSPYRE Evo-C Disk Pro 2026 is a BMX Race designed to deliver a high level of performance on the track. It is... Read more
15 221,00 SEK
15 221,00 SEK
View full details

Description

The BMX INSPYRE Evo-C Disk Pro 2026 is a BMX Race designed to deliver a high level of performance on the track. It is built around an Evo-C Disk aluminium 6061-T6 frame, using hydroformed tubes and a Triple Butted construction to achieve an excellent balance between stiffness, lightness and responsiveness.

The frame geometry has been developed to deliver precise and dynamic handling. The 3D forged Swell rear dropouts with integrated chain tensioners improve the overall stiffness while making chain tension adjustment easier. The Pride Racing Apex Carbon fork with Tapered aluminium steerer enhances steering precision and power transfer.

The Evo-C Disk Pro 2026's specification prioritises performance with Shimano MT401/MT410 hydraulic braking, an SD B-85 2-piece crankset and Forward Joyride double-wall aluminium wheels. The build combines efficiency and reliability to meet the demands of intensive training sessions as well as BMX Race competitions.

With its competition-selected components, its Tioga Fastr X tyres at the front and Tioga Powerblock at the rear, as well as its Forward Joyride V2 Disc rear hub with 150 points of engagement, the BMX INSPYRE Evo-C Disk Pro 2026 offers a high-performance, fast platform that is ready for the track.

Ref: 15995237368188

Technical information

Model: Inspyre Evo-C Disk Pro 2026
Material: Premium 6061-T6 Aluminium
Construction: Hydroformed tubes
Technology: Triple Butted
Frame size: Pro
Recommended size: Approx. 1m55 to 1m70 for the Pro version
Top Tube Length: 20.75"
Rear dropouts: 3D forged Swell
Chain tensioners: Integrated

Fork / Headset
Fork: Pride Racing Apex
Material: Carbon
Steerer: Tapered Aluminium 1-1/8" / 1.5"
Axle: 20 mm with 10 mm reducers
Headset: Pride Racing integrated Tapered
Bearings: Annular
Standard: IS42 / IS52

Cockpit
Handlebar: Inspyre Evo
Material: 100% CrMo
Diameter: 22.2 mm
Dimensions: 7.5" x 26.7"
Back Sweep: 7°
Up Sweep: 1.5°
Grips: Forward Lock On
Material: Kraton
Length: 130 mm
Stem: Forward Top Load
Material: 6061-T6 Aluminium
Length: 50 mm
Diameter: 22.2 mm

Braking
System: Hydraulic disc brake
Lever: Shimano BL-MT401
Rear calliper: Shimano BR-MT410
Mount: Post Mount
Pads: Resin
Disc: Forward Joyride AM
Fixing: ISO 6
Disc diameter: 140 mm

Drivetrain
Bottom bracket: External
Bearings: Annular
Crankset: SD B-85
Type: 2-piece
Fixing: 4-bolt
Crank length: 175 mm
Chainring: Aluminium
Teeth: 42T
BCD: 110 mm
Sprocket: CrMo
Teeth: 16T
Chain: KMC Z-1
Standard: 1/2" x 3/32"

Wheels
Front wheel
Rim: Forward Joyride
Material: Aluminium
Construction: Double wall
Drilling: 36 holes
Hub: Forward Joyride V2
Body: Aluminium
Axle: 10 mm
Bearings: 100% sealed
Fixing: Female bolt
Rear wheel
Rim: Forward Joyride
Material: Aluminium
Construction: Double wall
Drilling: 36 holes
Hub: Forward Joyride V2 Disc
Body: Cassette aluminium
Axle: 10 mm
Engagement: 150 points
System: 6 pawls
Bearings: 100% sealed
Fixing: Female bolt
Spokes: Stainless 14G
Spoke nipples: Brass 14G

Tyres
Front: Tioga Fastr X
Dimensions: 20 x 1.75"
Rear: Tioga Powerblock
Dimensions: 20 x 1.60"

Saddle: Nylon saddle/seatpost combo
Seatpost diameter: 27.2 mm
Saddle clamp: Forward AM
Diameter: 31.8 mm
;
