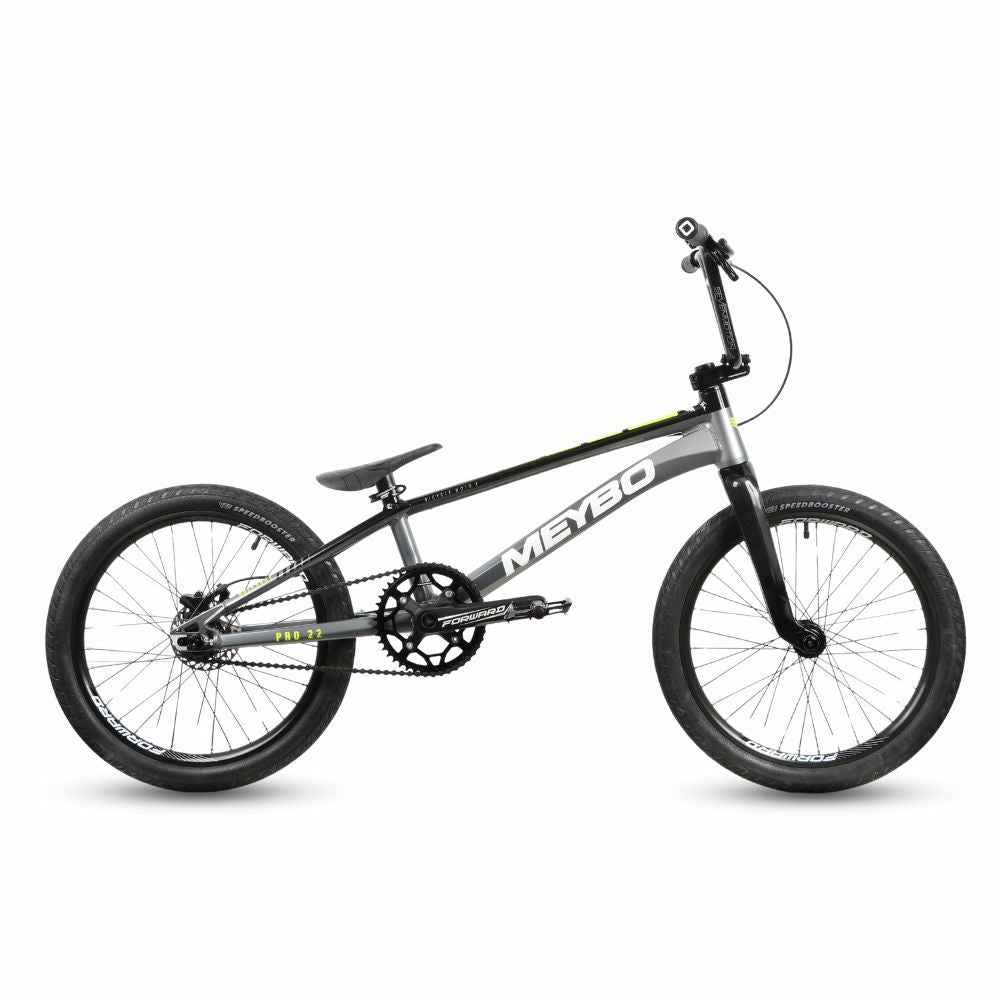

BMX MEYBO Holeshot Custom Pro 22" Black/Grey

Manufacturer ref.: VEFR0113
The BMX MEYBO Holeshot Custom Pro 22" is a high-end BMX Race built around the Meybo Holeshot 6061-T6 aluminium frame. Its design featuring hydroformed... Read more
24 588,00 SEK
24 588,00 SEK
View full details

Description

The BMX MEYBO Holeshot Custom Pro 22" is a high-end BMX Race built around the Meybo Holeshot 6061-T6 aluminium frame. Its design featuring hydroformed tubes with variable wall thickness delivers an excellent balance between lightweight, rigidity and responsiveness, offering precise handling on BMX tracks.

This Custom build adopts a performance-oriented configuration with a Pride Matrix Carbon Tapered 20 mm fork and a Pride Sevenmotion 8" handlebar. The combination delivers precise steering, excellent high-speed stability and immediate response during acceleration or sprint phases.

The Holeshot Pro 22" chassis benefits from a geometry designed for experienced riders seeking efficiency and control. The Forward Joyride components ensure a reliable build, including aluminium wheels, Postmount braking and a rear hub with 6 pawls and 150 engagement points for rapid pick-up.

With its complete equipment and contained weight of 8.98 kg without pedals, this Meybo BMX offers a competition-ready platform. The combination of carbon technology, hydroformed aluminium and specific BMX Race components makes it a high-performance bike for riders seeking speed, precision and efficiency on the track.

Ref: 15995238908284

Technical information

Type: Full BMX Race
Model: Meybo Holeshot Custom
Size: Pro 22"
Level: Experienced rider

Frame: Meybo Holeshot Pro 22"
Frame material: 6061-T6 Aluminium
Frame technology: Variable wall thickness hydroformed tubes
Geometry:
Top Tube: 22"
Rider Area: 557 mm
Down Tube: 555 mm
Rear stays: 386 mm
Head angle: 74°
Seat tube angle: 71°

Fork: Pride Matrix Carbon 20" Tapered
Front axle: 20 mm
Handlebar: Pride Sevenmotion 8"
Handlebar diameter: Ø22.2 mm
Grips: Pride Cobra 129 mm
Stem: Forward Topload 50 mm
Headset: Forward Swing integrated Tapered 1-1/8" – 1.5"

Brake:
Calliper: Forward Joyride Pro V2 Postmount
Disc: Forward GEN Ø120 mm

Wheels:
Rims: Forward Joyride Aluminium 20"
Front hub: Forward Joyride V3 20 mm
Rear hub: Forward Joyride V2 10 mm
Rear engagement: 150 points
Rear system: 6 pawls
Tyres: Vee Tire Speedbooster 20 x 1.75"

Crankset: Forward Joyride Pro 175 mm
Bottom bracket: Pride Interlock BB30 24 mm
Chainring: Forward Joyride V2 44 teeth
Sprocket: 16 teeth
Chain: Forward 3/32"
Saddle: Combo Saddle Ø27.2 mm
Seat clamp: Forward AM Ø31.8 mm
Pedals: Forward Megatron

Weight: 8.98 kg without pedals
;
