HOPE

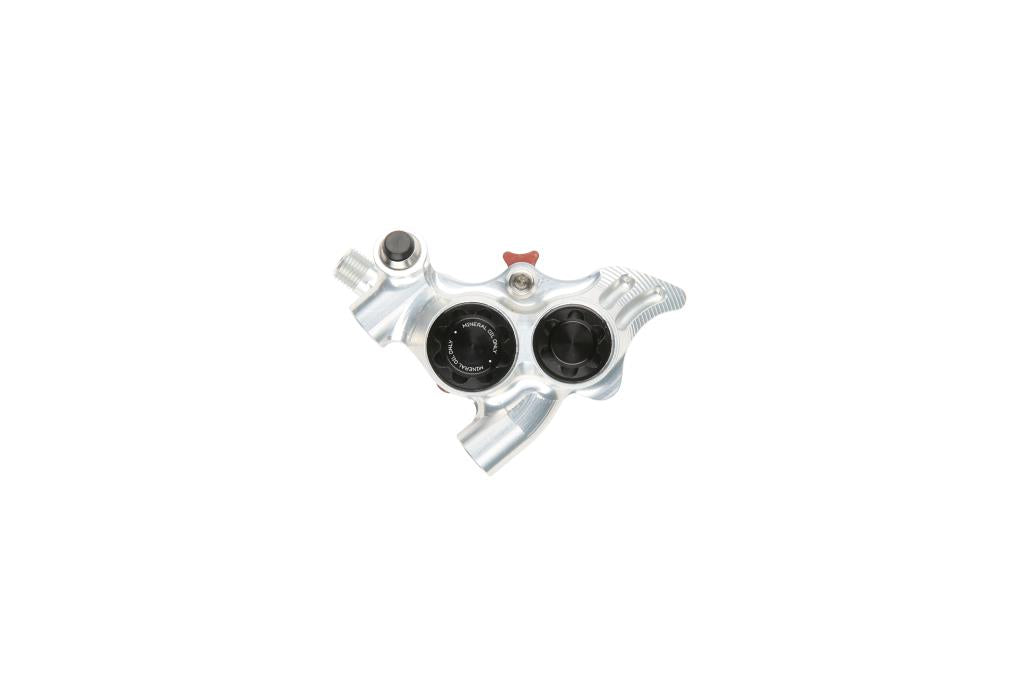

HOPE RX4+ SL FM 34mm 4-Piston Mineral Brake Calliper Silver

Réf. fabricant : HBSPC105S
The HOPE RX4+ SL Flat Mount 34mm Mineral hydraulic brake calliper was designed by the British brand to be paired with a Shimano/Campagnolo road... Read more
Regular price 1,636.00 SEK
Regular price Sale price 1,636.00 SEK
View full details

Description

The HOPE RX4+ SL Flat Mount 34mm Mineral hydraulic brake calliper was designed by the British brand to be paired with a Shimano/Campagnolo road brake lever. It is intended for a Flat Mount front 34 mm fitting with a 160 or 180 mm disc (with adapter) or Flat Mount front 70 mm with a 140, 160 or 180 mm disc with adapters. It can also be fitted in Flat Mount rear 34 mm with a 140 mm or 160 mm disc (with adapter) and depending on the rear offset with a 180 mm disc. It is designed to be fitted on a classic road bike or a cyclocross bike.

Thanks to its 4-piston system, it delivers powerful and reliable braking. This calliper features a rigid monoblock construction that transmits braking force very efficiently, with no unpleasant feel at the lever.

The RX4+ SL (2026) benefits from a narrower bore cap, inspired by the GR4 and TR4 models, reducing the width of the calliper and improving compatibility with more frames. It also integrates the bleed nipple from the RX2, making bleeding simpler and cleaner. These targeted improvements make the RX4+ SL more user-friendly, whilst retaining the performance and reliability expected of RX4+ brakes.

Compatibility.

Ref: 15927675158908

Points forts

Brake calliper for Road or Cyclocross;

Compatibility with hydraulic disc brake levers

Shimano and Campagnolo;

The power of the 4-piston system;

Very rigid monoblock construction;

Flat Mount standard;

Connector entry angle modified compared to the RX4 model.

Informations techniques

4-piston caliper ;

Flat Mount fixing
Front 70 mm
For fork offset of 11 mm: 140 mm rotor and with adapter X or adapter Z for 160 mm rotor
For fork offset of 16.7 mm: 160 mm rotor and with adapter X or adapter Z for 180 mm rotor

Flat Mount fixing
Front 34 mm
160 mm rotor direct or adapter Y for 180 mm rotor

Rear Flat Mount fixing 34 mm and offset of 36.5 mm: 140 mm rotor direct or 160 mm rotor with adapter Y

Rear Flat Mount fixing 34 mm and offset of 45 mm:
160 mm rotor direct or 180 mm rotor with adapter Y

Pistons 2 x 14mm and 2 x 16mm ;
Compatible SHIMANO levers: Dura Ace Di2 R9270 / R9170 / R9120 / R9200
Ultegra Di2 R8170 / R8100 / R8070 / R8170 / R8020 /
105 Di2 R7170 / R7020 / Di2 R785 / RS685 /
GRX RX820 / RX810 / RX600 / RX400 / RX815 Di2 / RX817 Di2l ;
Compatible CAMPAGNOLO levers: Ekar / Super Record / Record / Campagnolo H11 .
Mineral brake fluid.

New bleed pin design for easier and cleaner bleeding
New cap design reduces the overall width of the caliper for better compatibility

Informations prix

*Supplier recommended retail price in March 2026
