CAMPAGNOLO
CAMPAGNOLO PRO-TECH BSC Bottom Bracket
Manufacturer ref.: OC21-PRG
The CAMPAGNOLO Ekar Pro-Tech bottom bracket is specifically designed for the demanding conditions of off-road and gravel riding. It is only compatible with the Campagnolo...
Read more
Regular price
408,00 SEK
Regular price
Sale price
408,00 SEK
Unit price
per
Couldn't load pickup availability
Description

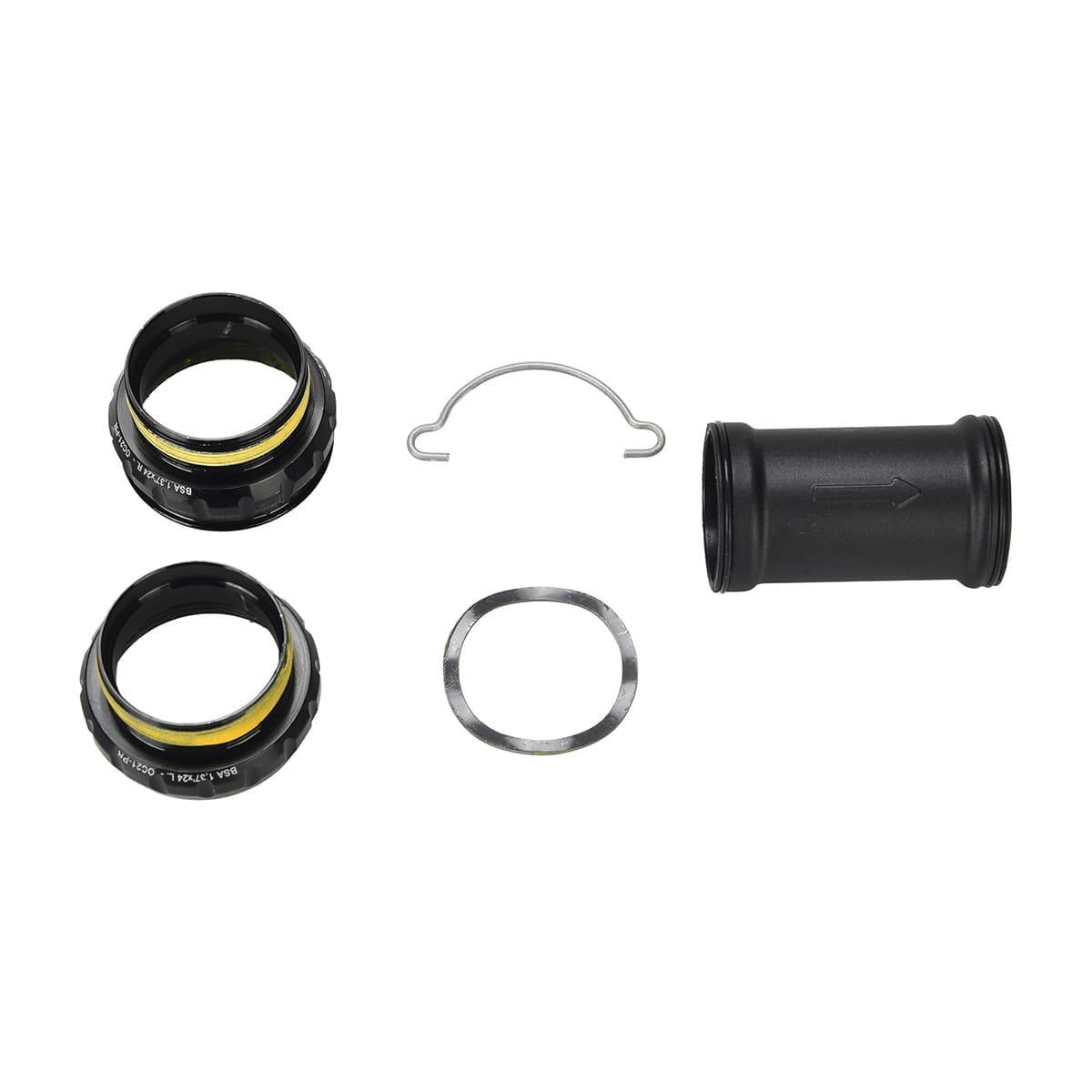

The CAMPAGNOLO Ekar Pro-Tech bottom bracket is specifically designed for the demanding conditions of off-road and gravel riding. It is only compatible with the Campagnolo Ekar crankset.
This bottom bracket features ProTech™ technology: a patented external seal that protects the ball bearings against the ingress of water, mud and sand, and a central waterproof ring in glass fibre-reinforced polyamide to prevent contamination from the inside.
The new cups mate with the oversized external stainless steel bearings mounted on the two Ultra-Torque™ half-axles firmly secured to the cranks. Thanks to the ProTech™ sealing system, performance is always optimal, whatever the conditions and terrain.
This bottom bracket features ProTech™ technology: a patented external seal that protects the ball bearings against the ingress of water, mud and sand, and a central waterproof ring in glass fibre-reinforced polyamide to prevent contamination from the inside.
The new cups mate with the oversized external stainless steel bearings mounted on the two Ultra-Torque™ half-axles firmly secured to the cranks. Thanks to the ProTech™ sealing system, performance is always optimal, whatever the conditions and terrain.
Compatibility chart
| A - Diameter (mm) | B - Width (mm) | Assembly | Standard |
| 34,8 | 68 | threaded | BSC / BSA |
| 34,8 | 73 | threaded | BSC / BSA |
| 34,8 | 83 | threaded | BSC / BSA |
| 34,8 | 100 | threaded | BSC / BSA |
| 27 | 95,5 | press-fit | BB 96 (Trek) |
| 41 | 92 | press-fit | PF 92 |
| 42 | 68 | press-fit | BB 30 |
| 42 | 73 | press-fit | BB 30 |
| 46 | 68 | press-fit | PF 30 |
| 46 | 73 | press-fit | PF 30 |
 |
|||
Ref: 7967910297766
Highlights
Specifically designed for tough conditions ;
ProTech technology protects against the elements ;
Durable and resistant.
Specifications
Axle diameter : 25 mm
Axle type : Through axle
Bottom bracket type : BSC English (68 mm)
