CANE CREEK

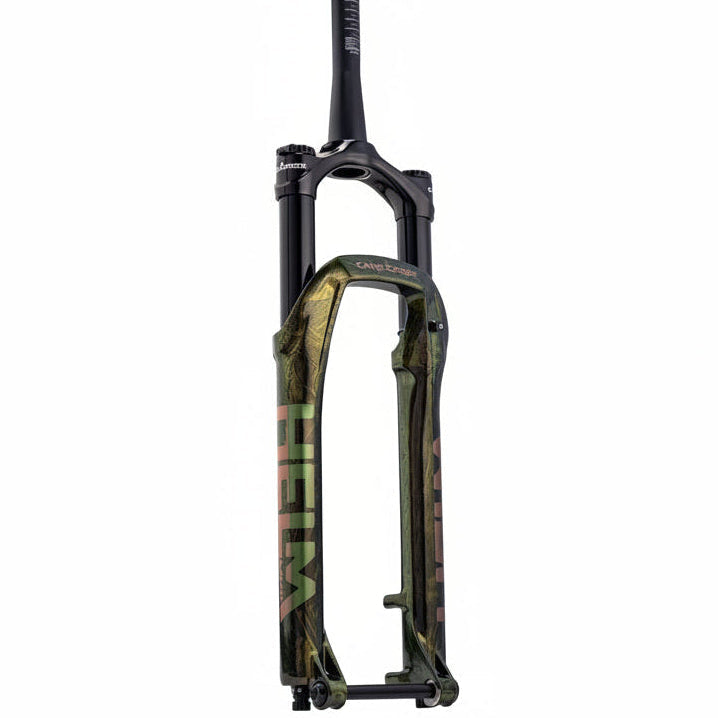

CANE CREEK HELM MKII AIR 29" Fork, Tapered, 15x110 mm Boost Axle, Aurora

Famous for its headsets and shocks, CANE CREEK solidifies its position in the MTB suspension market with its Helm MKII fork, designed for All... Read more
12,949.00 SEK
12,949.00 SEK
View full details

Description

Famous for its headsets and shocks, CANE CREEK solidifies its position in the MTB suspension market with its Helm MKII fork, designed for All Mountain and Enduro riding! This fork features travel that can be adjusted using shims.

This MKII update incorporates a new cartridge to increase support and control with a new compression and intermediate valve, and provides better support thanks to a new 2.5 Motorex oil. The air spring also features improvements in friction, traction, air volume, and ease of travel adjustment.

In addition to easily adjustable travel, this fork features a shock with adjustable high- and low-speed compression and low-speed rebound. As for the air spring—whose positive and negative chambers are independent—its air volume can be adjusted tool-free across no fewer than 8 positions!

Equipped with 35 mm stanchions, this CANE CREEK fork features the brand’s patented D-Loc axle, whose unique design effectively manages the rotational forces to which the fork’s components are subjected. It also features low-friction SKF seals for superior sensitivity.

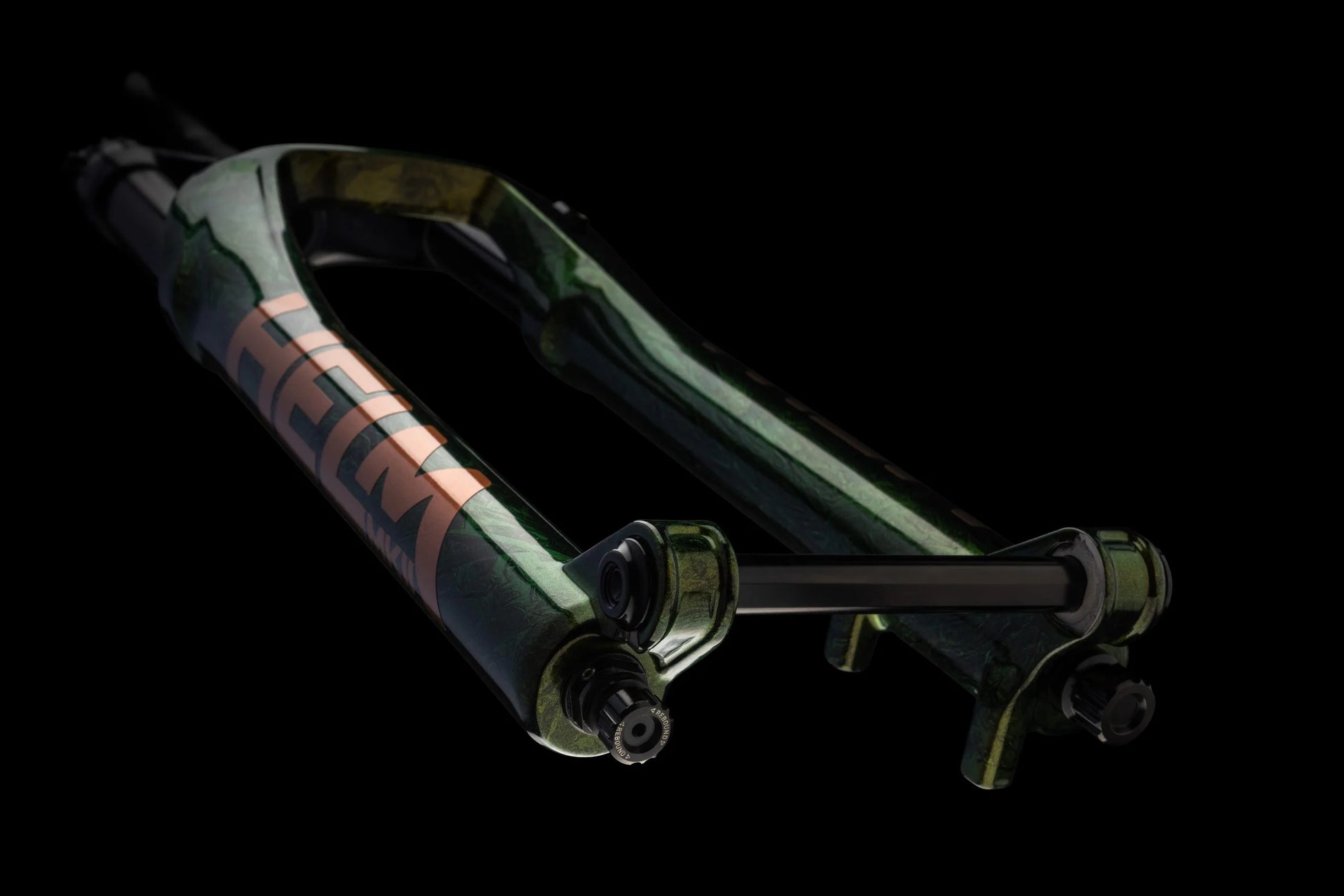

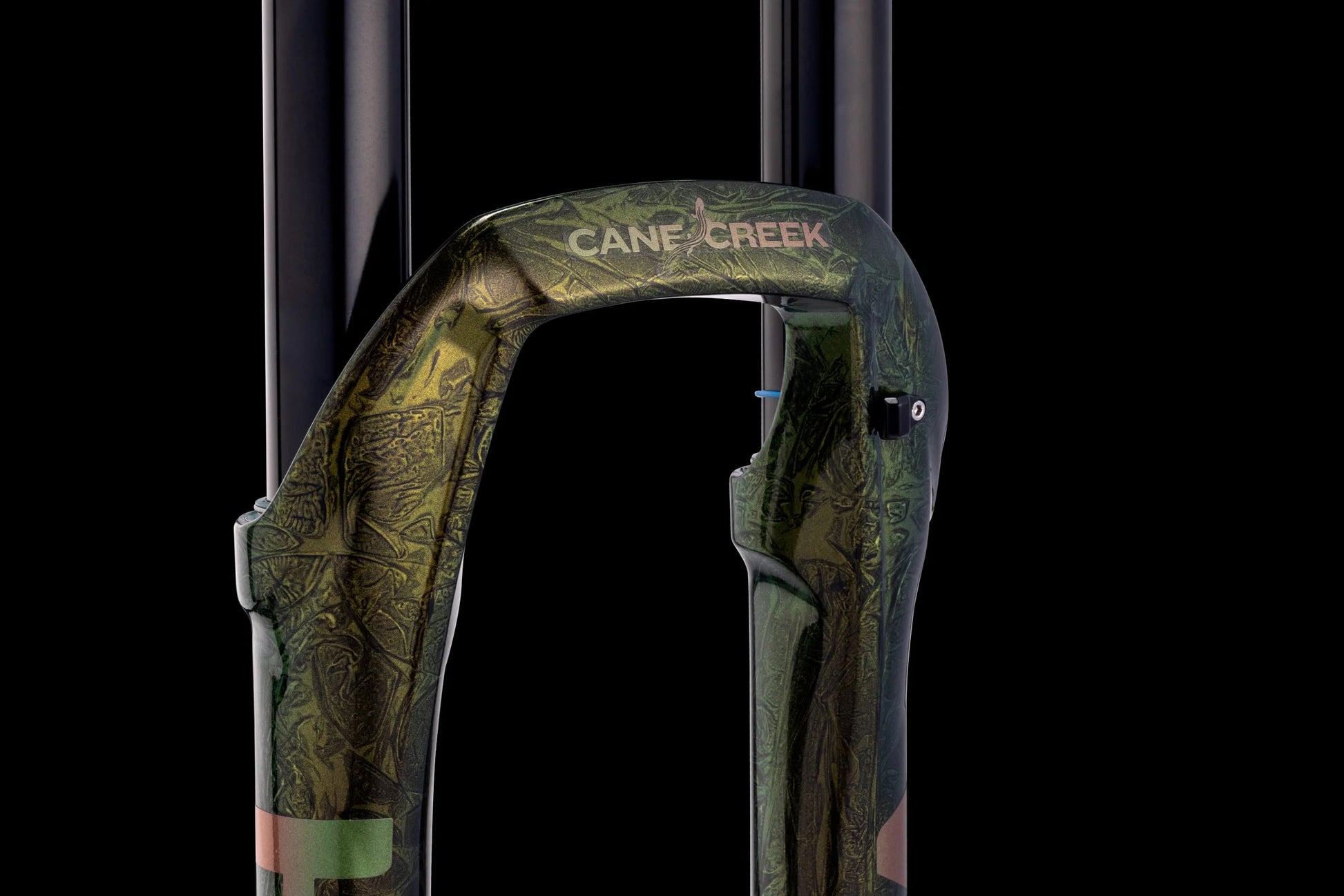

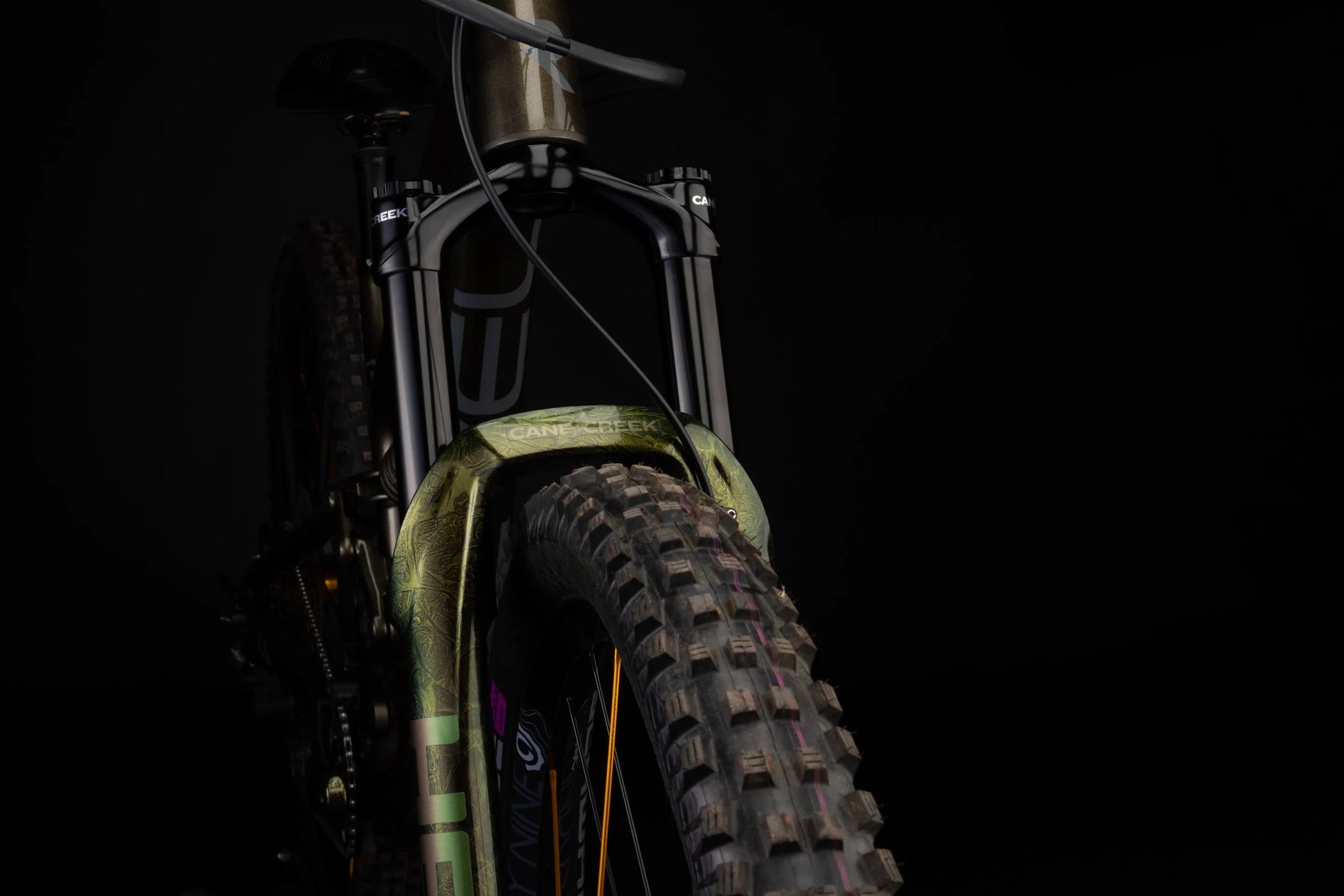

In this limited-edition Aurora colorway, this fork looks stunning!

Ref: 16036946641276

Points forts

Advancements in the cartridge and air spring for superior sensitivity, better control, and support Low-friction SKF seals A wide range of adjustment options Adjustable travel using the included shims Adjustable air volume The patented D-Loc Boost axle.

Informations techniques

Use: All Mountain T: Single Wheel Sizes: 29"/27.5+ Front Wheel Axle: 15x110 mm (Boost) Lockout: None Color: Black Travel: 130 mm Variable Travel: Yes, with spacers included Offset: 44 mm Max Disc Diameter: 200 mm Minimum Disc Diameter: 180 mm Steerer Tube Diameter: Tapered 1.5"-1 1/8" Steerer Tube Diameter: 35 mm Brake Mount: Postmount Fork Height: 573 mm (for 160 mm travel) Steerer Tube Length: 265 mm (trimmable) Pivot Material: Aluminum Stanchions: Aluminum Legs: Magnesium Adjustable Air Volume: Yes Travel adjustable with included shims (8 positions) SKF dust and oil seal Positive and negative chambers adjustable independently of each other D-Loc axle in Boost format Low-Speed Compression Adjustment: 17 positions High-Speed Compression Adjustment: 10 positions Low-Speed Rebound Adjustment: 10 positions High-Speed Rebound Adjustment: No Preload Adjustment: Yes Spring: Air Tire compatibility: up to 2.5" width on 29" wheels and 2.8" on 27.5+ wheels Manufacturer’s weight: 2080g Manufacturer’s part number: BAG0682
;

Informations prix

*Manufacturer's Suggested Retail Price in February 2024
