CANE CREEK

CANE CREEK INVERT CS 700c Fork 45mm Offset

Réf. fabricant : BBG0005
The CANE CREEK INVERT CS fork is the world's first inverted suspension fork specifically designed for gravel. With its 40 mm of travel, it... Read more
Regular price 13,790.00 SEK
Regular price Sale price 13,790.00 SEK
View full details

Description

The CANE CREEK INVERT CS fork is the world's first inverted suspension fork specifically designed for gravel. With its 40 mm of travel, it transforms rides on rough terrain into smoother, more comfortable and more controlled experiences. Thanks to its inverted design, it offers exceptionally supple performance, a contained weight and perfect visual integration with the clean lines of road-handlebar bikes.

Riding beyond the tarmac often imposes significant physical demands. The INVERT CS goes directly to the source of the problem by effectively absorbing shocks and vibrations, whether on unstable tracks, gravel corners or steep descents. The result: more traction, more confidence and reduced fatigue, both on the climbs and descents.

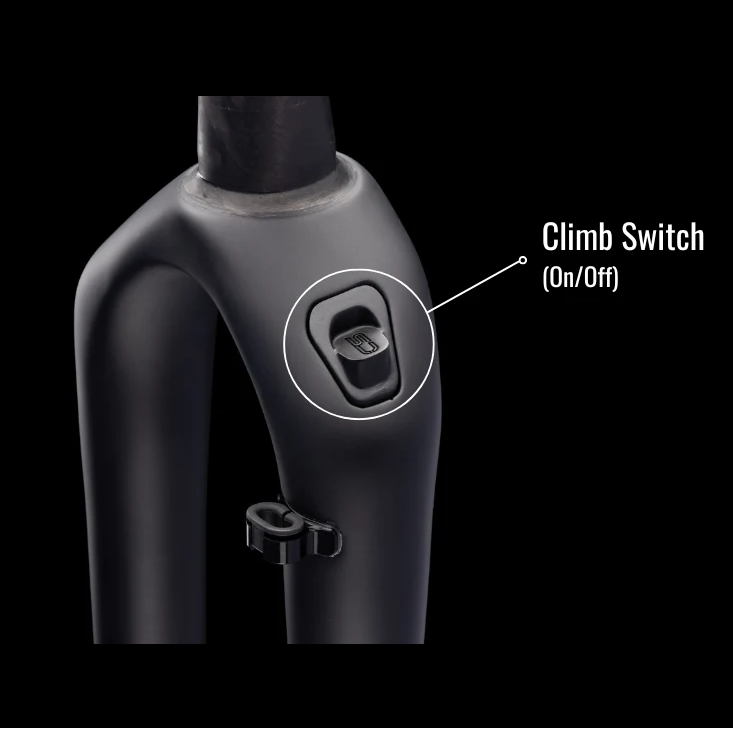

Its high-end construction, combining carbon and aluminium, achieves a weight of only 1113 g, while guaranteeing rigidity and reliability. The Climb Switch, easily operated even with gloves, allows you to activate a firmer mode for out-of-the-saddle pedalling phases or smooth terrain. No complex adjustment is required: simply adjust the air pressure with a pump and ride.

Its progressive air spring, specially tuned for gravel, offers a perfect balance between comfort and support, fully customisable according to the rider's weight. The inverted architecture also ensures a unique aesthetic, in harmony with modern bikes.

Handcrafted in Fletcher, North Carolina, the CANE CREEK INVERT CS fork embodies a new generation of gravel suspension: intuitive, lightweight, high-performing and resolutely focused on the pleasure of riding, whatever terrain you encounter.

Manual and technical information.

Ref: 15086669693308

Informations techniques

Material: carbon and aluminium ;
Pneumatic preload adjustment ;
Travel: 40mm ;
Axle to crown height: 435mm ;
Offset: 45mm ;
Max tyre width: 700x50c ;
Steerer height / diameter carbon: 300mm / tapered
1.125" x 1.5" ;
Stanchion diameter: 30mm ;
One-piece, forged and machined stanchions ;
Fork cone: Integrated, 36 degree angle ;
Max Pressure: 250psi / 17.2 bar ;
Max Rider Weight: 250lbs / 113kg
Climb Switch On/Off lockout ;
Axle 12x100mm ;
For Flat Mount brakes ;
Min/max rotor: 160mm/180mm ;
Included: 52mm ZN40 lower bearing and Ancora expander ;
Weight (manufacturer): 1113g.
