CRANKBROTHERS

CRANKBROTHERS STAMP EVO Large flat pedals Black

Réf. fabricant : 17225CB
The CRANKBROTHERS Stamp Evo Largepedal is the direct evolution of the famous Stamp 7, redesigned to offer an even more generous support surface. With... Read more
Regular price 1,962.00 SEK
Regular price Sale price 1,962.00 SEK
View full details

Description

The CRANKBROTHERS Stamp Evo Largepedal is the direct evolution of the famous Stamp 7, redesigned to offer an even more generous support surface. With a 20% longer platform, it's designed for riders with large feet or those looking for a "full platform" feel underfoot.

Its unique hybrid construction combines an ultra-thin forged aluminum body with interchangeable composite bashguards. The latter act like shields: they absorb impacts against rocks and allow the pedal to glide over the obstacle rather than clinging to it. It's the ultimate pedal for DH and extreme Enduro.

I'm a size 43, should I get the Small or the Large? The 43 is at the hinge. If you prefer a compact pedal to avoid shocks (maneuverability), choose the Small. If you want maximum stability and comfort on long descents (DH/Enduro), the Large is preferable.

Are plastic bashguards strong? Yes, they're made from a very dense technical composite. Their role is to be "sacrificed" in the event of a big impact to save the pedal body. They can be replaced in minutes with a simple Allen key.

Why is this pedal longer than the old model? Feedback from pro riders has shown that a longer pedal helps stabilize the foot from front to back, which reduces muscle fatigue in the calves during very rough sections.

Is maintenance complicated? No, Crankbrothers pedals are renowned for their ease of maintenance. A grease port allows you to change the grease without disassembling the entire pedal.

Ref: 15953380114812

Points forts

Maximum Surface Area (Large): Specifically sized for sizes 43.5 to 49 (EU), to prevent the foot from protruding beyond the platform.

Elongated platform: A rectangular shape that offers better longitudinal support, reducing pressure under the arch of the foot.

Evo" protection: replaceable protective pads on the outer corners to protect the aluminum body from violent impacts.

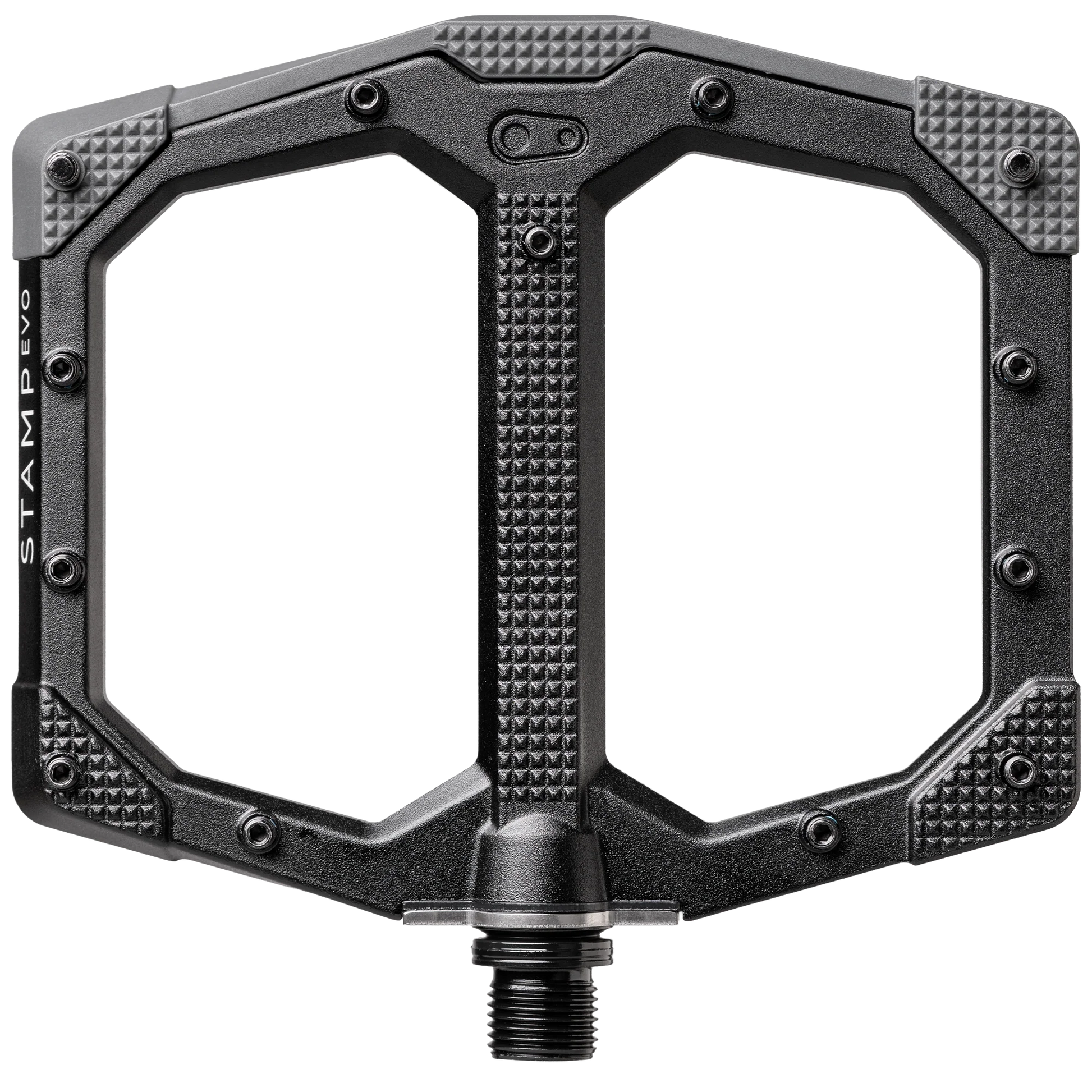

Adjustable concavity: 13 lugs per side. By using the longer pimples on the edges, we create a natural "bowl" that locks the shoe in place.

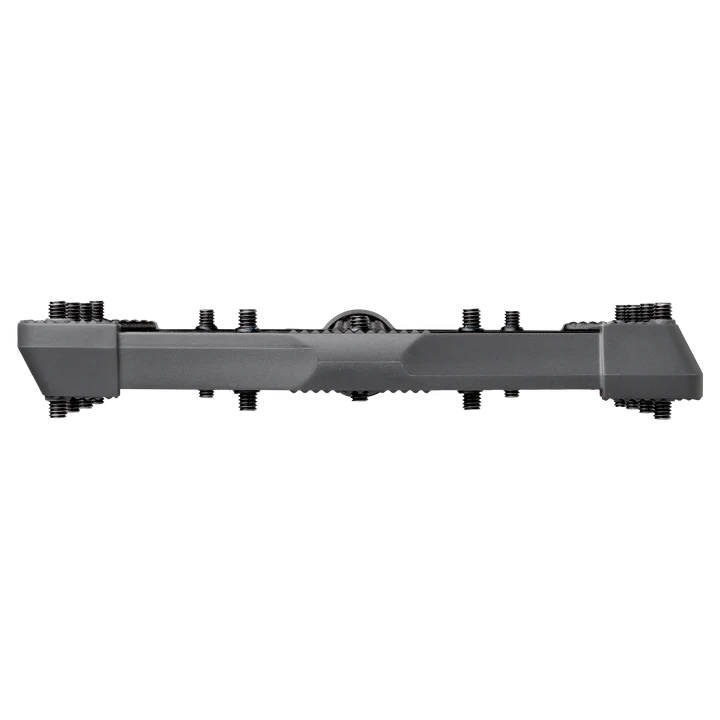

11 mm profile: an incredibly slim profile that brings the foot closer to the pedal axle for better control and less risk of touching the ground.

Informations techniques

Body: High-quality forged 6061-T6 aluminum.
Dimensions (Large): 114 mm wide x 117 mm long.
Weight: approx. 445 g per pair.
Axle: Forged SCM 435 chromoly steel for maximum strength.
Sealing: Double seal system inside and out to protect bearings from mud and high-pressure washing.
5-year warranty.

Informations prix

*Supplier suggested retail price in March 2026
