DT SWISS

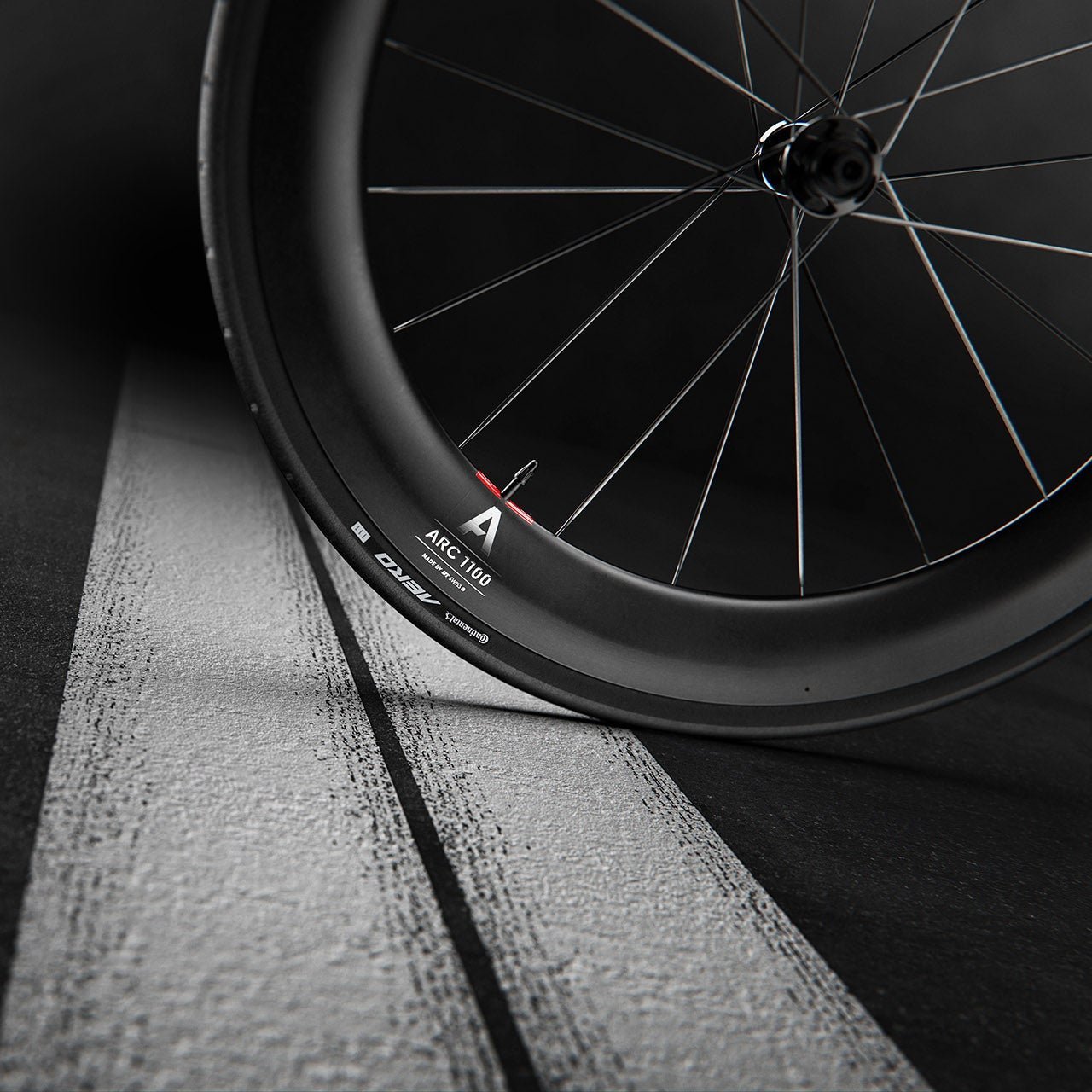

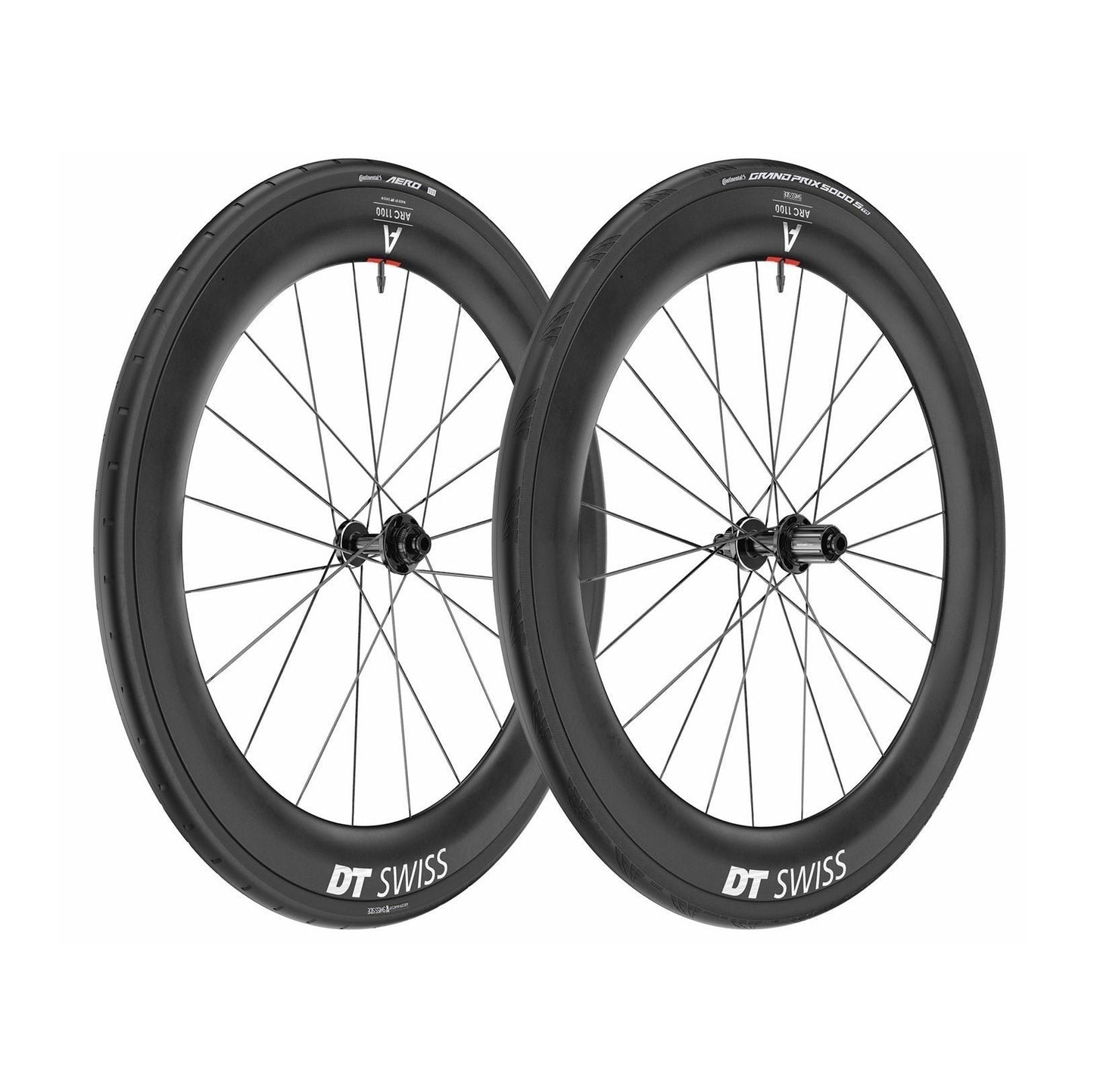

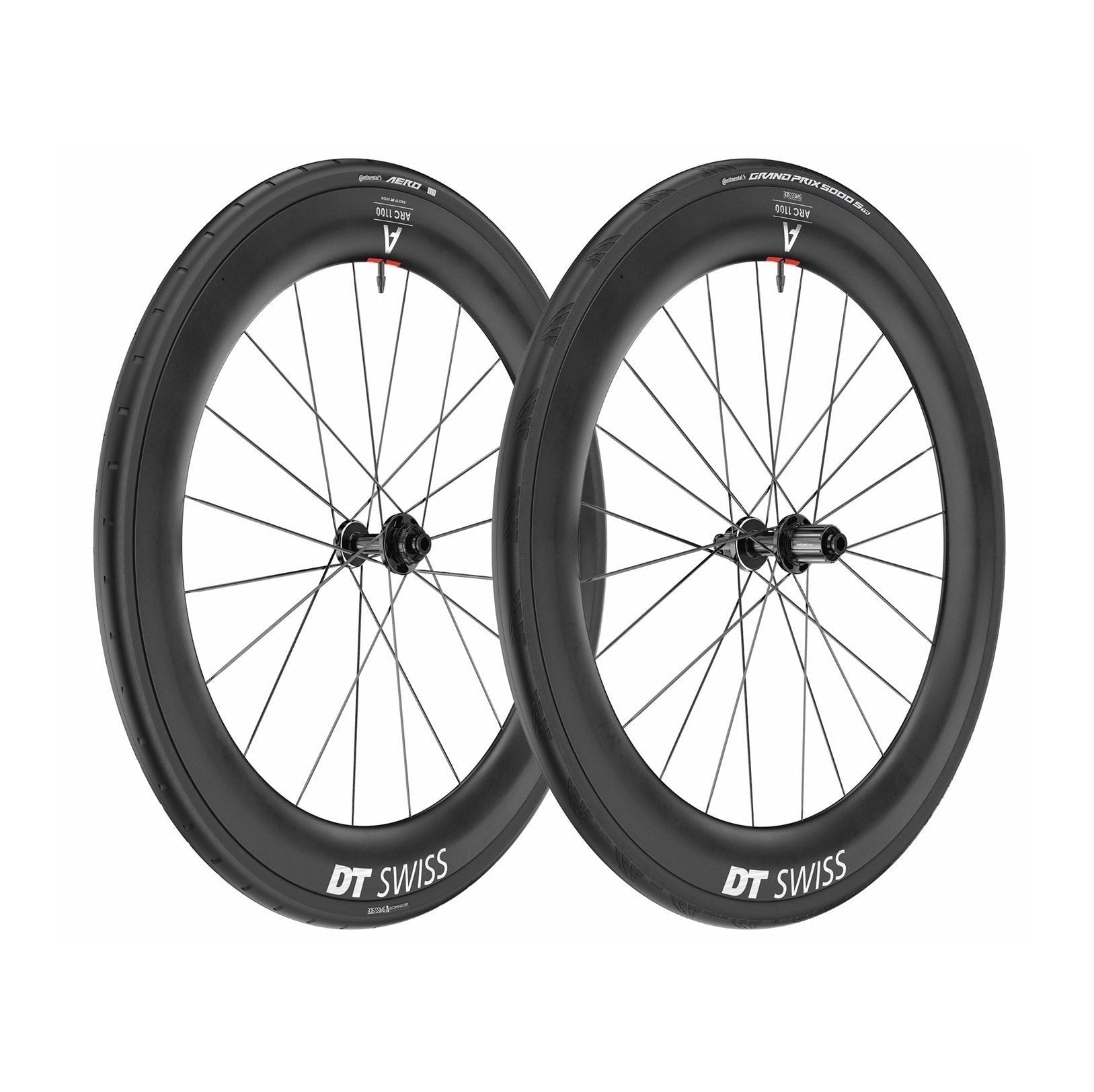

DT SWISS ARC 1100 DICUT WTS 55 Tubeless Ready Wheels (Center Lock)

The DT SWISS ARC 1100 DICUT WTS 55 wheelset embodies the ultimate in aerodynamics and performance for demanding cyclists. With a rim height of... Read more
Regular price 30 885 SEK
Regular price 32 632 SEK Sale price 30 885 SEK
-10%
View full details

Description

The DT SWISS ARC 1100 DICUT WTS 55 wheelset embodies the ultimate in aerodynamics and performance for demanding cyclists. With a rim height of 55 mm and an internal width of 22 mm, they are perfectly compatible with the 29 mm AERO 111 clincher tire, optimizing air resistance while ensuring remarkable stability at high speed.

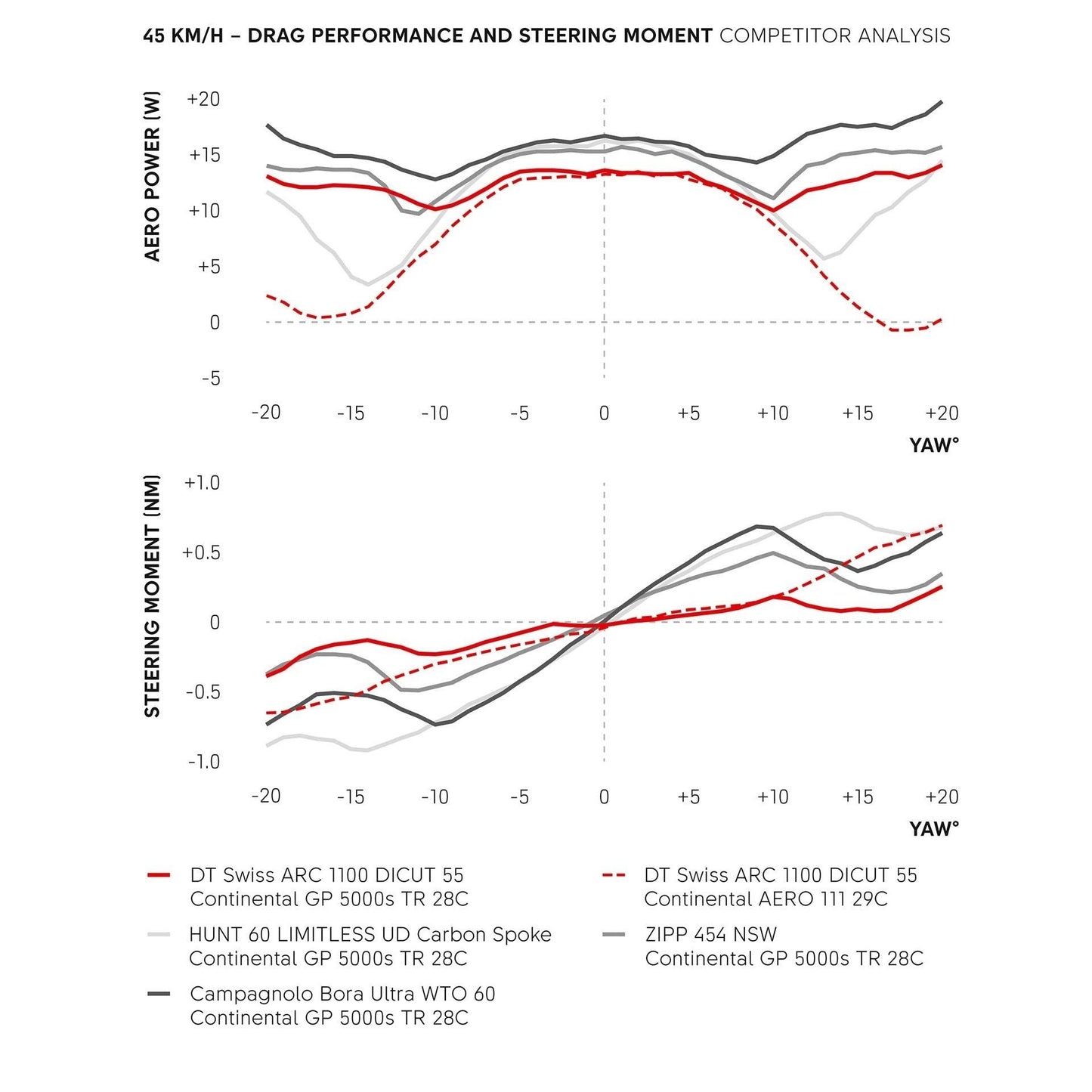

The result of collaboration with SWISS SIDE's aerodynamics experts, the wheel features the AERO+ rim profile, which reduces drag and steering torque. The result: optimum control even in windy conditions, and maximum propulsion efficiency.

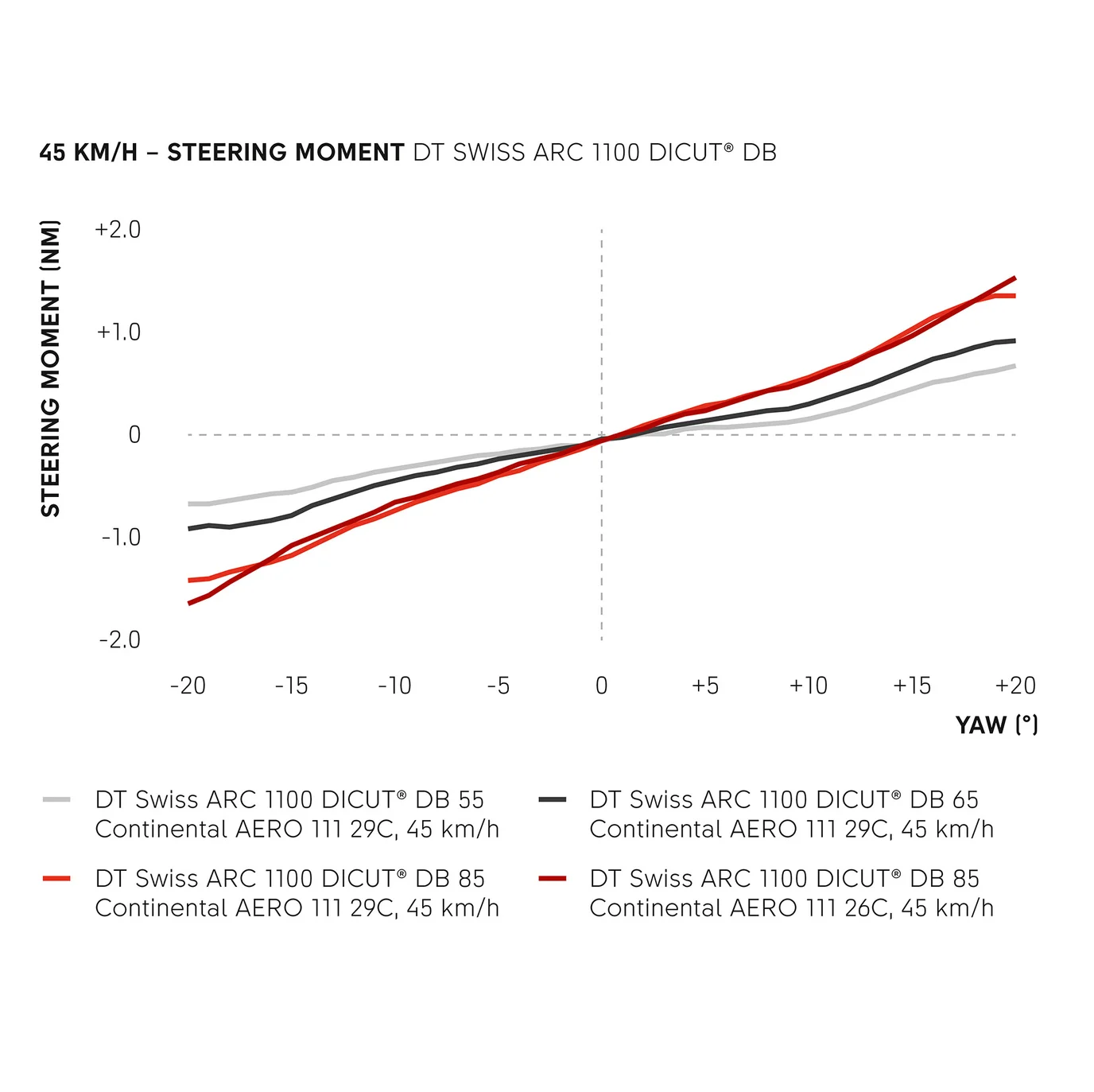

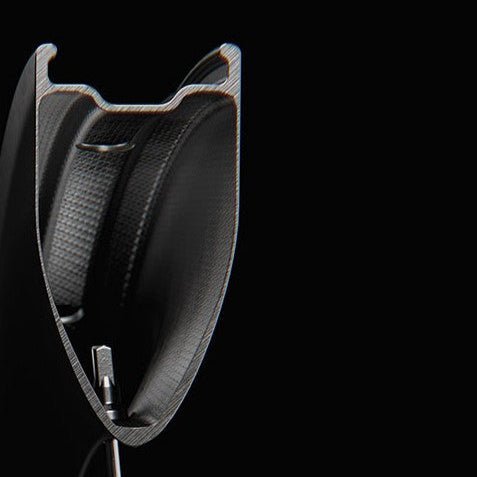

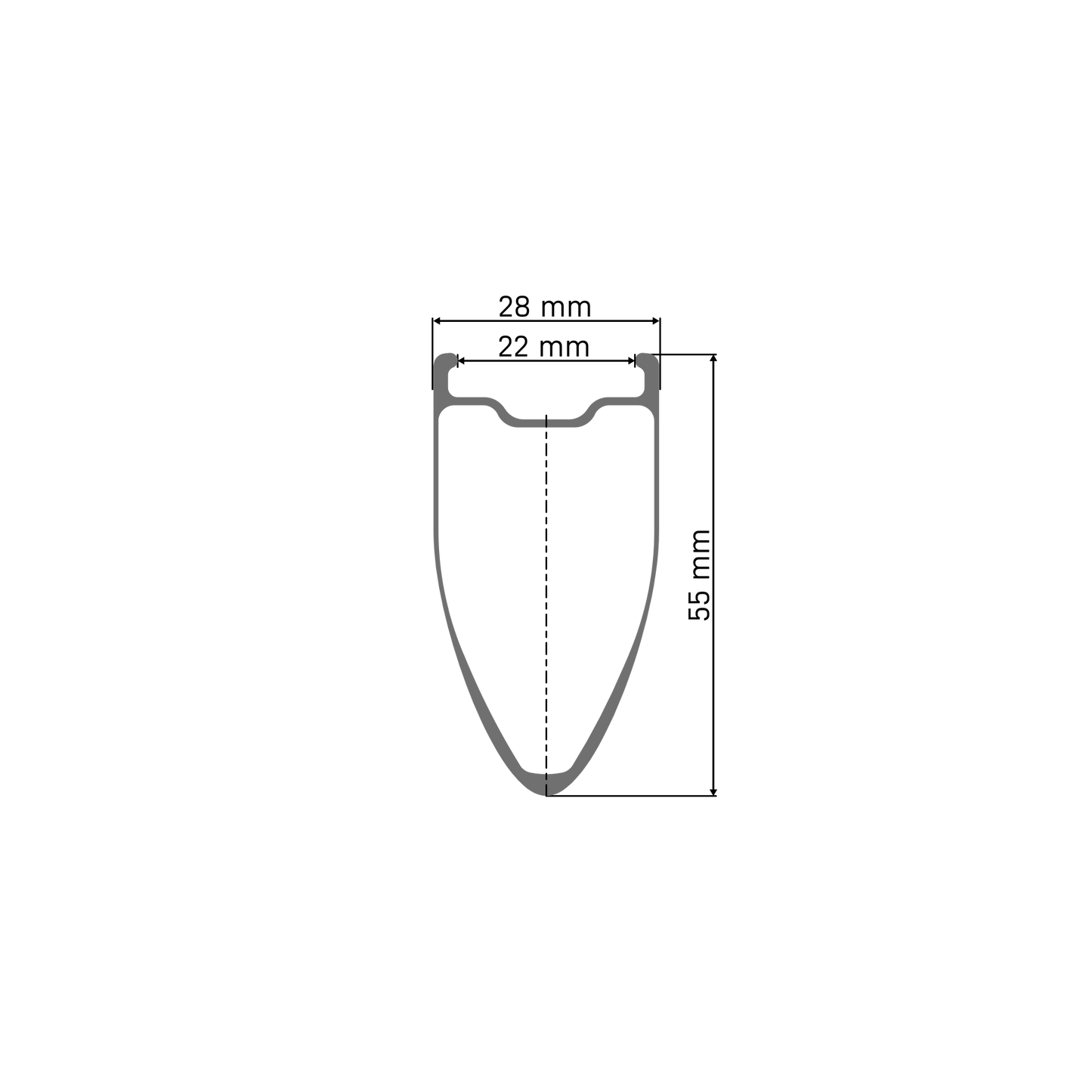

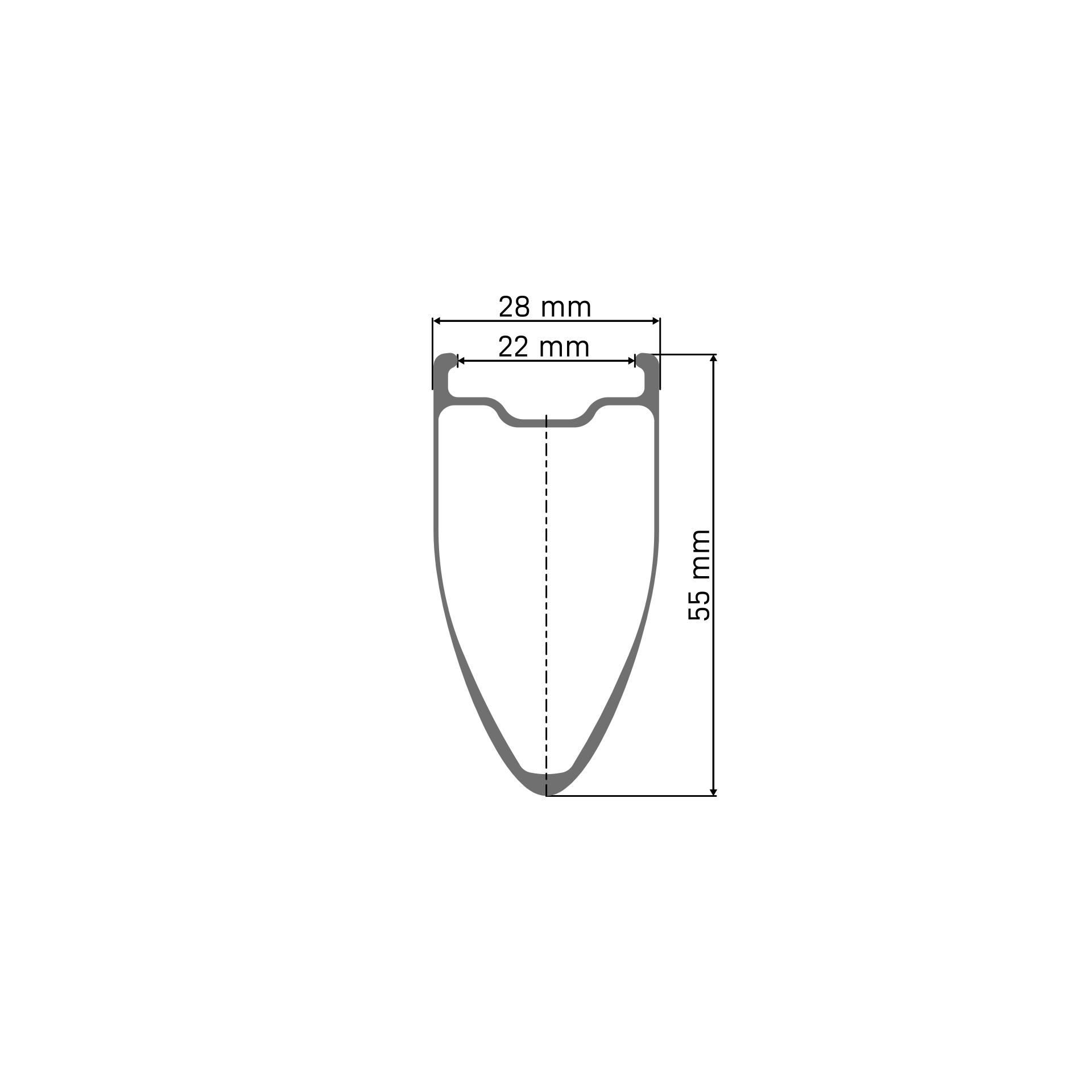

The V-shaped rim plays a key role in reducing frontal drag. It compensates for the increase in frontal surface area due to the wider internal width, improving overall aerodynamic performance. This design also ensures low steering moment, providing a smooth riding feel, even in crosswinds or extreme yaw angles.

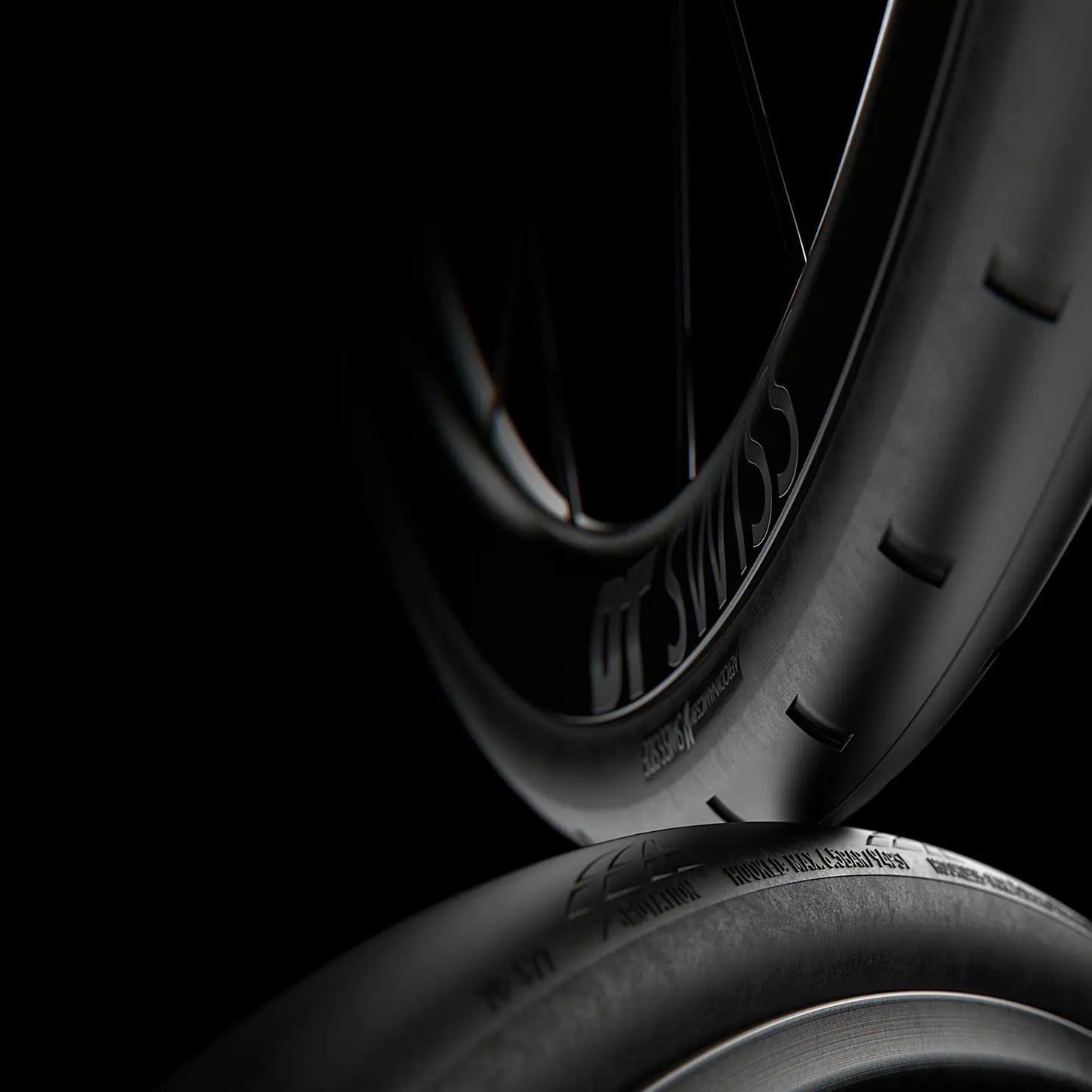

Available in Tubeless Ready (Center Lock) version, the ARC 1100 Dicut is offered in an aerodynamically optimized WTS (Wheel-Tire System) configuration. It comes fitted with a 30 mm Continental GP 5000 STR rear tire and a 29 mm AERO 111 front tire. By choosing the perfectly integrated AERO 111 tire, aerodynamic drag is reduced, while offering predictable, stable handling - an invaluable asset during sprints or fast descents. The "sailing effect", a phenomenon where the wind becomes an advantage, is mastered here to improve speed without compromising handling.

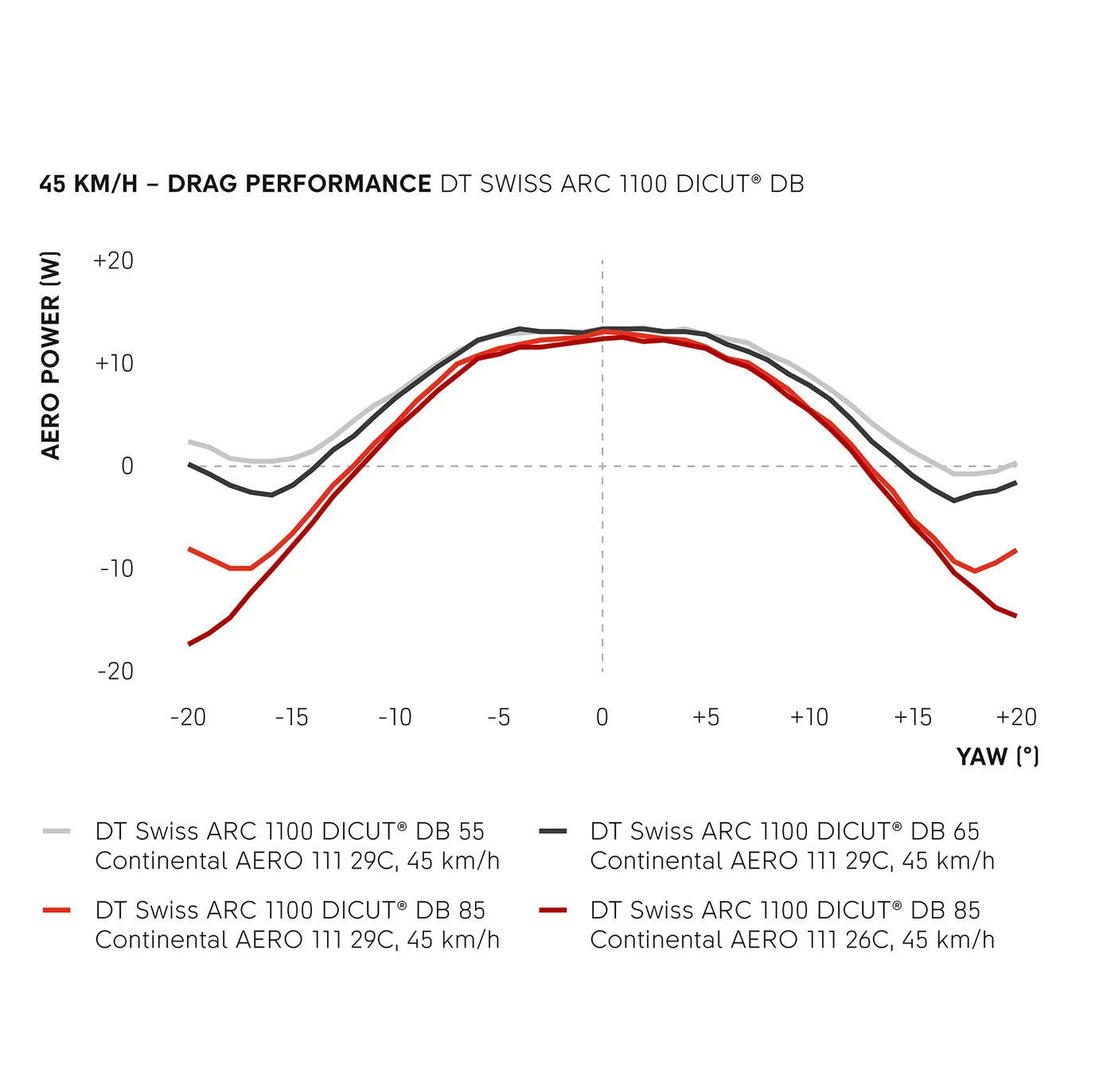

In addition, the 55 mm version is ideal for all-round cyclists looking for speed on different types of terrain while retaining good climbing ability. DT Swiss also offers 38 mm, 65 mm and 85 mm variants to suit all riding styles, from hilly courses to flat time trials.

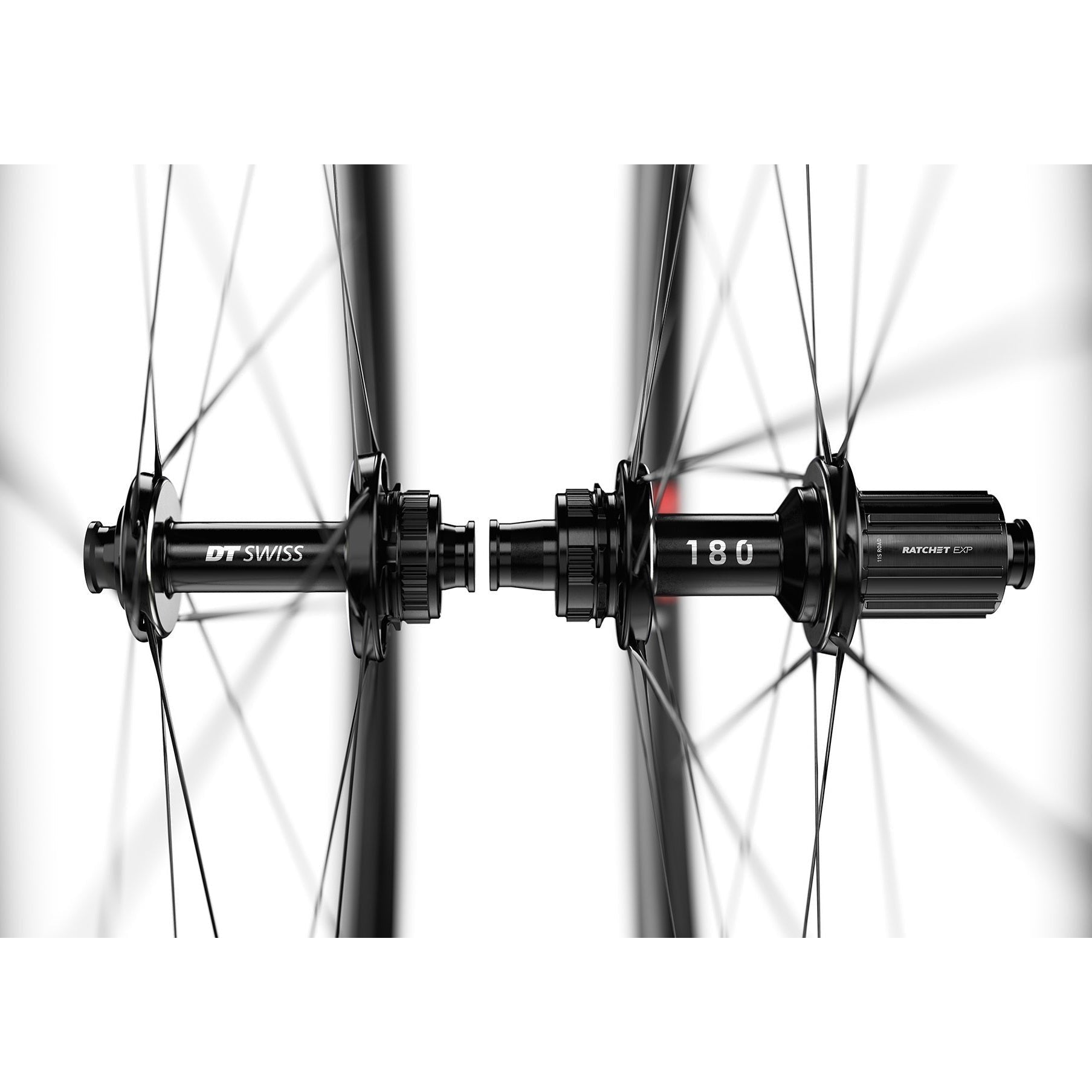

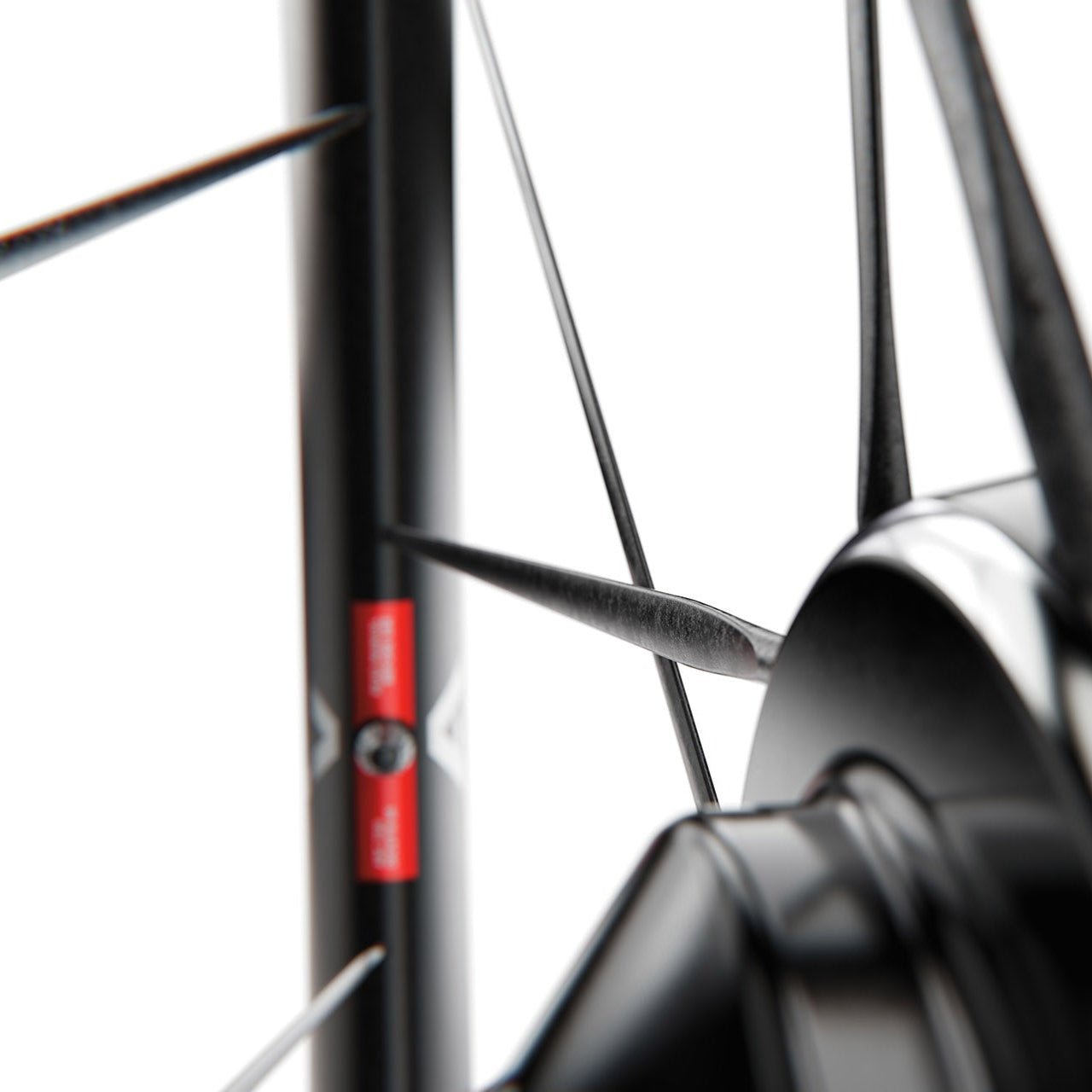

It's equipped with the new DT Swiss Aero spokes, a streamlined 180 DICUT hub, and SINC Ceramic bearings for unrivalled smoothness.

In short, ARC 1100 DICUT WTS 55 wheels combine optimized width, advanced aerodynamic profile and impeccable stability. They represent a top choice for cyclists seeking performance, comfort and control in all conditions.

Manufacturer's Manual + Rim/Tire & Pressure Compatibility Chart

Manual DICUT Models

Tubeless Mounting Manual

Ref: 15688771043708

Informations techniques

┘GÉNÉRAL
Catégorie : Route
Poids Arrière : 1118 g pneu inclus
Poids Avant : 1001 g pneu inclus
Charge Max. : 110 kg
Classification ASTM : 1
Recommandé E-Bikes : Non

┘JANTE
Matière : Carbone
Interface pneus : Hooked/Crochet tubeless TC
Diamètre de roue : 622mm / 29" / 700c
Hauteur de jante : 55mm
Largeur interne : 20mm
Largeur externe : 28mm

Pneus inclus
CONTINENTAL GP5000 STR 30-622
CONTINENTAL AERO 111 29-622 (Design & Innovation Award édition 2025)
Chambre à air incluse
CONTINENTAL TPU TUBE SV

┘MOYEU
Type de Moyeu : 180
Système d'axe : 12mm Thru axle
Entraxe Arrière : 142mm
Entraxe Avant : 100mm
Fixation de disque : Center Lock
Corps de Roue Libre : Shimano HG Light 5 ASL S11
Roue Libre : Ratchet EXP 36
Roulements céramiques

┘RAYONS ET ECROUS
Rayons arrière : 24 x2-cross
Rayons Avant : 20 x2-cross
DT aerolite® II t-head
Type de rayonnage : Two-cross (1:1)
Ecrous : DT Pro Lock hidden aluminum

┘MONTAGE & TECHNOLOGIES

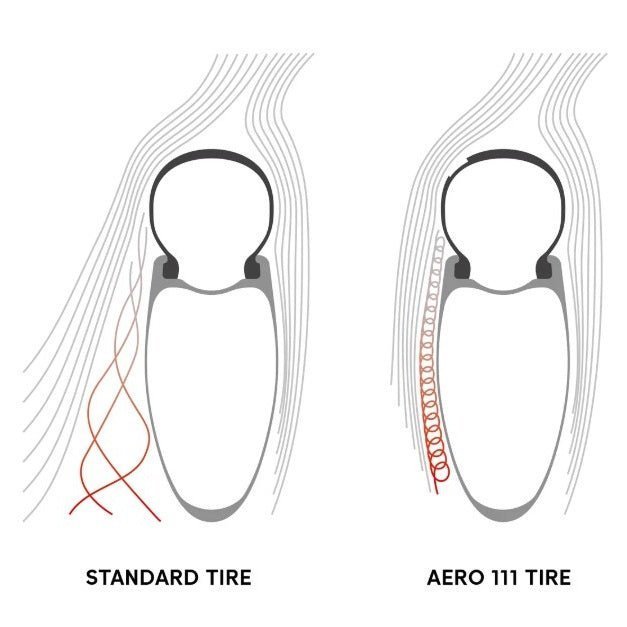

►Technologie WTS : la roue et le pneu ont été considéré comme un seul ensemble : le Wheel Tire System. Le modèle AERO 111, spécifique avant est parfaitement adapté à la jante Aero et affichant une optimisation aérodynamique sans précédent. La surface comprend 48 cavités régulièrement réparties sur son ensemble, appelées générateurs de vortex. Ces derniers permettent de contrôler les perturbations du flux d’air sur la roue avant; et ainsi de réduire efficacement la traînée de l’ensemble.
► GAMME AÉRO : La gamme Aero de DT Swiss maximise l’aérodynamisme avec des jantes profilées et des rayons innovants, offrant des performances élevées et une stabilité exceptionnelle, idéales pour atteindre des vitesses optimales ;
► DICUT : Le concept DICUT de DT Swiss allie des moyeux haute performance, des rayons optimisés et une aérodynamique avancée. Conçu pour la vitesse et l’efficacité, il maximise la rigidité latérale et le transfert de puissance sur route et piste ;

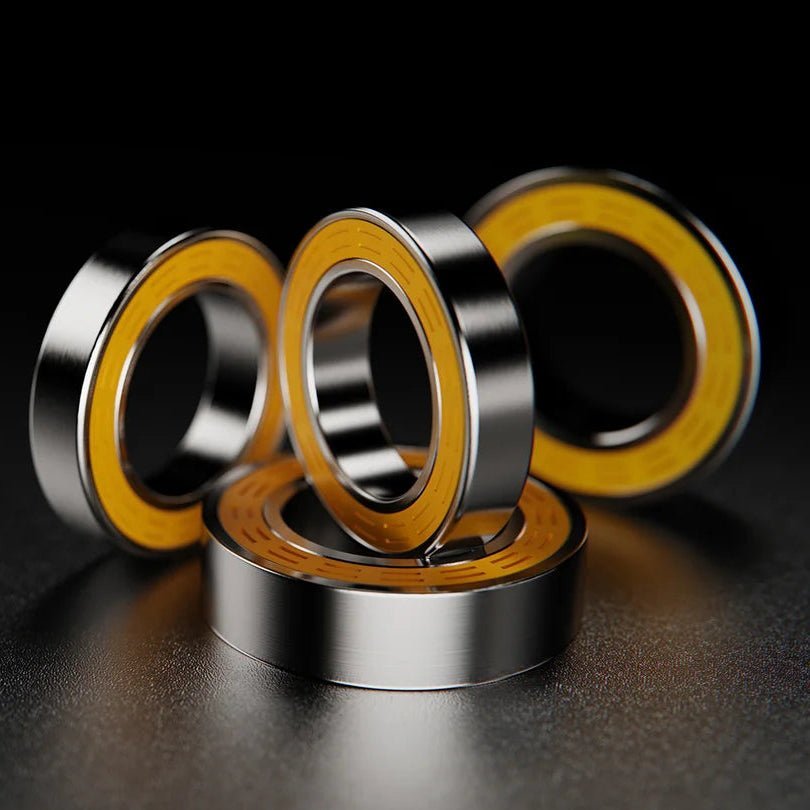

► SINC CERAMIC : La technologie SINC Ceramic de DT Swiss utilise des roulements en céramique haute performance pour réduire la friction, améliorer la fluidité de rotation et augmenter la durabilité, offrant ainsi un gain d’efficacité et une transmission de puissance optimale ;
► AERO+ : La technologie Aero+ de DT Swiss optimise l’aérodynamisme et la stabilité en réduisant la traînée et en améliorant la maniabilité. Elle équilibre parfaitement la résistance à l’air, l’efficacité du pédalage et le contrôle par vent latéral ;

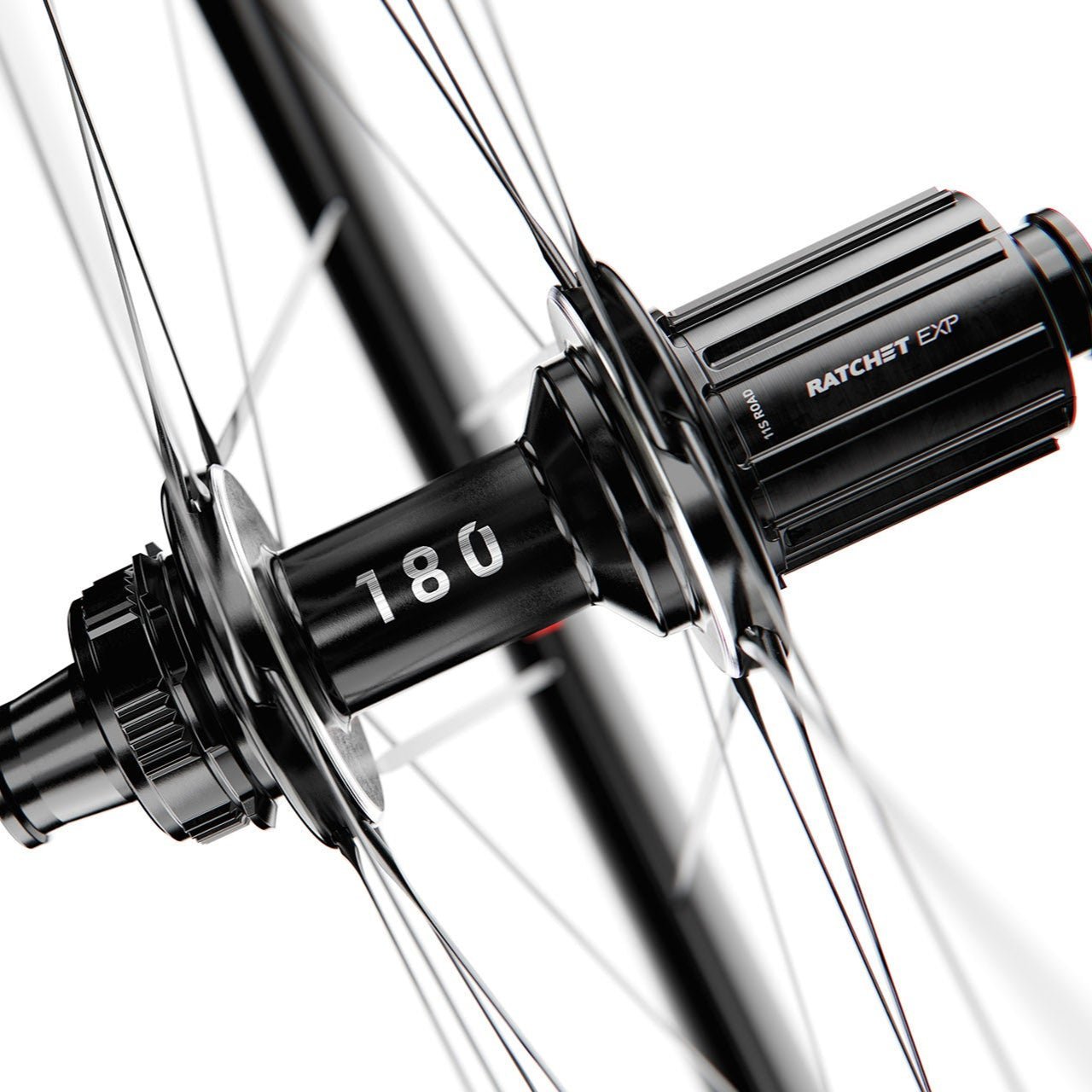

► RATCHET EXP :La technologie de corps de roue libre Ratchet EXP de DT Swiss optimise l'engagement du moyeu en intégrant un seul ressort conique, réduisant le poids et augmentant la durabilité. Elle assure un transfert de puissance efficace et un entretien simplifié. ;
► SAVOIR FAIRE ARTISANAL : Fabrication à la main, garantie dé bénéficier de tout le savoir faire DT Swiss ;

┘INCLUS
Fond de jante : Rouleau tubeless 25mm

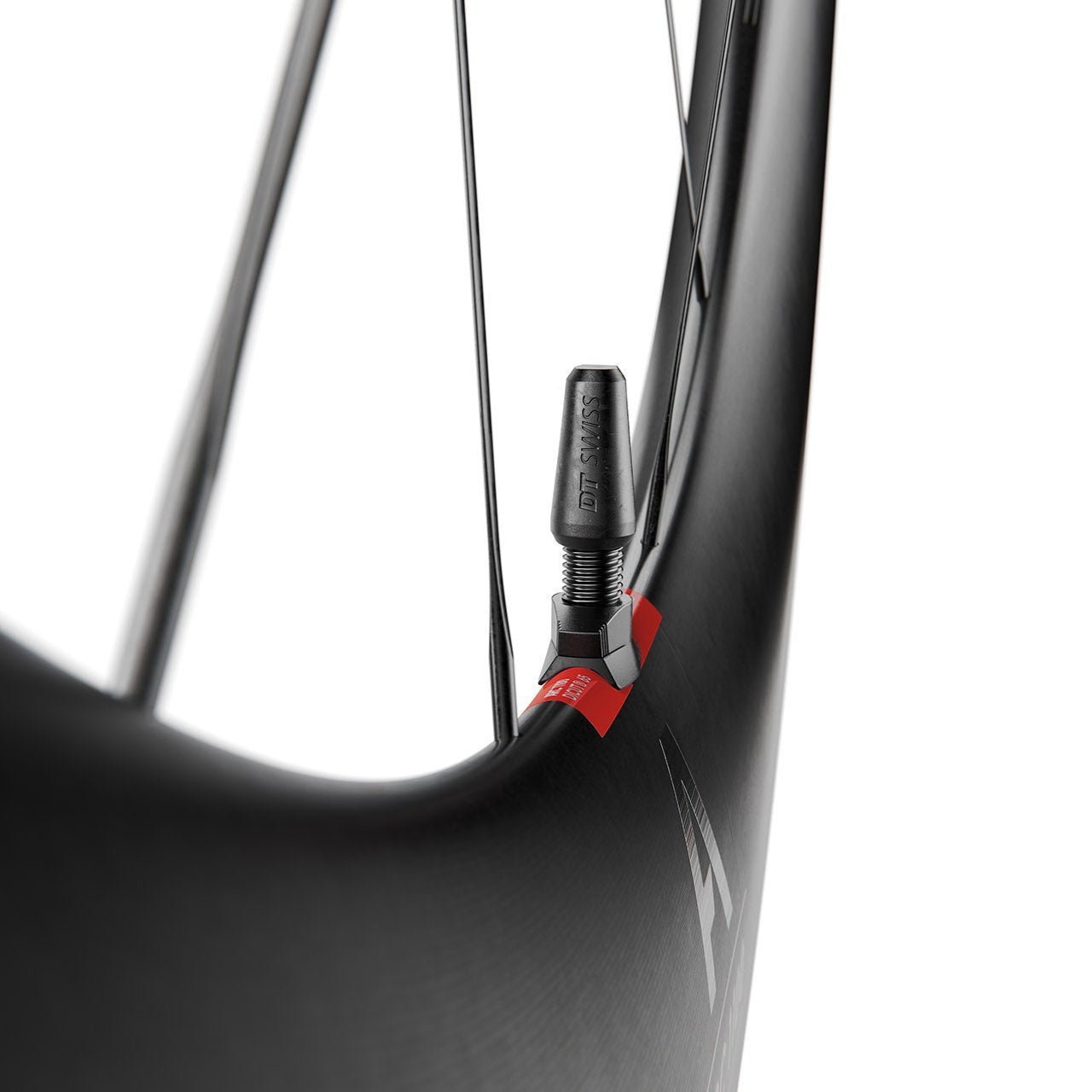

Valves : TL alu noir 49-65 mm / Sticker de protection de valve
Corps de roue libre Sram XDR.
Housses de roues

┘RÉFÉRENCES DE CONVERSIONS
• Roue Arrière
► Adaptateurs pour Shimano HG / QR : HWGXXX00S7446S ;
► Kit XDR / QR : HWYCBL00S5402S ;
► Kit XDR / 12x142 : HWYCBL00S5383S ;
► Adaptateurs pour XDR / QR : HWGXXX00S2760S ;
► Kit Microspline / 12x142 : HWYCBL00S1959S ;
► Adaptateurs pour Microspline / QR : HWGXXX00S5623S ;
► Kit Campagnolo N3W / 12x142 : HWYABL00S5705S ;
► Kit Campagnolo / QR : HWYABL00S7073S ;
► Kit Campagnolo / 12x142 : HWYABL00S7074S ;
► Adaptateurs pour Campagnolo / QR : HWGXXX00S2766S ;
► Adaptateurs pour Système DT Swiss Thru Bolt : HWGXXX0006560S ;
► Adaptateurs pour Shimano HG / 12x135 : HWGXXX0007569S ;
• Roue Avant
► Adaptateurs pour QR : HWGXXX0000051S.
