DT SWISS

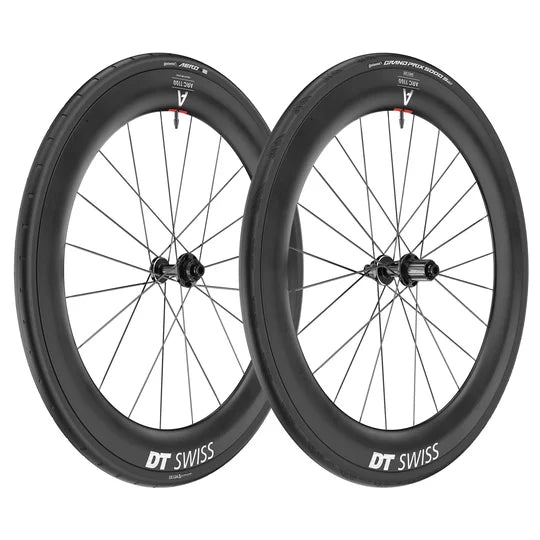

Pair of DT SWISS ARC 1100 DICUT WTS 85 Tubeless Ready Wheels (Center Lock)

La pair of wheels DT SWISS ARC 1100 DICUT WTS 85 wheels embody the ultimate in aerodynamics and performance for demanding cyclists. With a... Read more
Regular price 33 194 SEK
Regular price Sale price 33 194 SEK
View full details

Description

La pair of wheels DT SWISS ARC 1100 DICUT WTS 85 wheels embody the ultimate in aerodynamics and performance for demanding cyclists. With a rim height of 85 mm and an internal width of 22 mm, they are perfectly compatible with the 26 mm AERO 111 tire, optimizing air resistance while ensuring outstanding stability at high speed.

The result of collaboration with the aerodynamics experts at SWISS SIDEthe wheel incorporates the AERO+ RIM PROFILErim profile, which reduces drag and steering torque. The result: optimum control even in windy conditions, and maximum propulsion efficiency.

The V-shaped rim plays a key role in reducing frontal drag. It compensates for the increase in frontal surface area due to the wider internal width, improving overall aerodynamic performance. This design also ensures low steering moment, providing a smooth riding feel, even in crosswinds or extreme yaw angles.

Available in Tubeless Ready (Center Lock)version, the ARC 1100 Dicut is also available in a WTS (Wheel-Tire System)configuration, optimized for aerodynamics. It comes fitted with a 28-mm Continental GP 5000 STR rear tire and a 26-mm AERO 111 front tire. By choosing the perfectly integrated AERO 111 tire, aerodynamic drag is reduced, while providing predictable, stable handling - a valuable asset when sprinting or descending fast. The "sailing effect", a phenomenon where the wind becomes an advantage, is mastered here to improve speed without compromising handling.

What's more, the 85 mm version is ideal for cyclists who want to take the wind out of their sails. the lead in the most prestigious triathlon: when the fastest configuration is needed to take the lead in the most competitive Groupesets in your next triathlon or time trial. These wheels, ideally suited to 28/29 and 25/26 mm clinchers, find their best ally in the AERO 111 tire to deliver the best aerodynamic performance.. DT Swiss also offers 38mm, 55mm and 65mm variants to suit all riding styles, from hilly courses to flat time trials.

Equipped with the new DT Swiss Aero spokesspokes 180 DICUT hub hub and SINC Ceramic bearings bearings for unequalled smoothness.

In short, ARC 1100 DICUT WTS 85 wheels combine optimized width, advanced aerodynamic profile and impeccable stability. They represent a top choice for cyclists seeking performance, comfort and control in all conditions.

Manufacturer's Manual + Rim/Tire Compatibility & Pressure Chart

Manual DICUT Models

Tubeless Mounting Manual

Ref: 15386099745148

Informations techniques

┘GENERAL
Category : Road
Pair weight with tires: 1207g rear and 1070g front.
Pair weight without clinchers: 892g rear and 785g front.
Max. load 110kg
ASTM classification: 1
Recommended E-Bikes: No
Reference Manufacturer av+ar : WARC110AIDXCA27469 + WARC110NIDJCA27470

┘JANTE
Material : Carbon
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 85mm
Internal width: 22mm
External width: 32mm

Tire included
CONTINENTAL GP5000 STR 28-622 rear and
CONTINENTAL AERO 111 26-622 front (Design & Innovation Award edition 2025)
Inner tubes included
CONTINENTAL TPU TUBE SV

┘MOYEU
Hub type: 180 Dicut
Axle system: 12mm Thru axle
Rear center distance: 142mm rear and 100mm front
Disc mounting: Center Lock
Freewheel body: Shimano HG Light 5 ASL S11
Freewheel: Ratchet EXP 36
Ceramic bearings

┘ NIPPLES AND NUTS
Front spokes: 20 x2-cross
Rear spokes: 24 x2-cross
DT aerolite® II t-head
Spoking type: Two-cross (1:1)
Nuts : DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
►WTS technology: wheel and tire have been considered as a single unit: the Wheel Tire System. The front-specific AERO 111 is perfectly matched to the Aero rim, displaying unprecedented aerodynamic optimization. The surface comprises 48 cavities evenly distributed throughout, known as vortex generators. These help control airflow disturbances on the front wheel, effectively reducing overall drag.
► AERO RANGE: DT Swiss's Aero range maximizes aerodynamics with streamlined rims and innovative spokes, offering high performance and exceptional stability, ideal for reaching optimum speeds ;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimized spokes and advanced aerodynamics. Designed for speed and efficiency, it maximizes lateral stiffness and power transfer on Road and Track ;
► SINC CERAMIC: DT Swiss's SINC Ceramic technology uses high-performance ceramic bearings to reduce friction, improve rotational smoothness and increase durability, offering increased efficiency and optimal power transmission;
► AERO+: DT Swiss's Aero+ technology optimizes aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedaling efficiency and crosswind control ;
► RATCHET EXP:DT Swiss's Ratchet EXP freewheel body technology optimizes hub engagement by integrating a single tapered spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance. ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how;

┘INCLUSIVE
Rim base: 25mm tubeless roll
Valve: Valve TL alu black 81-85 mm / Valve protection sticker
Sram XDR freewheel body.
Wheel cover

┘CONVERSION REFERENCES
- Front wheel
► Adapters for QR: HWGXXX0000051S.

- Rear wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S ;
► XDR kit / QR: HWYCBL00S5402S ;
► Kit XDR / 12x142 : HWYCBL00S5383S ;
► Adapters for XDR / QR: HWGXXX00S2760S ;
► Microspline kit / 12x142: HWYCBL00S1959S ;
► Adapters for Microspline / QR: HWGXXX00S5623S ;
► Campagnolo N3W kit / 12x142: HWYABL00S5705S ;
► Campagnolo kit / QR: HWYABL00S7073S ;
► Kit Campagnolo / 12x142 : HWYABL00S7074S ;
► Adapters for Campagnolo / QR: HWGXXX00S2766S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S ;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S ;
