DT SWISS

DT SWISS ARC 1400 DICUT 38 DISC Tubeless Ready Wheelset (Center Lock)

The DT SWISS ARC 1400 DICUT 38 DISC Wheelset features an optimised aerodynamic profile, reducing drag for increased performance, even in challenging conditions. Its... Read more
17,530.00 SEK
21,035.00 SEK 17,530.00 SEK
-20%
View full details

Description

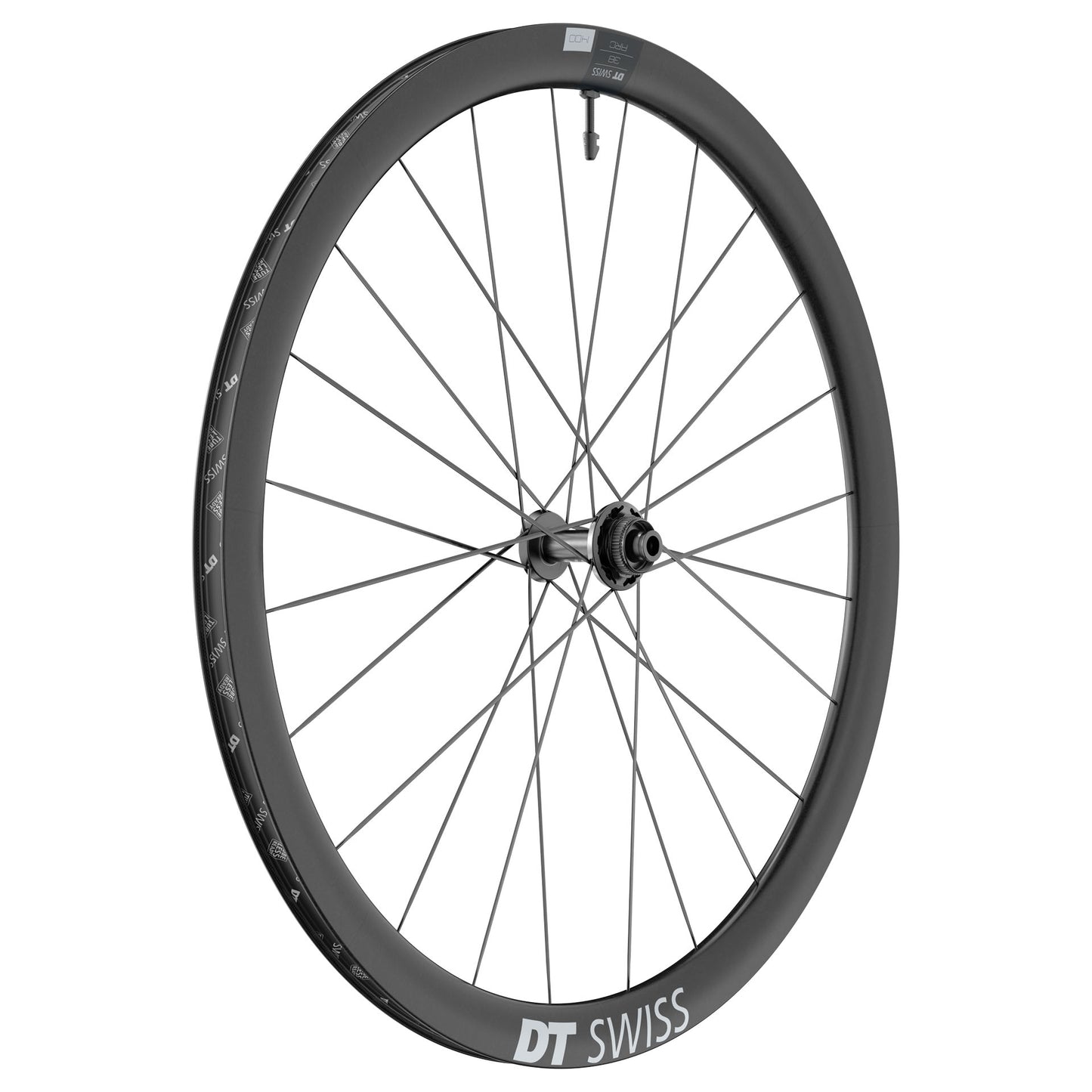

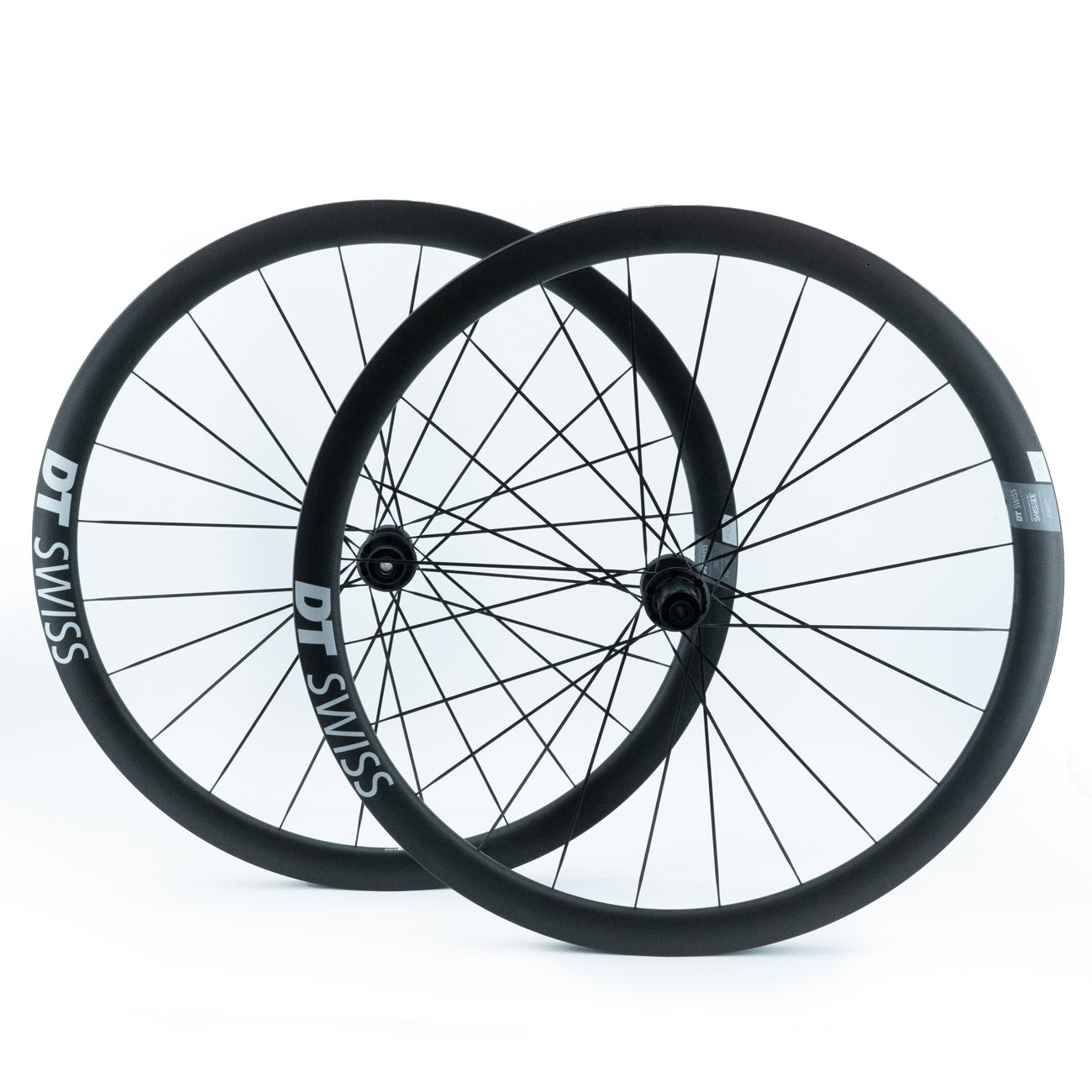

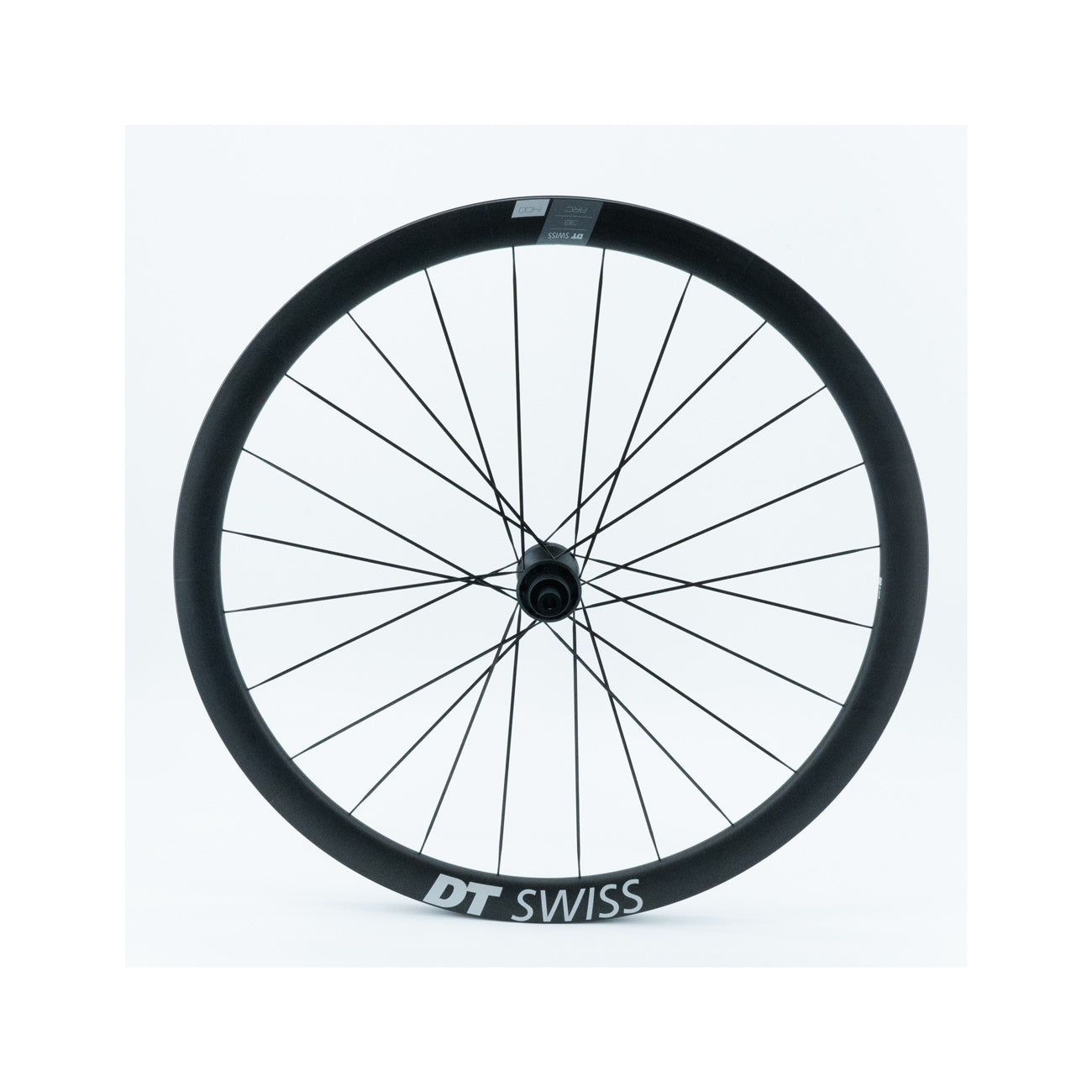

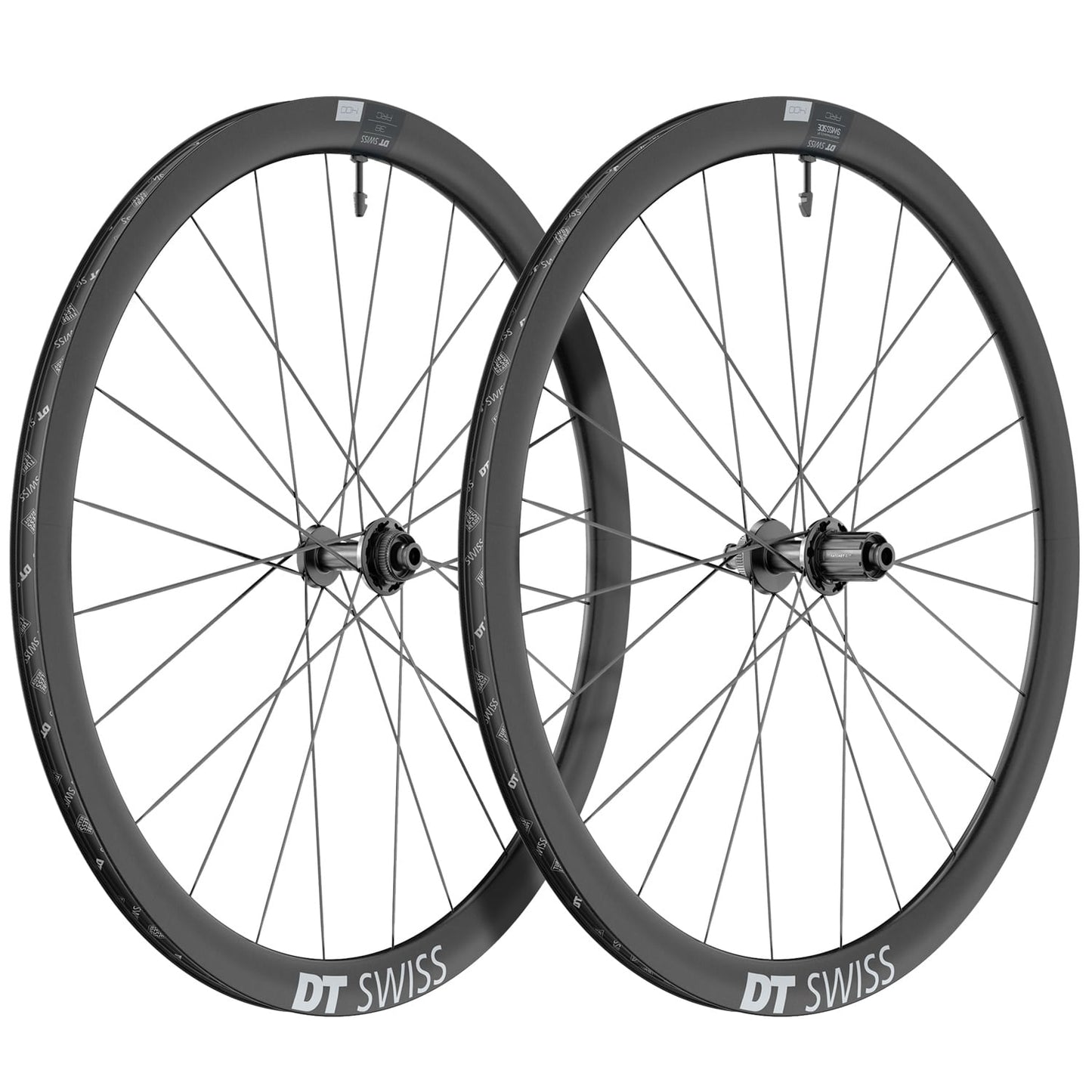

The DT SWISS ARC 1400 DICUT 38 DISC Wheelset features an optimised aerodynamic profile, reducing drag for increased performance, even in challenging conditions.

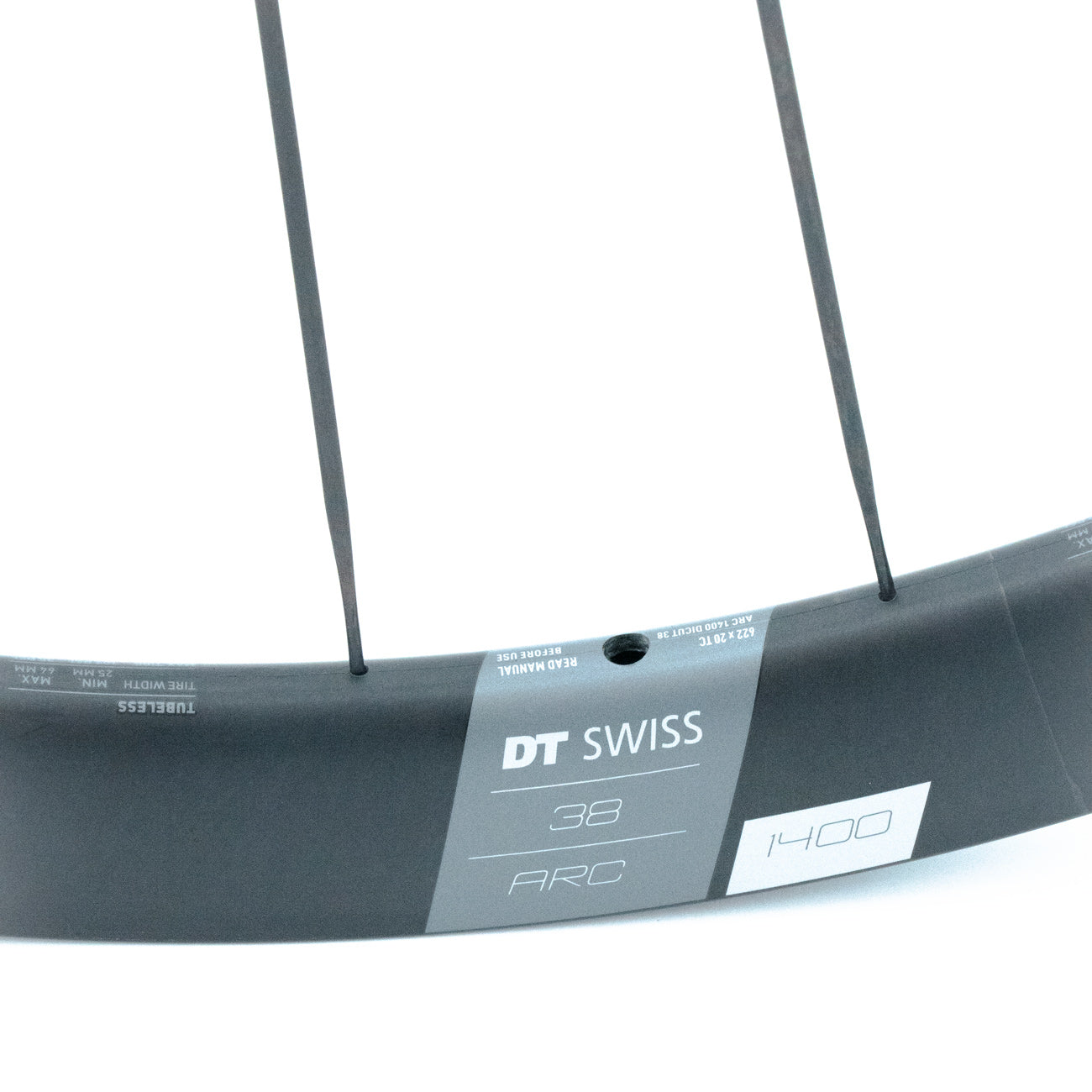

Its 38 mm rim height and lightweight design guarantee great efficiency on hilly or windy courses, offering excellent handling without any compromise on stiffness or braking.

This wheel features the Ratchet System EXP technology. This patented freehub system with high-precision ratchet rings guarantees maximum resistance to stress and reliability. Thanks to the "no tool" concept, maintenance is quick and simple.

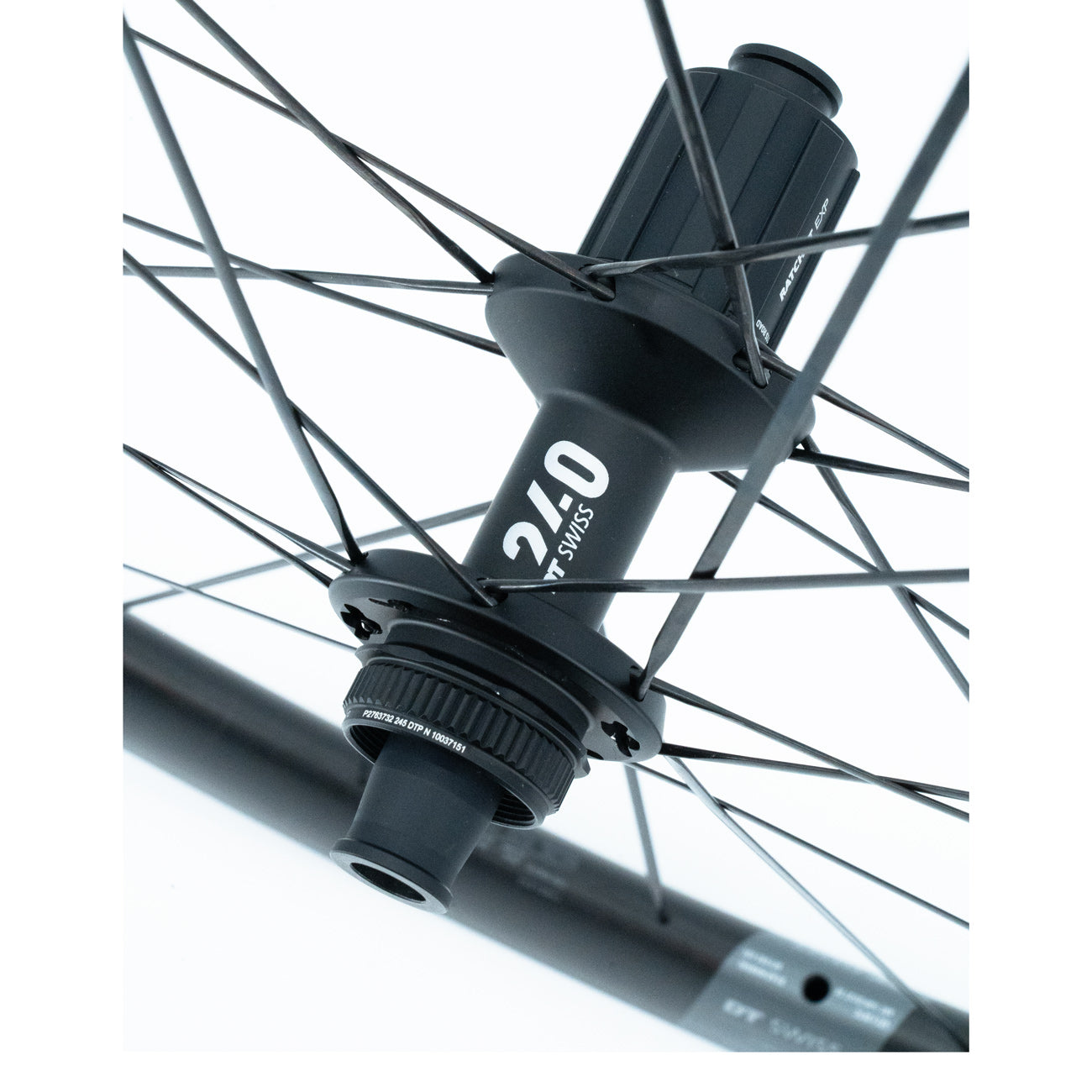

The premium bearings of the 240 hub offer low rolling resistance and extended durability. Tubeless Ready compatibility provides comfort and grip while minimising the risk of pinch flats.

Manufacturer Manual + Rim/Tyre Compatibility Chart & Pressures

DICUT Models Manual

Tubeless Assembly Manual

Ref: 9861919932765

Informations techniques

┘GENERAL
Category: Road
Pair Weight: 1371 g
Front Weight: 626 g
Rear Weight: 745 g
Max Load: 110 kg
ASTM Classification: 1
E-Bikes Recommended: No
Manufacturer Reference Front / Rear: WARC140AIDXCA22336 / WARC140NIDICA22337

┘RIM
Material: Carbon
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 38mm
Internal Width: 20mm
External Width: 26mm

┘HUBS
Axle System: 12mm Thru axle
Front Spacing: 100mm
Rear Spacing: 142mm
Disc Mount: Center Lock
Freehub Body: Shimano HG
Freehub: Ratchet EXP 36
Hub Type: 240

┘SPOKES AND NIPPLES
Front Spokes:
• Left: DT aero comp® II t-head
• Right: DT aero comp® II t-head
Rear Spokes:
• Left: DT aero comp® II t-head
• Right: DT aero comp® II t-head
Spoke Pattern: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: The DT Swiss Aero range maximises aerodynamics with profiled rims and innovative spokes, delivering high performance and exceptional stability, ideal for achieving optimal speeds;
► DICUT: The DT Swiss DICUT concept combines high-performance hubs, optimised spokes and advanced aerodynamics. Designed for speed and efficiency, it maximises lateral stiffness and power transfer on road and track;
► AERO+: DT Swiss Aero+ technology optimises aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedalling efficiency and crosswind control;
► RATCHET EXP: DT Swiss Ratchet EXP freehub technology optimises hub engagement by incorporating a single conical spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from the full DT Swiss expertise;

┘INCLUDED
Rim tape: 23mm tubeless roll
Black aluminium TL valve 36-48 mm / Valve protection sticker
SRAM XDR freehub body

┘CONVERSION REFERENCES
• Front Wheel
► Adapters for QR: HWGXXX0000051S;
• Rear Wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S;
► XDR / QR Kit: HWYABL00S5382S;
► XDR / 12x142 Kit: HWYABL00S5401S;
► Adapters for XDR / QR: HWGXXX00S2760S;
► Microspline / 12x142 Kit: HWYABL00S1960S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABL00S2993S;
► Campagnolo / QR Kit: HWYABL00S7073S;
► Campagnolo / 12x142 Kit: HWYABL00S7074S;
► Adapters for Campagnolo / QR: HWGXXX00S2766S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
;

Informations prix

*Supplier recommended retail price in February 2024
