• DT SWISS GRC 1400 SPLINE 30 CARBON DISC 700c Rear Wheel
1 1
DT SWISS

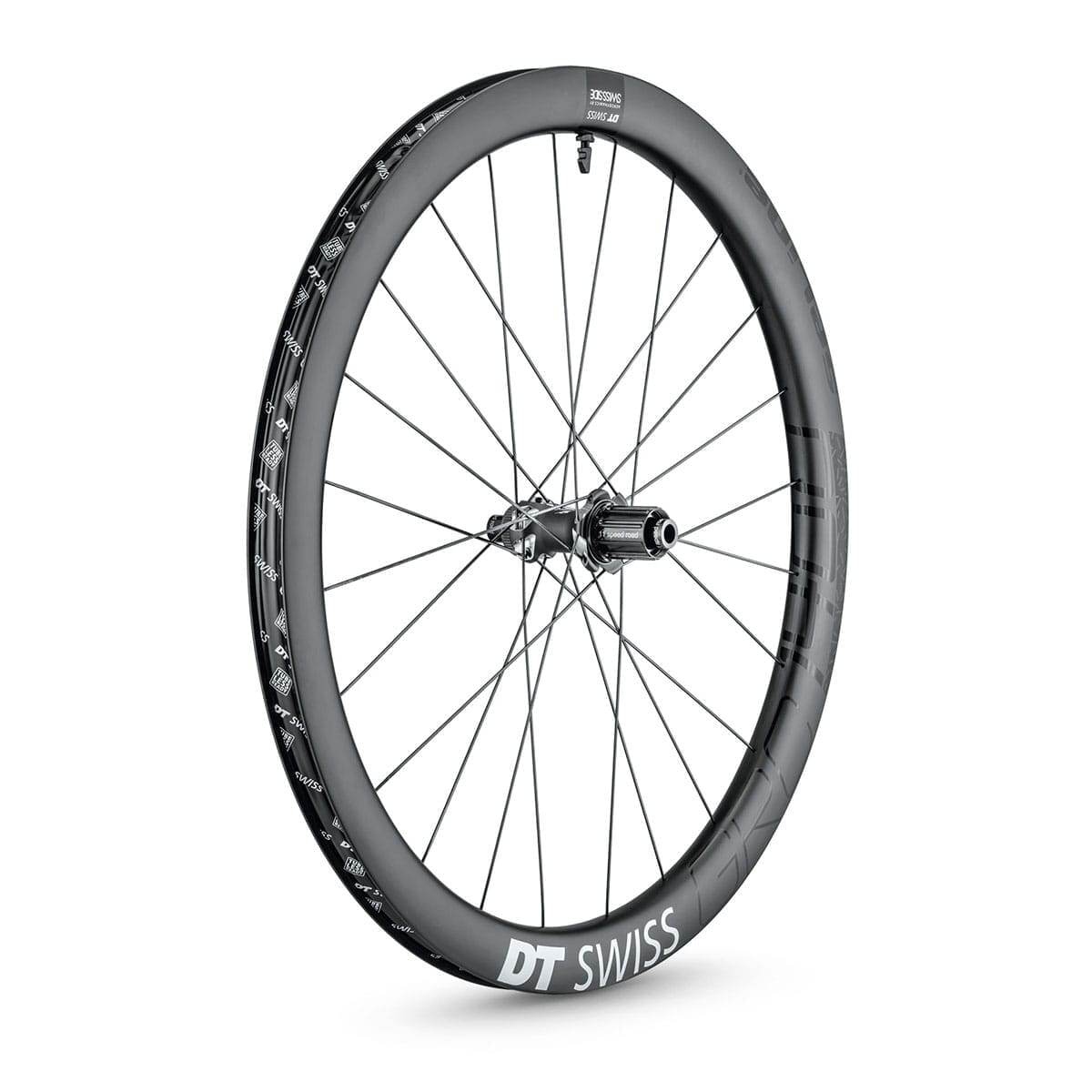

DT SWISS GRC 1400 DICUT 30 DISC Tubeless Ready Rear Wheel (Centerlock)

Réf. fabricant : WGRC140NIDICA19674
The DT SWISS GRC 1400 DICUT 30 DISC Rear Wheel is designed to push the limits of Gravel. With its robust and high-performance design,... Read more
11,748.00 SEK
11,748.00 SEK
View full details

Description

The DT SWISS GRC 1400 DICUT 30 DISC Rear Wheel is designed to push the limits of Gravel.

With its robust and high-performance design, it absorbs vibrations and clears obstacles with confidence. Its optimised 30 mm rim profile reduces steering torque, offering exceptional agility, ideal for long off-road adventures.

Fitted with the lightweight 240 hub DICUT and the Ratchet EXP freehub system, it ensures optimal power transfer and outstanding reliability. Its DT aero comp II spokes enhance stiffness and durability for maximum performance on all terrain.

Its raw, unvarnished design, resulting from an innovative manufacturing process, gives it a unique aesthetic and a weight saving. Ready to tackle technical trails and fast tracks, it accompanies you through every Gravel challenge with fluidity and responsiveness.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

DICUT Models Manual

Tubeless Fitting Manual

Ref: 7967883722918

Informations techniques

┘GENERAL
Category: Gravel
Manufacturer Weight: 775 g
Max. Load: 130 kg
ASTM Classification: 2
E-Bike Recommended: Yes (max. 32km/h or max. 250W)
Manufacturer Reference: WGRC140NIDICA19674

┘RIM
Material: Carbon
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 30mm
Internal Width: 24mm
External Width: 31mm

┘HUBS
Axle System: 12mm Thru axle
Spacing: 142mm
Disc Mount: Center Lock
Freehub Body: Shimano HG
Freehub: Ratchet EXP 36
Hub Type: 240

┘SPOKES AND NIPPLES
Left spokes: DT aero comp® II t-head
Right spokes: DT aero comp® II t-head
Lacing type: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► GRAVEL RANGE: The DT Swiss G range is specially designed for gravel riding, combining robustness, lightness and comfort. With rims optimised for wide tyres and tubeless compatibility, it guarantees grip and performance on varied terrain;
► DICUT: The DT Swiss DICUT concept combines high-performance hubs, optimised spokes and advanced aerodynamics. Designed for speed and efficiency, it maximises lateral stiffness and power transfer on road and track;
► RATCHET EXP: The DT Swiss Ratchet EXP freehub body technology optimises hub engagement by integrating a single conical spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim tape: 27mm tubeless roll
Black aluminium TL valve 26-35 mm / Valve protection sticker
SRAM XDR freehub body

┘CONVERSION REFERENCES
► Adapters for Shimano HG / QR: HWGXXX00S7446S;
► XDR / QR Kit: HWYABL00S5382S;
► XDR / 12x142 Kit: HWYABL00S5401S;
► Adapters for XDR / QR: HWGXXX00S2760S;
► Microspline / 12x142 Kit: HWYABL00S1960S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABL00S2993S;
► Campagnolo / QR Kit: HWYABL00S7073S;
► Campagnolo / 12x142 Kit: HWYABL00S7074S;
► Adapters for Campagnolo / QR: HWGXXX00S2766S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
;
