Description

Designed with internal light and charger routing, the ENVE ADVENTURE 1/5" fork fork boasts a sober design masking formidable efficiency. Designed in the Odgen workshops in Utah, it benefits from all ENVE's carbon know-how to be as reliable as it is efficient. This fork features a design specific to the Bikepacking.

At 575 g on the scale, the ENVE G-Series makes no compromise between lightness, reliability and rigidity. Far from neglecting safety, this weight is achieved thanks to the ENVE technology. Removable Bladders technology used by the American brand to eliminate carbon irregularities inside the fork, thus avoiding unnecessary excess material.

Ref: 9254626296157

Points forts

Pack of three accessory holders

Mudguard and luggage rack supports

Removable and reversible drop-out chips for adjusting :

rake

axis-to-crown height

Internal routing for dynamo (powering lighting and electronic devices)

Axis compatibility: 12 x 100 mm

Compatible disc sizes: 160 mm and 180 mm

Informations techniques

► Product reference
SKU: 200-2010-001


► Offset position 49 mm
○ Material: Carbon
○ Accessory brackets: Yes (M5 screws)
○ Weight: 575 g
○ Pivot length: 350 mm
○ Tapered pivot: 1"1/8 → 1"1/2
○ Offset (rake): 49 mm
○ Crown axle: 398 mm
○ Brake type: Disc
○ Brake mounting: Flat Mount
○ Low-loader capacity: 18 kg (40 lbs)
○ Front luggage rack capacity: 10 kg (22 lbs)
○ 3-pack support capacity: 6 kg per side (2 kg x 3 screws)
○ Axis compatibility: 12 x 100 mm
○ Compatible discs: 160 mm / 180 mm
○ Maximum tire clearance: 29" x 2.1" (700 x 53) / 27.5" x 2.4"

► Offset position 55.5 mm
○ Material: Carbon
○ Accessory brackets: Yes (M5 screws)
○ Weight: 575 g
○ Pivot length: 350 mm
○ Tapered pivot: 1"1/8 → 1"1/2
○ Offset (rake): 55.5 mm
○ Crown axle: 406 mm
○ Brake type: Disc
○ Brake mounting: Flat Mount
○ Low-loader capacity: 18 kg (40 lbs)
○ Front luggage rack capacity: 10 kg (22 lbs)
○ 3-pack support capacity: 6 kg per side (2 kg x 3 screws)
○ Axis compatibility: 12 x 100 mm
○ Compatible discs: 160 mm / 180 mm
○ Maximum tire clearance: 29" x 2.3" (700 x 58) / 27.5" x 2.6"

► Tightening torques
○ Pivot (steerer tube): 5.5 Nm
○ Axis: 8 Nm
○ Brake screws: according to brake manufacturer
○ Accessory screws: 2 Nm

▲ Important note
Pivot not compatible with star nuts

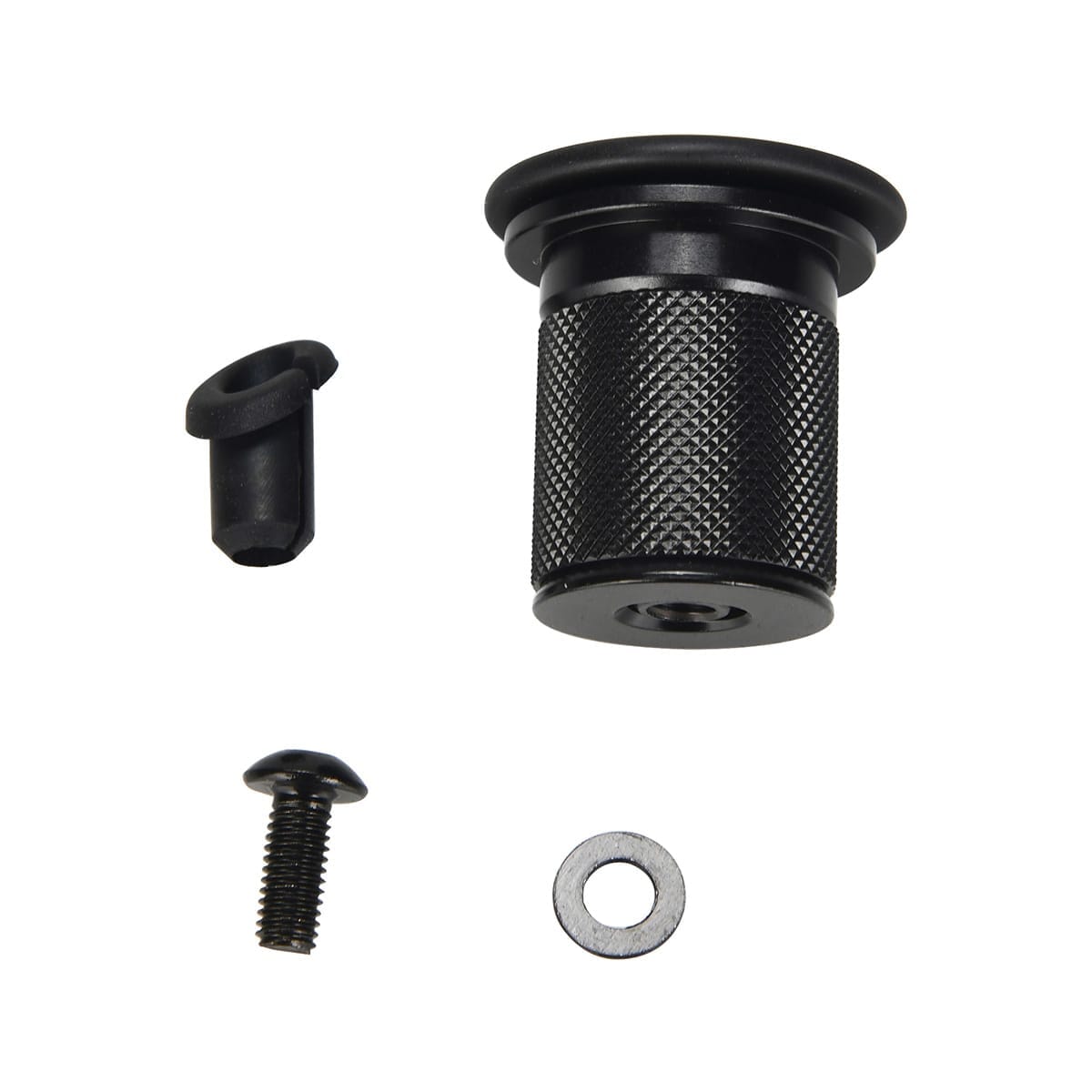

→ Use an expander (compression plug) only.
;
