FORMULA

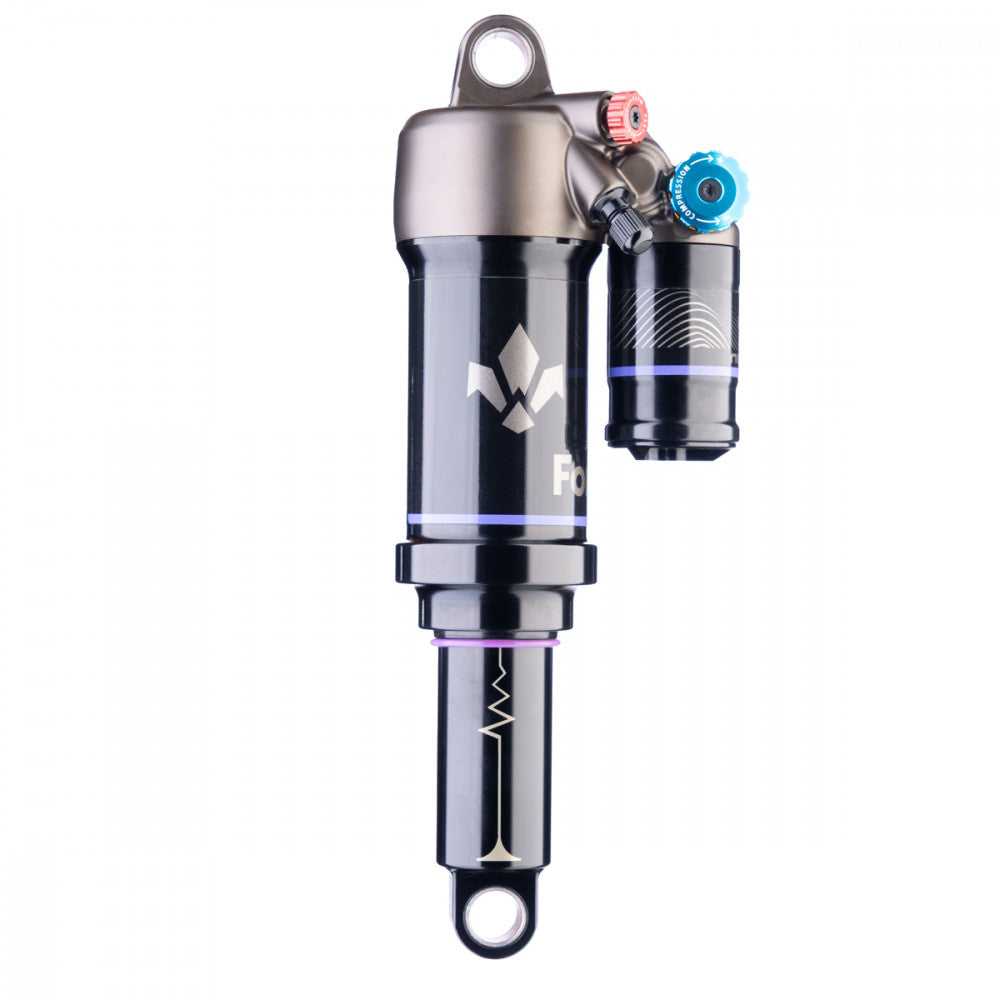

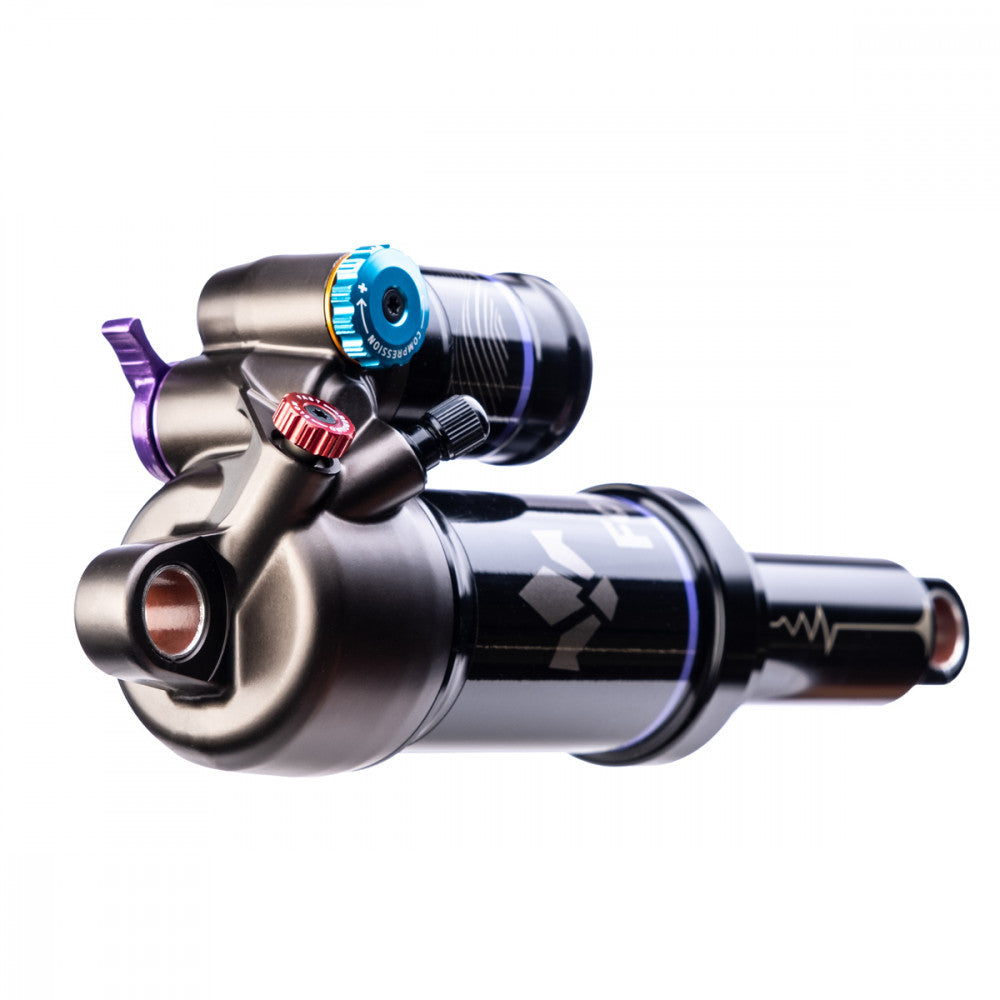

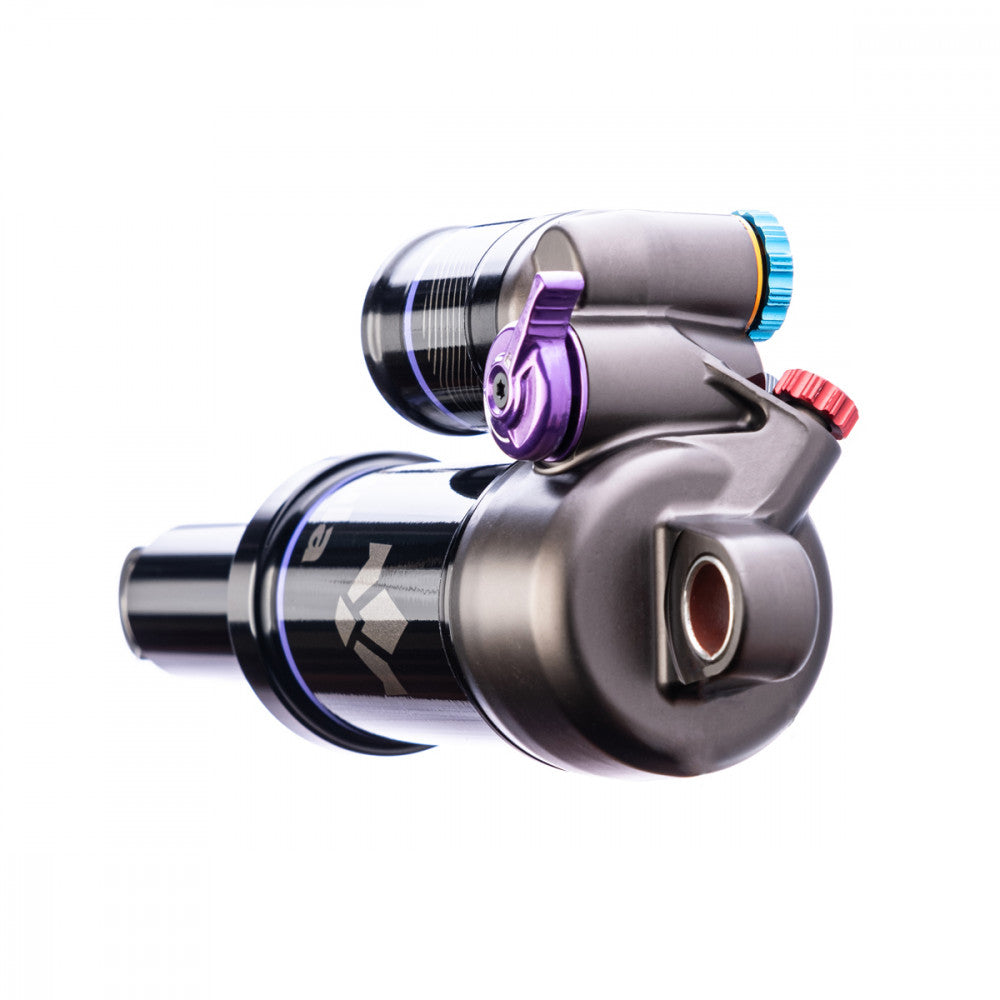

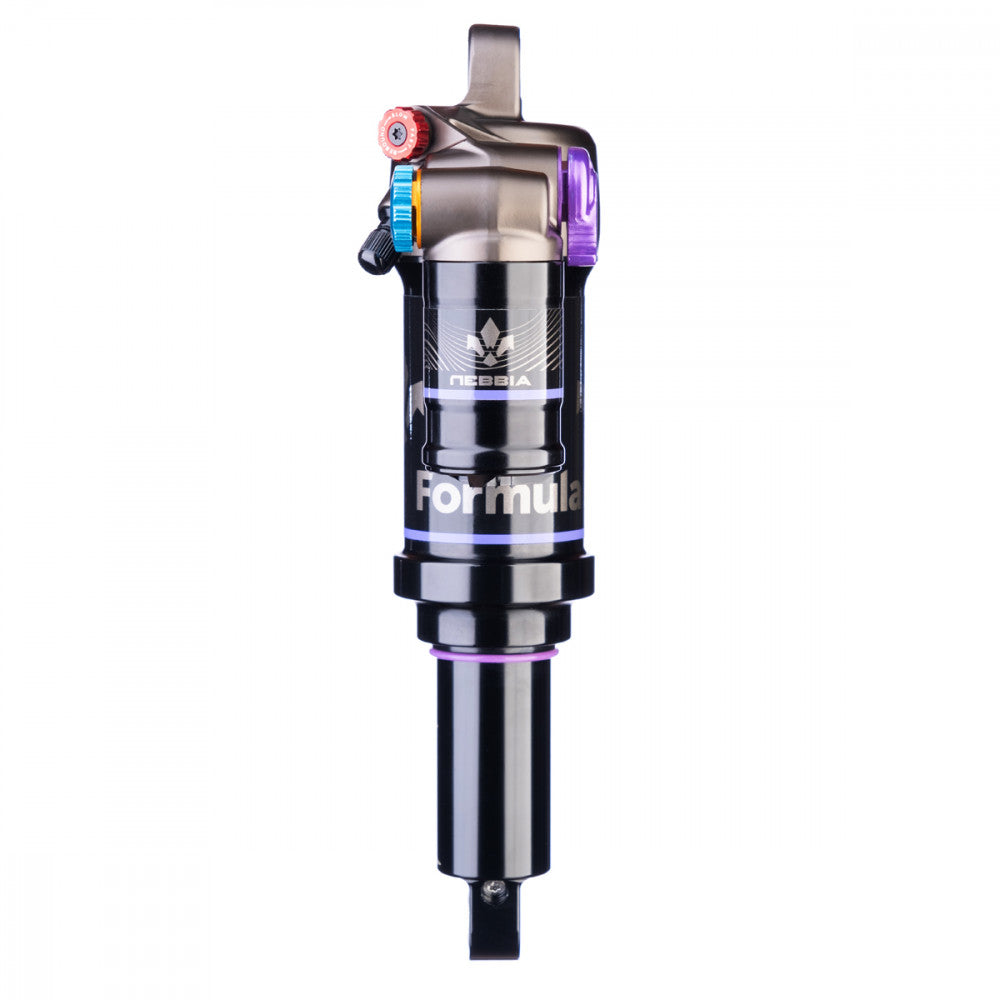

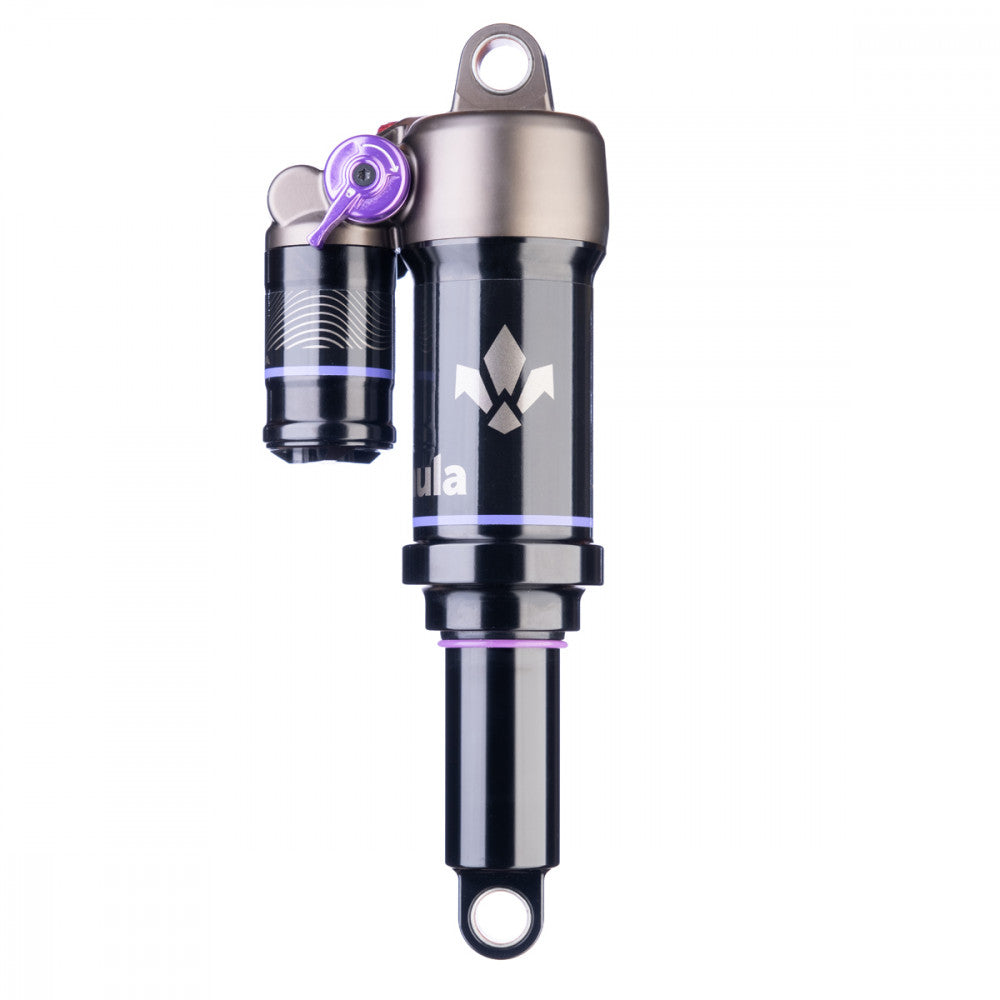

FORMULA NEBBIA Air Shock

Reliable, easy to set up and incredibly smooth, the FORMULA NEBBIA is an air shock designed to offer you comfort, control and confidence on... Read more
7,967.00 SEK
7,967.00 SEK
View full details

Description

Reliable, easy to set up and incredibly smooth, the FORMULA NEBBIA is an air shock designed to offer you comfort, control and confidence on every trail. Thanks to its hybrid negative chamber (air + spring) and its piggyback reservoir, it combines the sensitivity of a coil shock with the lightness and precision of an air model. The result: exceptional traction and perfect control, even on the most demanding terrain.

The Neopos system — patented spongy volumes — makes it easy to adjust the mid-stroke and end-stroke for progressive and consistent behaviour. Combined with a polyurethane bottom-out bumper, the Nebbia eliminates harsh bottom-outs and guarantees a smooth transition throughout the travel.

Universal and practical, the Nebbia fits the majority of frames on the market without tools. Its travel reduction spacers (2.5 / 5 / 7.5 mm) make for a perfect integration, while the wide rebound adjustment range and the CTS (Compression Tuning System) allow you to fine-tune the suspension in just a few clicks. Three CTS valves (Gold, Orange, Green) are included to tailor the compression to your riding style.

Born from Formula's expertise in moto trial, the Nebbia combines robustness and ease of maintenance. Easy to disassemble and service at home, it benefits from Formula's 10-year service warranty.

Like the mist it takes its name from, the Nebbia goes unnoticed beneath the rider: silent, smooth and consistent, it lets you fully enjoy the moment and the trail.

User Manual

Ref: 15581037855100

Informations techniques

Discipline: Enduro / DH Race
Designed for all types of bikes, including e-bikes and frames with Yoke mounting

Type: Air shock with hybrid negative chamber (air + spring)
Piggyback reservoir with bladder design

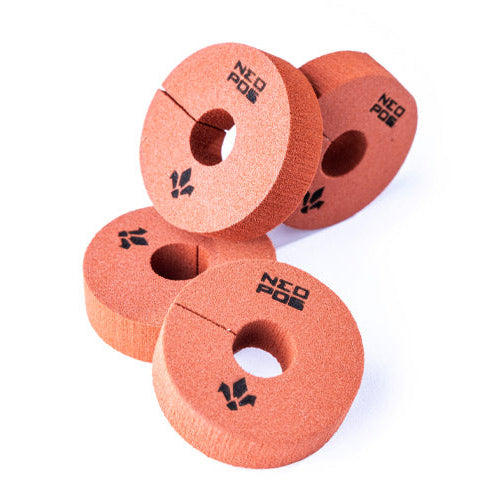

Neopos system included (spongy volume to adjust mid and end of stroke)
Polyurethane bump stop system to prevent harsh impacts at end of travel

Settings:
Compression: 21 clicks
3 compression positions: open, medium, closed
(DH version 250x67.5/70/72.5/75mm: without full lockout)
CTS (Compression Tuning System) with interchangeable valves:
Gold (soft)
Orange (medium – stock fitting)
Green (firm)

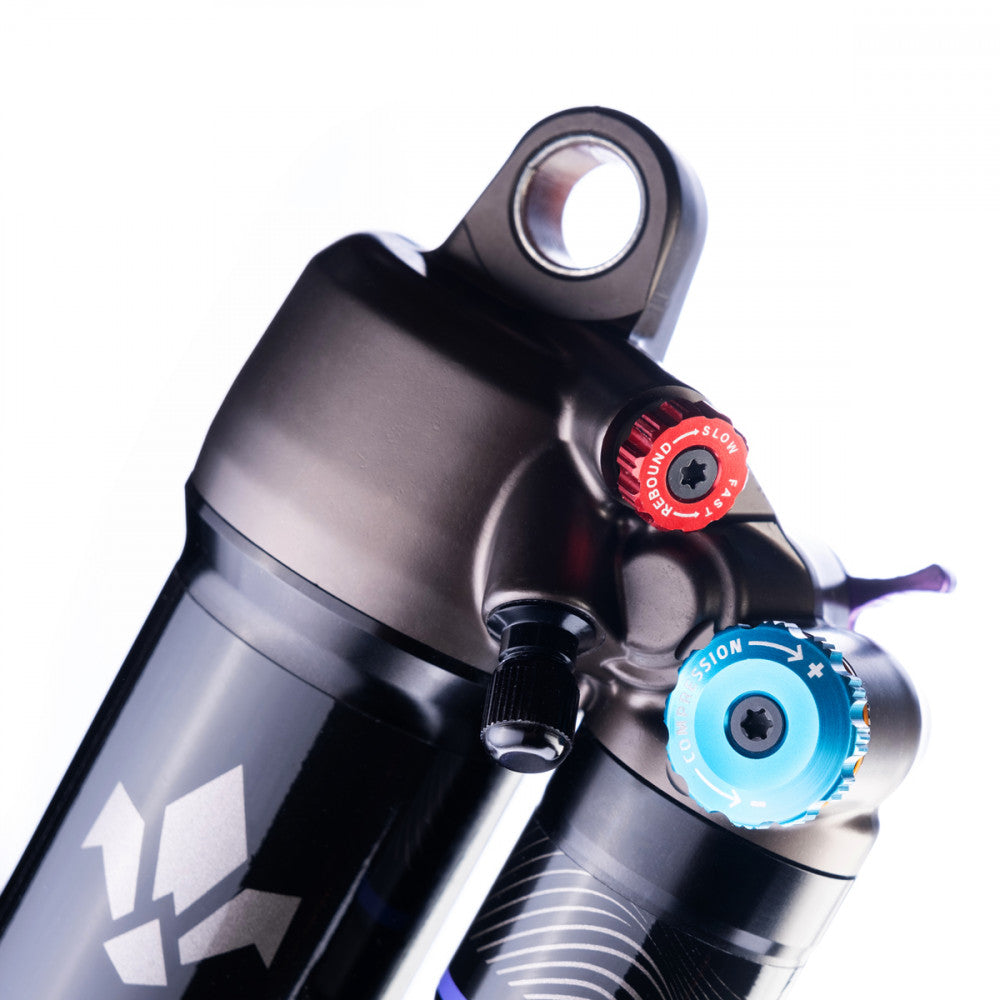

Rebound: 23 clicks, tool-free adjustment
SAG adjustment: integrated visual indicator
Adjustable travel via clip-on spacers:
Reduction of 2.5 mm / 5 mm / 7.5 mm

Low-pressure positive air chamber: reduces seal stress and increases durability
Bladder system: less friction than a floating piston (IFP), better sensitivity and less heat
High sensitivity to small bumps thanks to the air + spring combination
Consistent behaviour even on long descents

Weight (manufacturer): 472 g (in 210x55 mm)
Formula warranty: 10 years (parts & service guaranteed)

Supplied with:
High-pressure pump
3 CTS valves (Gold / Orange / Green)
1 Neopos
Travel reduction spacers (2.5 / 5 / 7.5 mm)
;
