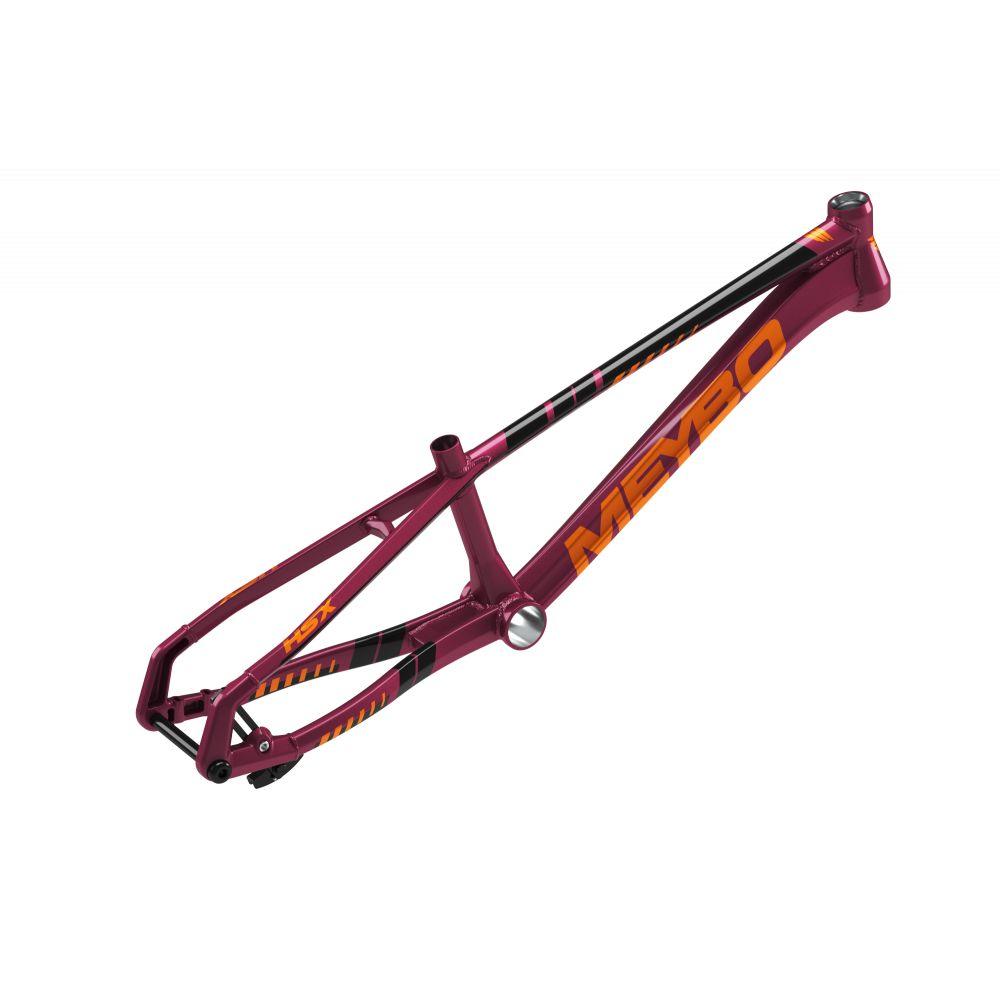

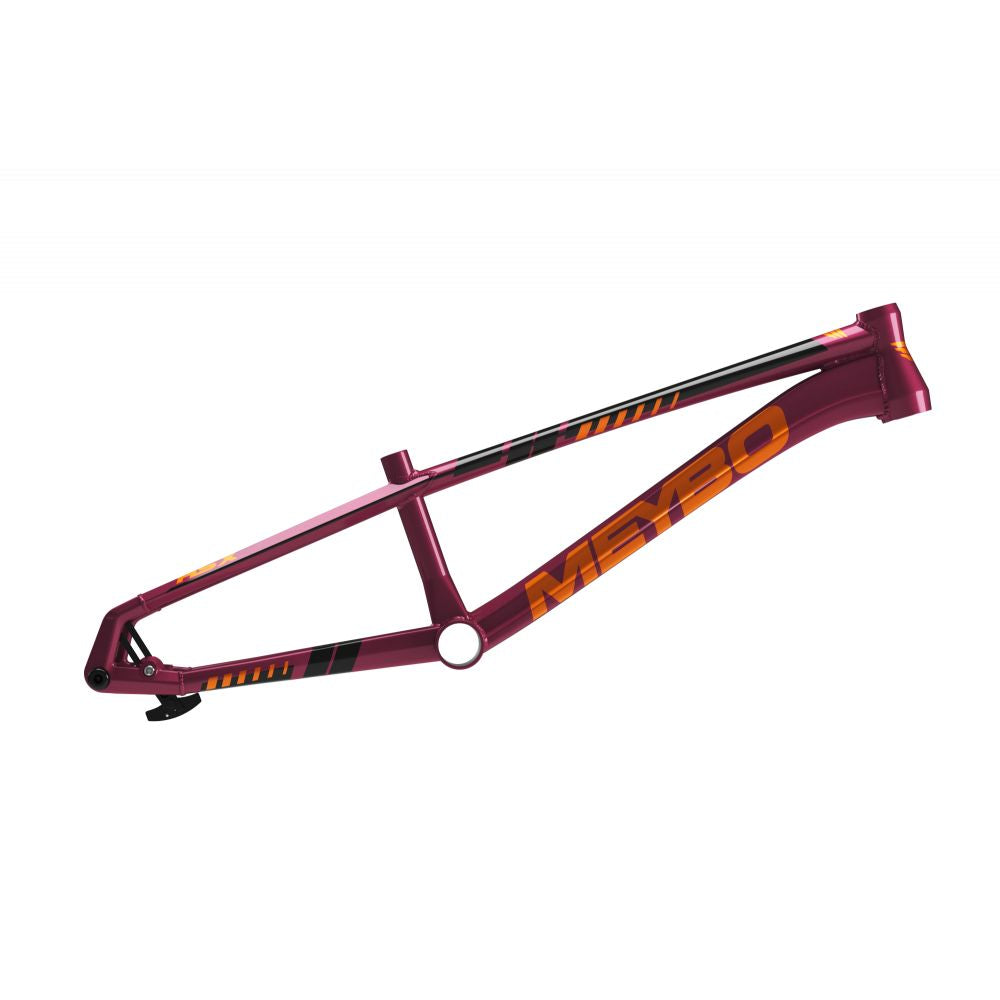

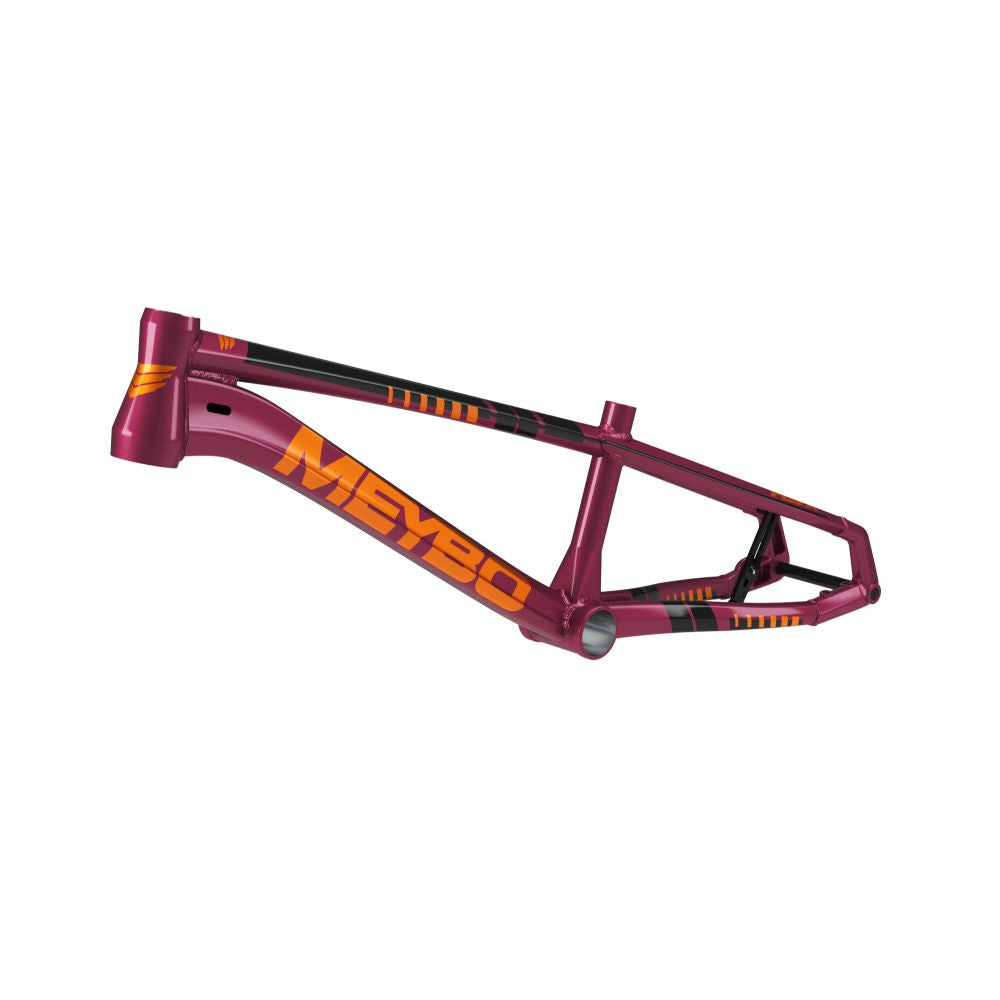

MEYBO HSX AL 2026 Frame Bordeaux/Orange

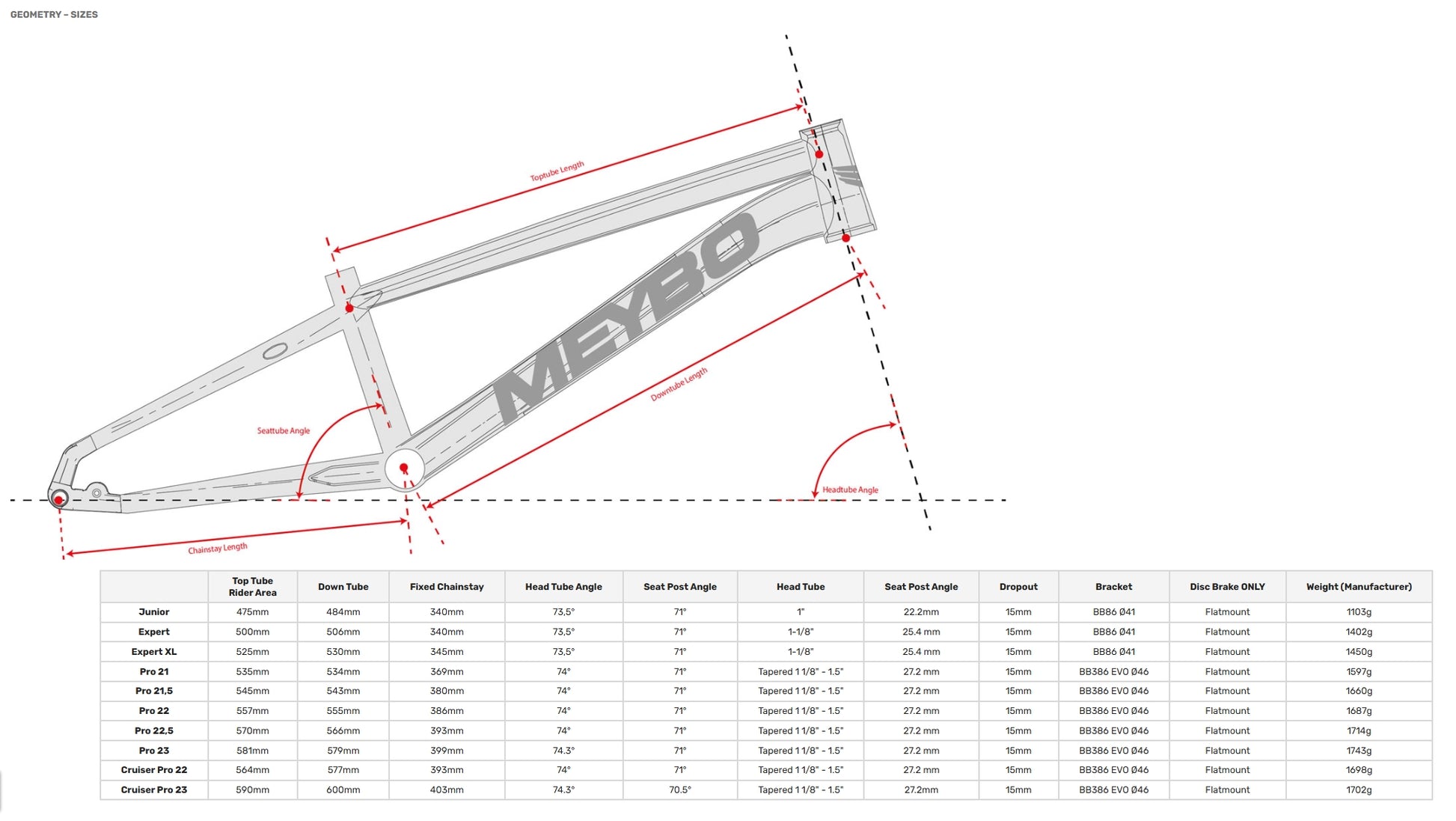

The MEYBO HSX AL 2026 Frame is designed for BMX Race competition and represents the highest-performing aluminium model in the Meybo range. Developed to offer an excellent compromise between lightness, stiffness and stability, it meets the demands of riders seeking a high-performing chassis without switching to carbon. Its specific geometry is optimised for championship and World Cup tracks to ensure excellent control at high speed.

Made from 6061-T6 aluminium, the frame features hydroformed tubes with variable wall thickness to optimise the weight-to-stiffness ratio. This new generation undergoes a complete redesign of the majority of the tubes, with particular attention paid to manufacturing quality, structural stiffness and weight savings. The result is a reactive, precise and stable behaviour in all riding phases.

The frame is exclusively compatible with a Flat Mount disc brake system using a 120 mm rotor. It is supplied with 1, 2 and 4 mm spacers to facilitate disc alignment depending on the hub used. Depending on frame size, the bottom bracket follows a BB86 or BB386 PressFit standard, improving stiffness and limiting flex during accelerations.

The rear triangle integrates a 15 mm through-axle CNC machined from 7005 aluminium as well as an integrated chain tensioner ensuring constant drivetrain tension. Compatible with 24 mm or 30 mm axle cranksets, the MEYBO HSX AL 2026 brings together the essential technical features for performance-oriented BMX Race riding.

Ref: 15995547648380
