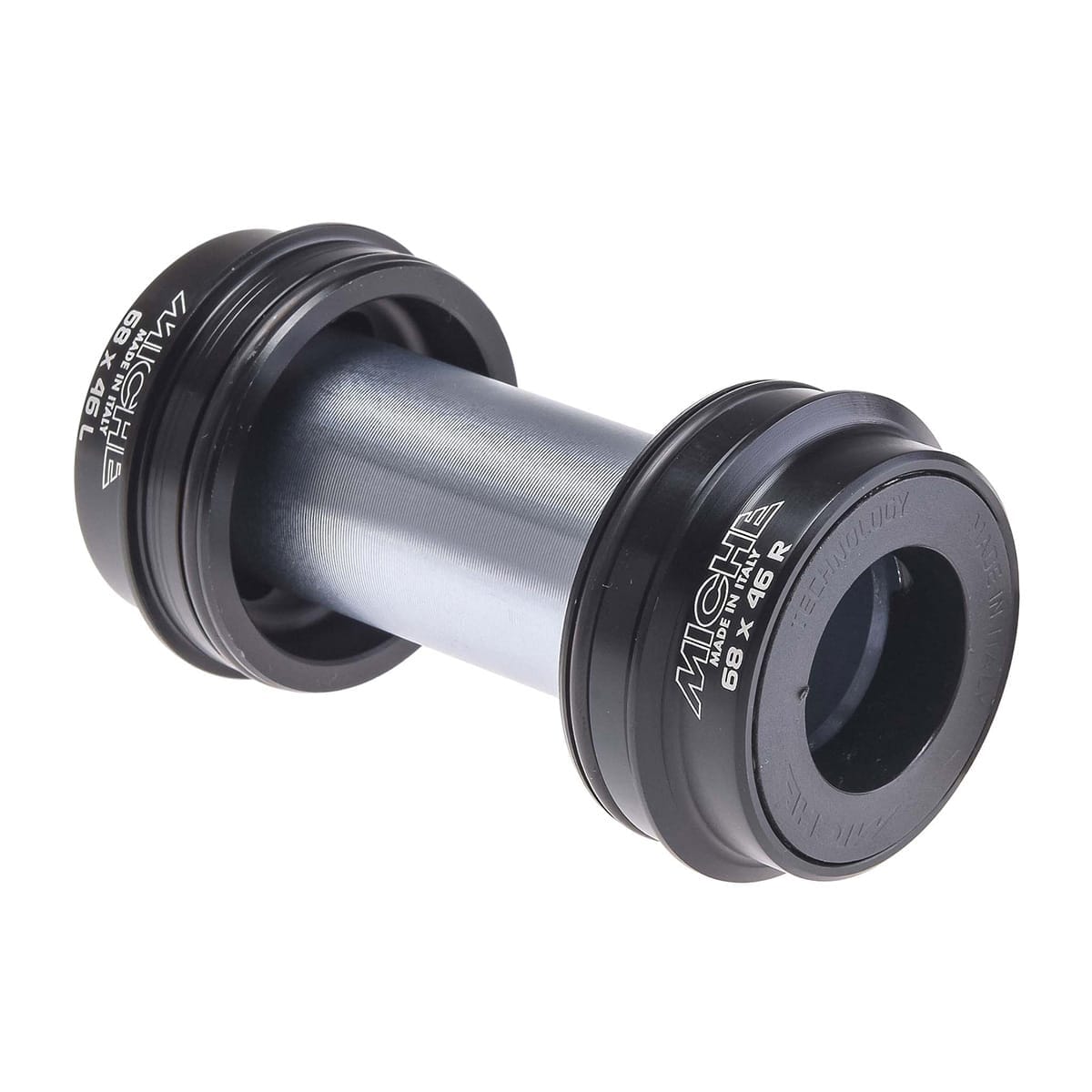

MICHE EVO MAX PF30 46-24 Bottom Bracket

The MICHE Evo Max bottom bracket is presented here in the PF30 standard, with a spindle length of 68 mm and a bottom bracket... Read more
409.00 SEK
409.00 SEK
View full details

Description

The MICHE Evo Max bottom bracket is presented here in the PF30 standard, with a spindle length of 68 mm and a bottom bracket diameter of 46 mm.

Made from 7075-T6 aluminium, this lightweight model integrates sealed annular bearings, for an exceptionally smooth bottom bracket movement and superior material longevity.

This bottom bracket allows you to fit a classic Shimano-type crankset with a 24 mm spindle onto your frame designed for PF30.

Compatibility chart
A - Diameter (mm) B - Width (mm) Assembly Standard
34,8 68 threaded BSC / BSA
34,8 73 threaded BSC / BSA
34,8 83 threaded BSC / BSA
34,8 100 threaded BSC / BSA
27 95,5 press-fit BB 96 (Trek)
41 92 press-fit PF 92
42 68 press-fit BB 30
42 73 press-fit BB 30
46 68 press-fit PF 30
46 73 press-fit PF 30

Ref: 14727420346717

Informations techniques

Sealed annular bearings;

Weight (Probikeshop): 132 g.
;

Informations prix

*Supplier recommended retail price in January 2025
