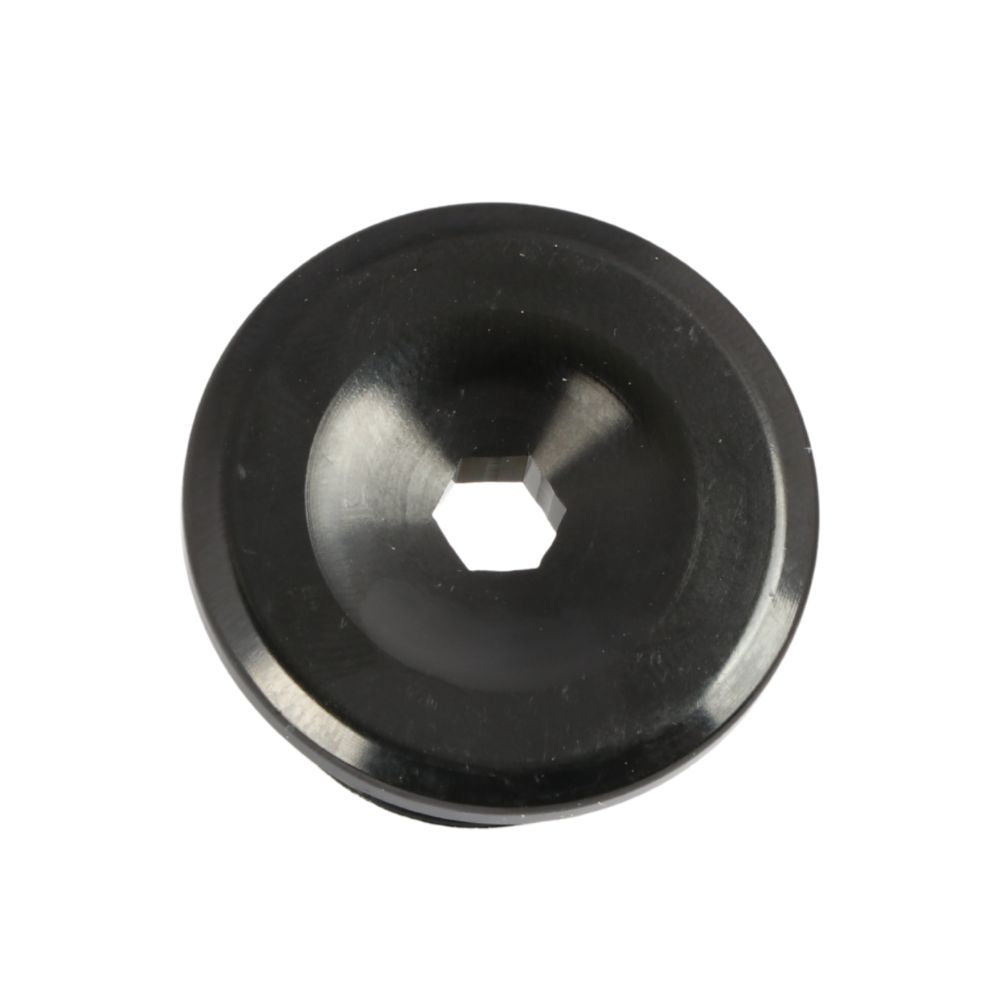

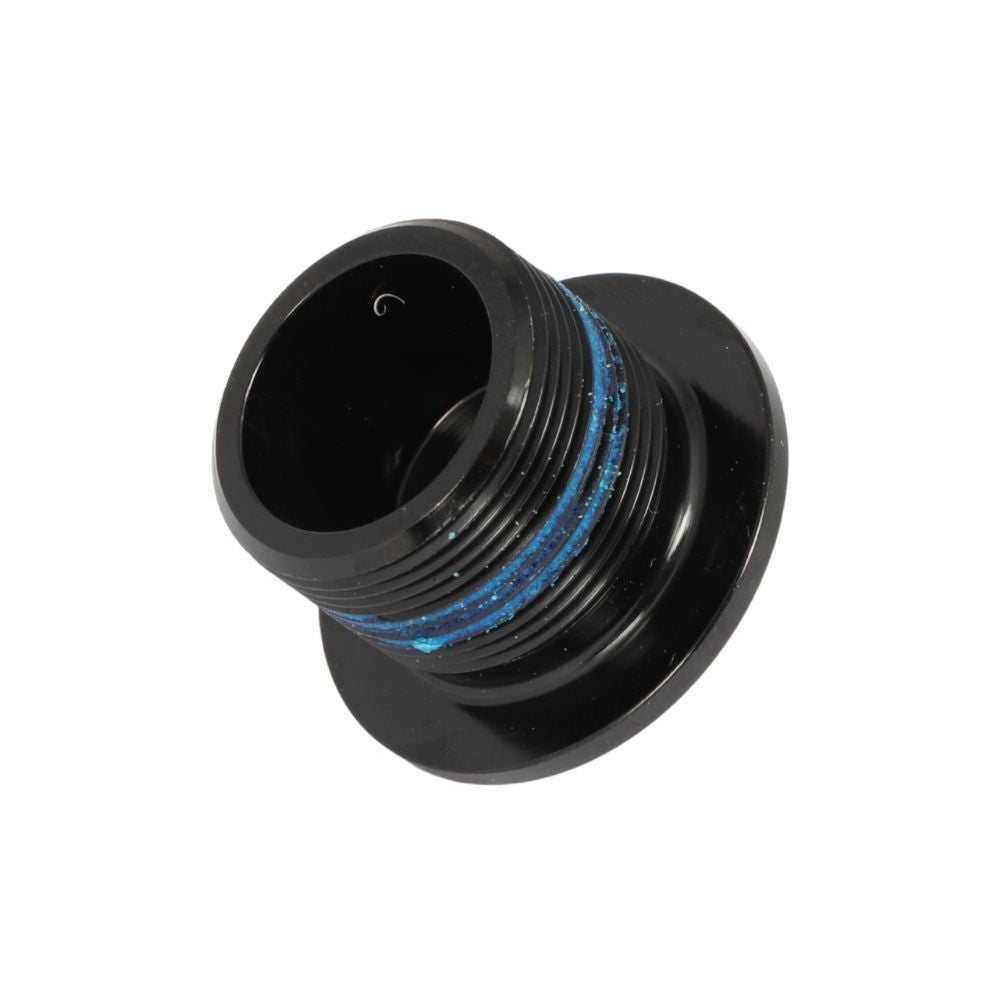

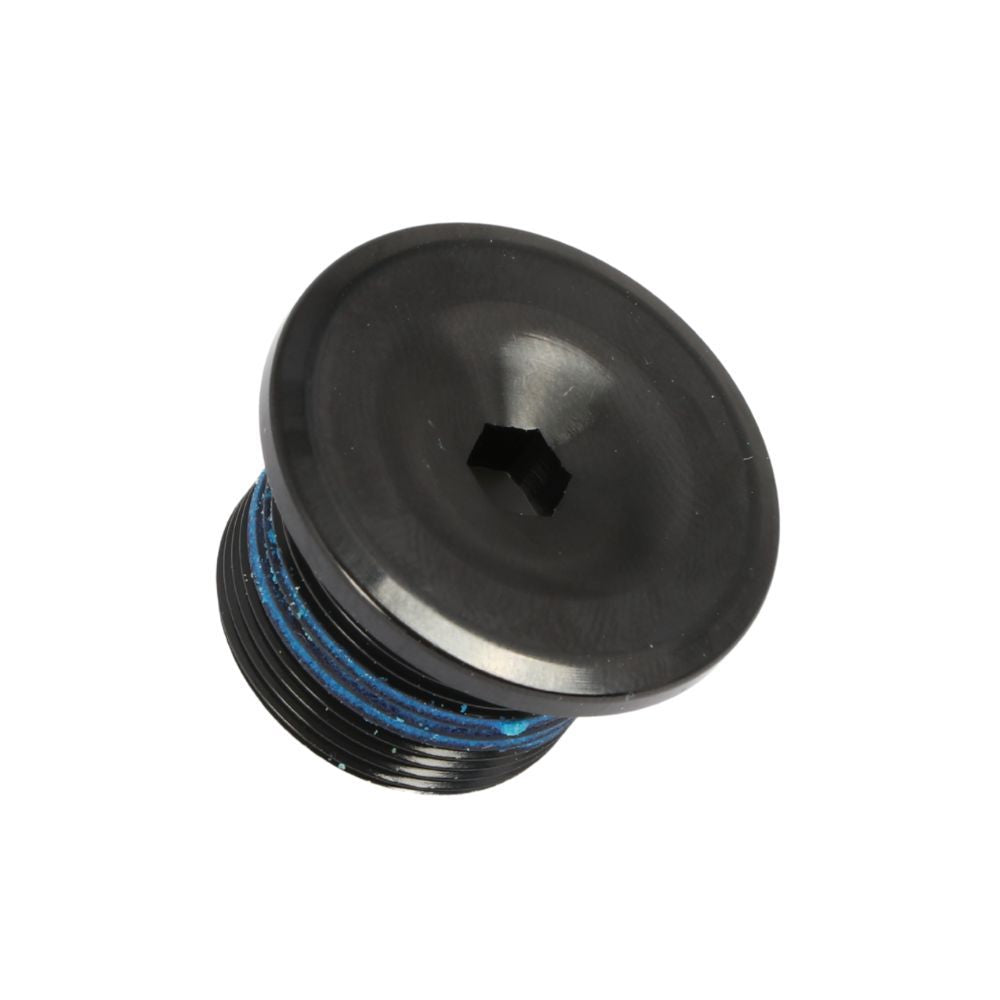

PRIDE NEWTON SX Bottom Bracket Compression Bolt

The PRIDE NEWTON SX Bottom Bracket Compression Bolt is a specific part designed to ensure the retention and proper functioning of the Newton SX... Read more
153,00 SEK
153,00 SEK
View full details

Description

The PRIDE NEWTON SX Bottom Bracket Compression Bolt is a specific part designed to ensure the retention and proper functioning of the Newton SX crankset. It enables reliable fitting while guaranteeing precise adjustment of the entire BMX Race drivetrain.

Made to meet the requirements of the PRIDE Newton SX crankset, this compression bolt contributes to the rigidity of the assembly, the security of the fixing and the durability of the system. An essential part for servicing or replacing an original component.

Ref: 15986274402684

Technical information

Material: Aluminium
Thread: M20x1
Length under head: 15mm
Clamping recess: 5mm (Allen key)
Compatibility: Pride Newton SX crankset (non-exhaustive list)
Tightening torque: 4Nm (max)
Weight: 10g
;
