SHIMANO

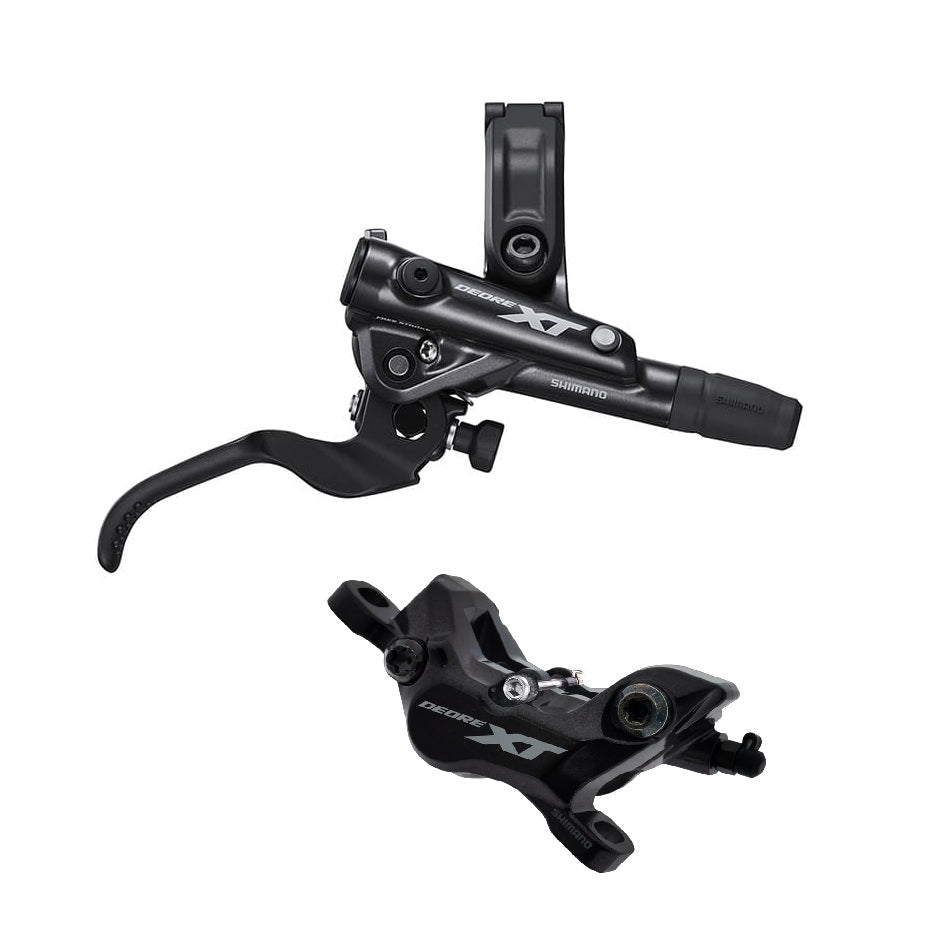

Rear brake SHIMANO XT M8120 4 Pistons

Réf. fabricant : IM8120JRRXSA170
The SHIMANO XT M8120 Rear Brake is designed to deliver consistent braking performance and reliable stopping power in all conditions. Its 4-piston caliper enhances... Read more
1,745.00 SEK
1,745.00 SEK
View full details

Description

The SHIMANO XT M8120 Rear Brake is designed to deliver consistent braking performance and reliable stopping power in all conditions. Its 4-piston caliper enhances confidence and control on descents, while the lightweight, intuitive BL-M8100 lever provides precise modulation to explore your limits with confidence.

The lever's optimized axis position and refined ergonomics, combined with I-SPEC EV technology, offer intuitive and versatile braking. The system is 10% stiffer than the M8000, even at high temperatures, with quicker brake engagement thanks to a shorter stroke.

Tool-free adjustment of reach and stroke provides total adaptability for every user. Fast piston return and four-piston design offer superior modulation for better control. Installation is quick and easy thanks to the banjo-style connection and internal cable routing, making this brake a high-performance, practical choice for demanding cyclists.

An excellent choice for enduro or trail riding!

▲ Pre-purged and pre-assembled brake ▲

► Manufacturer's manual

Ref: 7977572008102

Informations techniques

╝FEATURES
► Lightweight and powerful: Suitable for enduro with intuitive modulation
► Intuitive braking: Optimized lever position and refined ergonomics
► Increased rigidity: 10% stiffer than the M8000, even at high temperatures
► Easy assembly: banjo connection and internal wiring for quick installation.
► J-KIT: The J-Kit system facilitates the passage of the brake hose inside the frame, with a simplified connection to the caliper and a pre-mounted olive, for quick and easy installation
► I-SPEC EV: The I-SPEC EV mounting standard offers a streamlined cockpit, adaptable to all pilots thanks to a generous adjustment range, improving comfort and concentration with ergonomic design and increased rigidity for optimal control
► REACH AJUST: Brake lever with reach adjustment allows you to adjust the distance between handle and lever, adapting to all hand sizes and riding preferences for optimal braking and gear shifting
► ACTION SERVOWAVE: The SERVOWAVE lever enables rapid contact of the pads with the rotor, then multiplies braking power for increased control with less lever movement
► ONE WAY BLEEDING: System designed to prevent air bubbles in the hydraulic circuit, ensuring fast, clean bleeding thanks to a unidirectional oil path and funnel-shaped tool
► FREE STROKE: Adapt the distance between the initial position of the lever and the contact point of the pads according to hand size, type of practice and personal╔ preferences.

┘GENERAL
- Series: Deore XT
- Part Number Manufacturer :
Lever: BL-MT8100
Caliper: BR-MT8120
- Weight :
Lever: 105g
Stirrup: 141g
Lever/caliper/hose assembly: 394g for a front brake with 800mm hose
- Materials :
Levers: Aluminum
Stirrup: Aluminium
Pistons: Ceramic┌

┘FEATURES
- Shift/brake lever integration: I-SPEC EV
- Lever length: 2 Fingers
- I-SPEC EV adjustment angle: 20°.
- Number of pistons: 4
- Stirrup mounting: PostMount (PM)
- Compatible inserts: N03A-RF, N04C-MF, D03S-RX, D02S-MX
- Recommended Brake Fluid: Shimano mineral oil
- Hoses: 1700mm - SM-BH90-SBM - Banjo fitting
- Ø Discs min./max. 160mm to 220mm (combined with required adapters)
- Recommended disk: RT-MT800 (not supplied)
- J-Kit pre-purge : Yes┌
;

Informations prix

*Recommended retail price February 2024

Overall rating: 4.857143 out of 5 based on 14 reviews.

AI-Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Great product

"Good feel to the shifter"

— Pascal M. (5/5)

brakes like the ones

"brakes just the way we like them"

— Olivier B. (5/5)

That's great!

"Very good!"

— Paulo M. (5/5)

Hello, Probyke. Great equipment,

"Hi Probyke. Great gear, as usual. I can't say the same about the delivery, though—also as usual—but it took a whole week to get my stuff!!!! DPD gets a big fat zero."

— Jean G. (5/5)

That's great!

"Very good!"

— Antonio P. (5/5)

Excellent brakes

"Excellent brakes"

— Gilles C. (5/5)

TOP

"Replaces the Shimano MT200 brakes. Great brakes with powerful stopping power. Easy to install—no expertise required."

— Alsaco (5/5)

Excellent braking

"I just finished the Portes du Soleil ride, and the brakes did their job perfectly. I just find them a bit of a hassle to install if you have a saddle lever trigger and shifters."

— Denfer (4/5)

Reliability Efficiency

"Top-notch delivery times, as usual. Shimano brakes are as reliable as ever on steep terrain!"

— Witey (5/5)

That really slows you down!

"These are excellent brakes as a replacement for the original Shimano brakes—you can really feel the difference. The feel is perfect, and the modulation is spot-on. They give you a real sense of confidence."

— Johns3131 (5/5)
