MAVIC

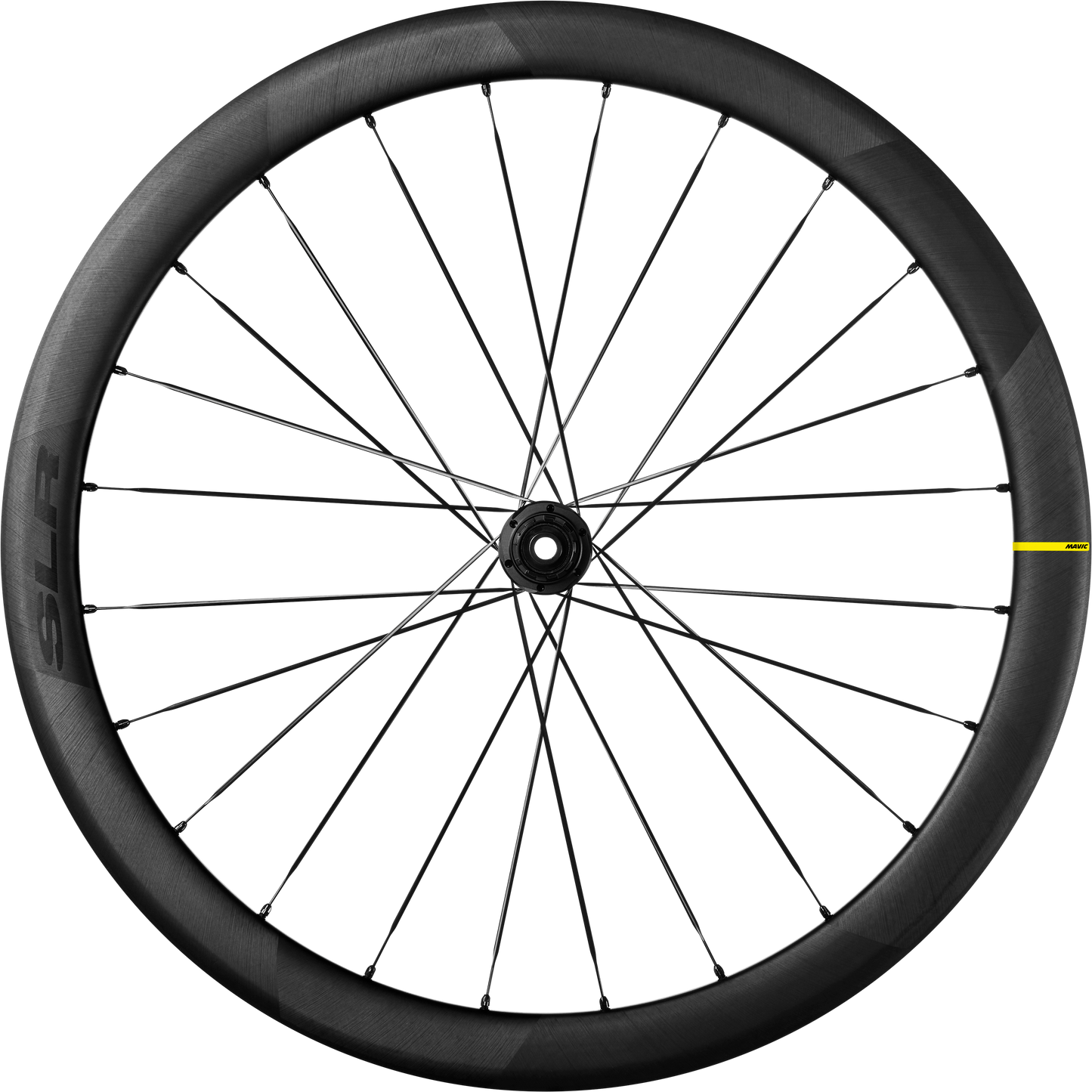

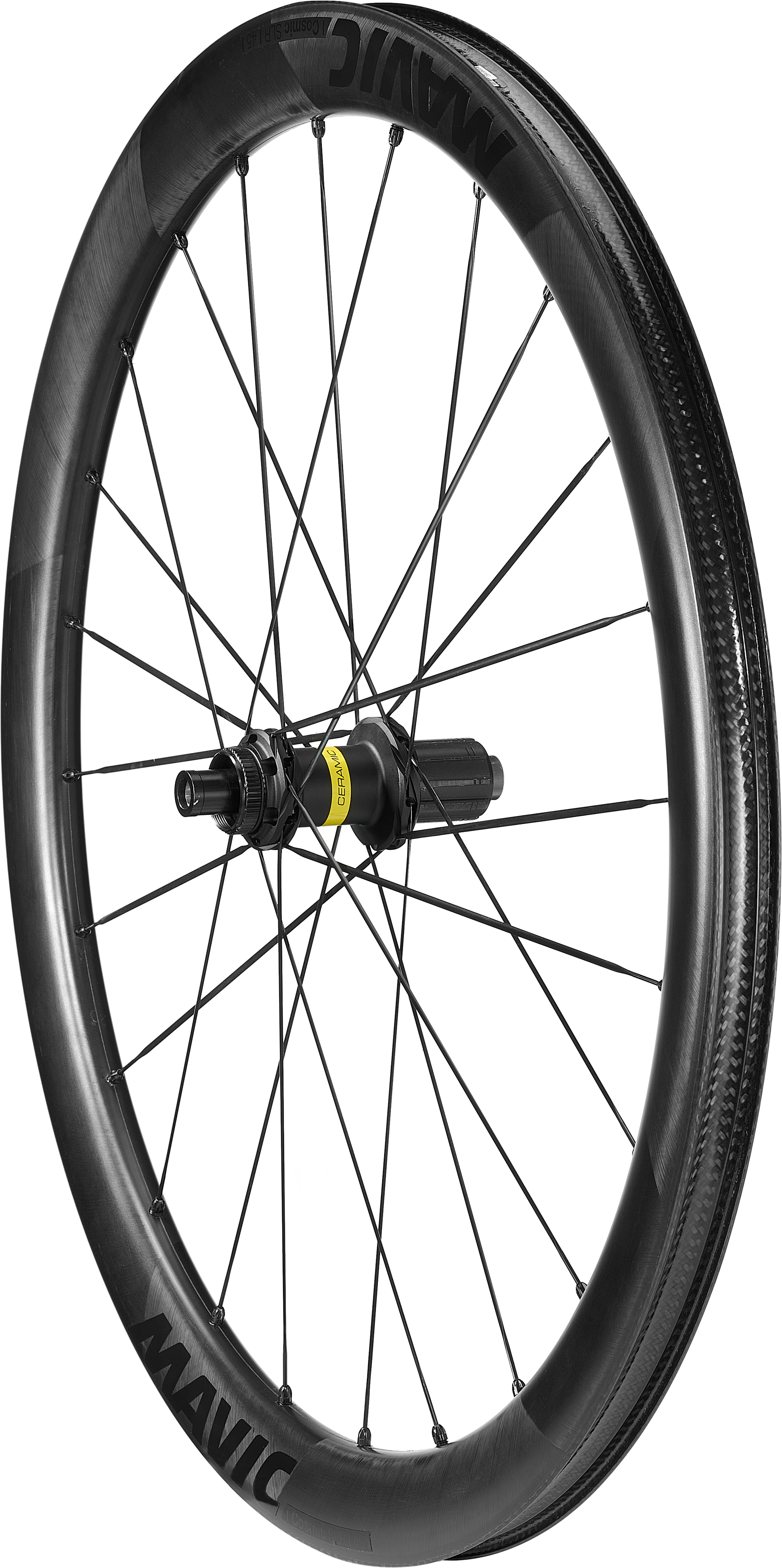

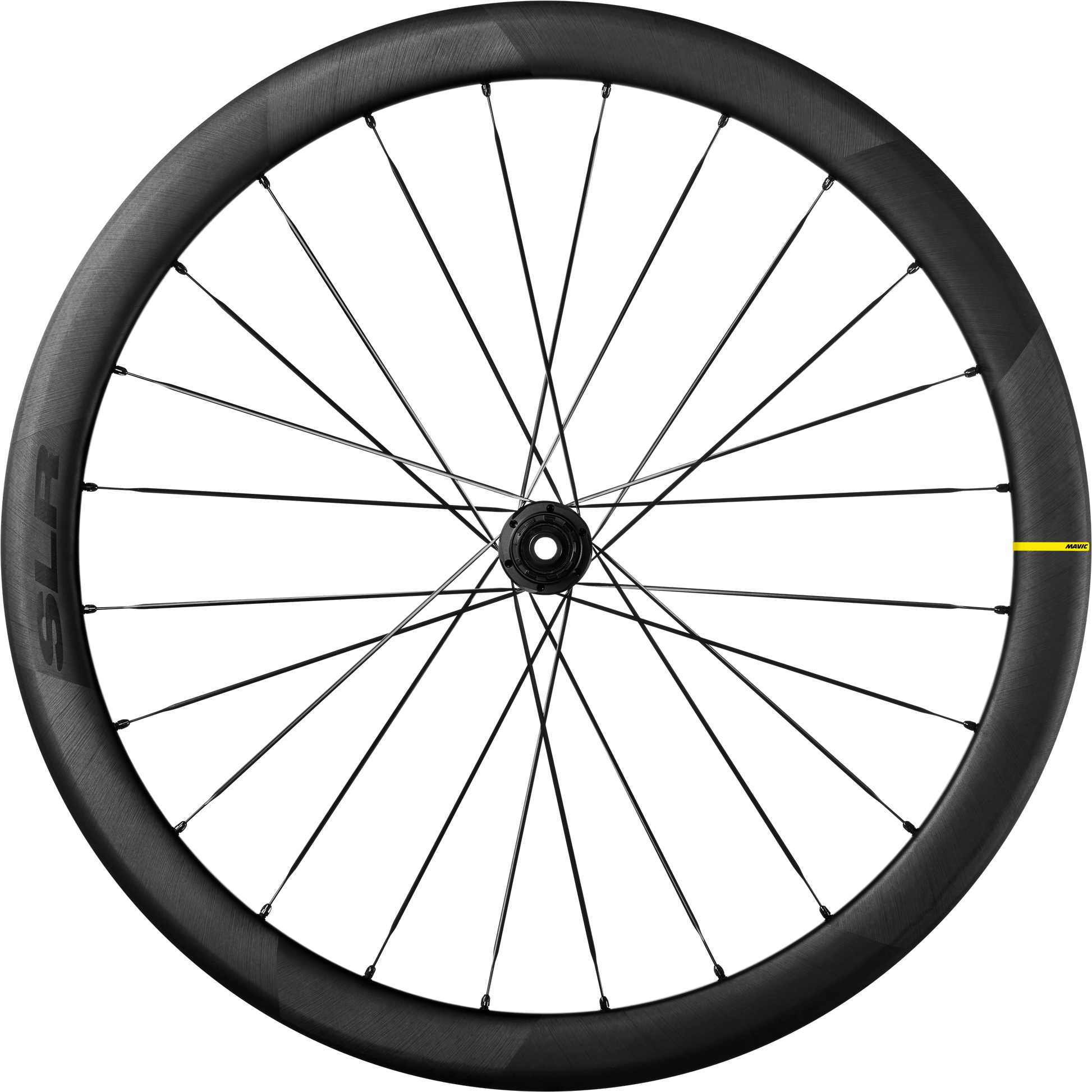

MAVIC COSMIC SLR 45 DISC Tubeless Ready Rear Wheel (Center Lock) 2025

The MAVIC COSMIC SLR 45 DISC rear wheel delivers exceptional performance thanks to its lightweight 45mm-high carbon rims. This wheel optimises aerodynamics and stiffness,... Read more
10,546.00 SEK
10,546.00 SEK
View full details

Description

The MAVIC COSMIC SLR 45 DISC rear wheel delivers exceptional performance thanks to its lightweight 45mm-high carbon rims. This wheel optimises aerodynamics and stiffness, enabling fast accelerations and increased stability at high speed.

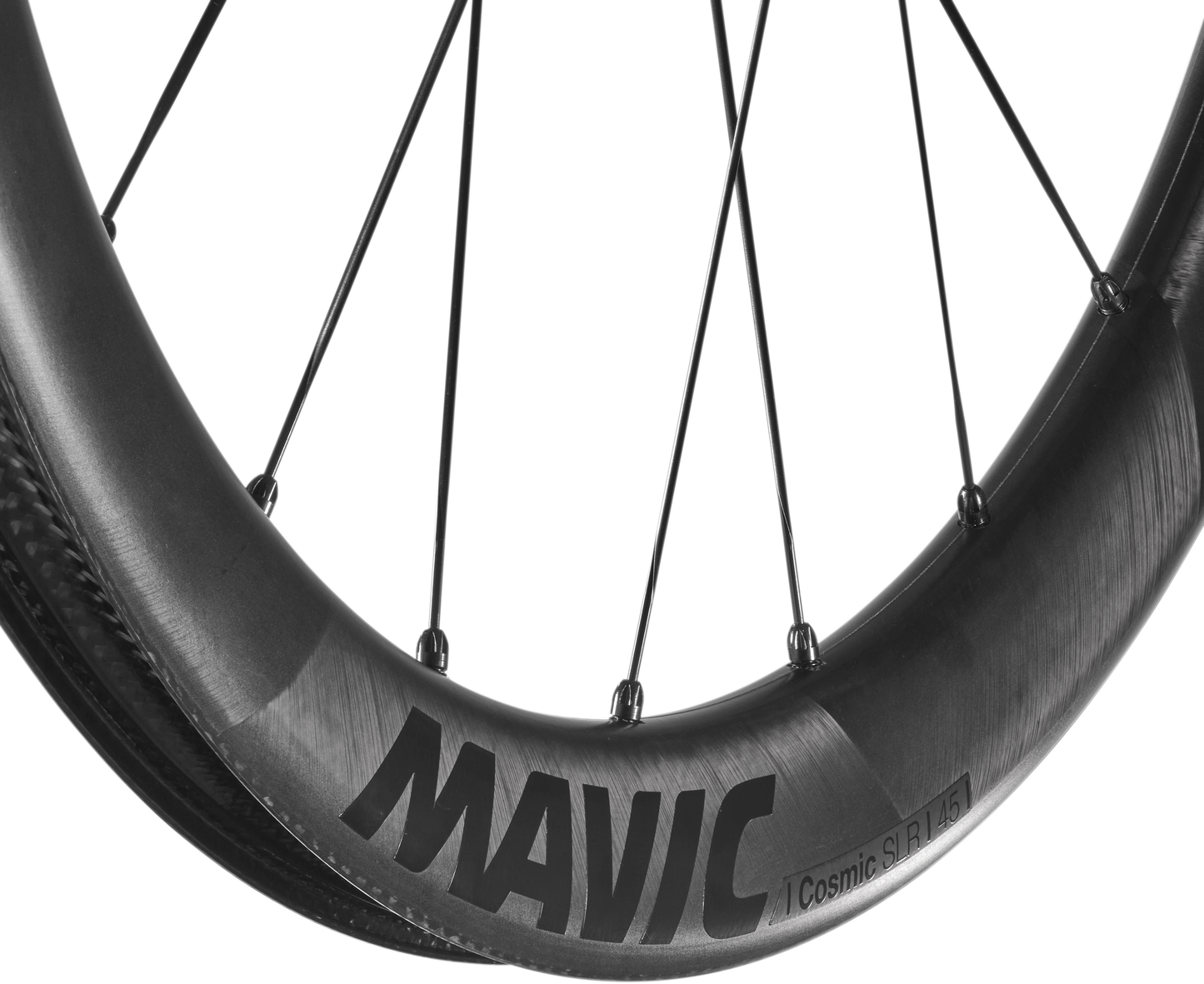

The NACA profile 45 mm tall and 32 mm wide is specially designed for disc brakes, whilst the Adaptative Lay Up layer stacking allows a weight saving of 70 g, also eliminating the need for rim tape. The Fore Carbon technology guarantees enhanced stiffness of the upper bridge, optimising power transfer.

With the Infinity hub platform featuring ceramic bearings and the ID360 freehub body, this wheel guarantees exceptional reactivity, smoothness and longevity.

The UST Tubeless system and its new 23mm internal width simplify the installation of tubeless tyres, offering more comfort and manoeuvrability whilst reducing friction and the risk of punctures.

Manufacturer Manual + Rim/Tyre Compatibility Chart

MAVIC Road Axle Adapters Manual

MAVIC UST Tubeless Manual

Ref: 15464267940220

Informations techniques

┘GENERAL
Rear Weight: 805 g
ASTM: Category 2: road and paths with jumps under 15 cm in height
Maximum load: 120 kg (bike weight included)
Lifetime warranty and Crash Replacement (after registration)

┘RIM
Material: 100% carbon fibre with Adaptive Lay Up outer layer
Height: 45 mm
External width: 32 mm
Internal width: 23 mm
Drilling: Tubeless Fore Carbon rimless technology (24 holes)
Reinforcements at spoke holes
ETRTO size: 622x23
Tyre compatibility: UST Tubeless Ready
Minimum tyre size: width 28 mm - max pressure 5.5 Bar/80 PSI
Maximum tyre size: width 64 mm - max pressure 3.25 Bar/47 PSI
Braking: disc

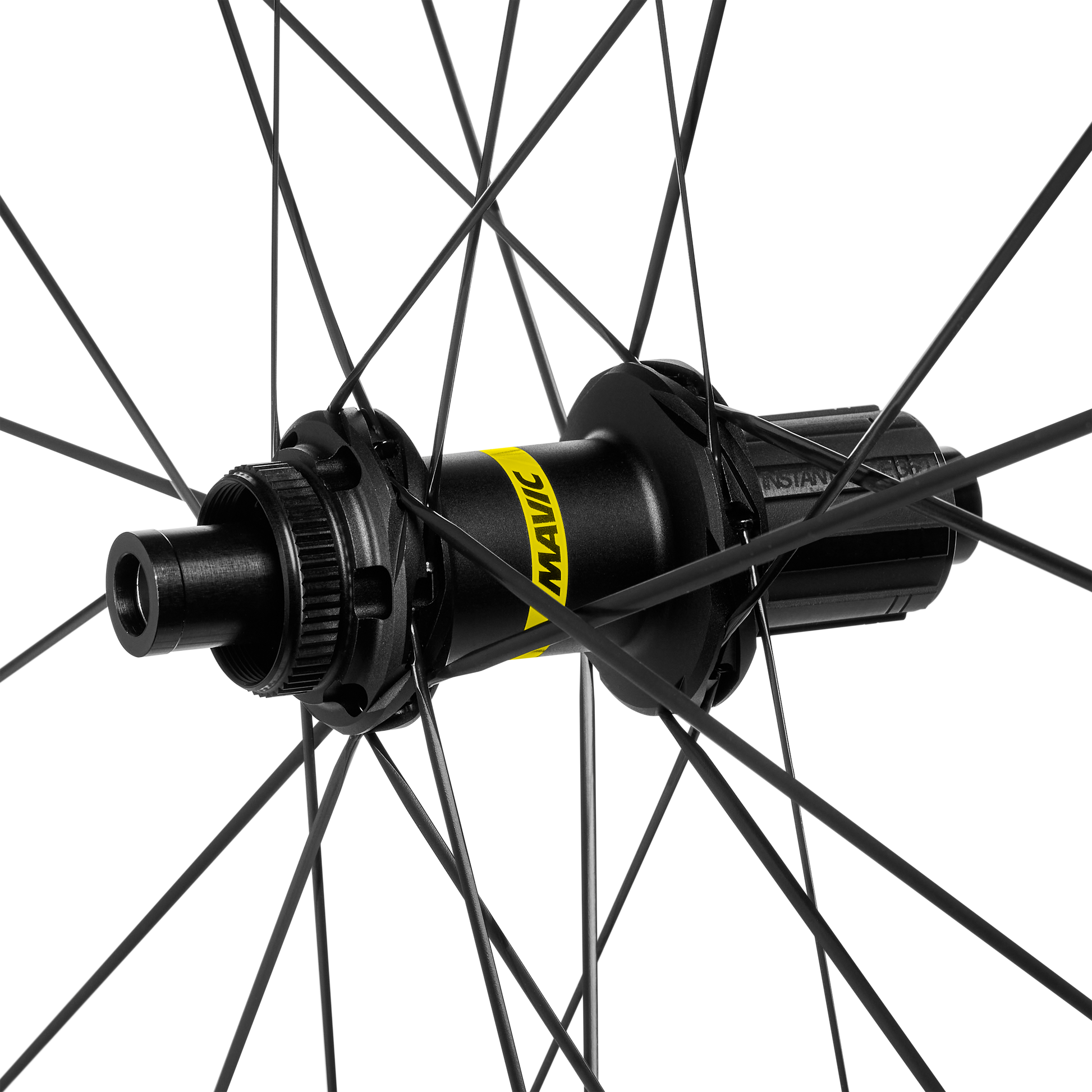

┘HUB
Shell material: aluminium
Shell design: INFINITY
Disc standard: Center Lock® only
Axle material: aluminium
Axle size: rear 12x142 - Convertible to quick release with adapters (not included)
Freehub technology: Instant Drive 360
Bearing technology: Mavic Ceramic

┘SPOKES
Material: steel
Shape: straight, extra-flat, butted, anti-rotation
Nipples: brass, black
Bolts: M6
Lacing: 2-cross

┘KEY TECHNOLOGIES
►ADAPTIVE LAY UP: Strategically positioned carbon layer with local reinforcement at spoke holes. Strong at certain points, light everywhere else;
► FORE CARBON: The Fore system uses metal inserts to connect the spokes to the rim, eliminating the need for a rim tape;
► INSTANT DRIVE 360: The Instant Drive 360 system provides immediate power transfer, with no inertia, proven reliability and quick tool-free maintenance;
► INFINITY: Infinity hubs ensure even spoke tension, providing stability, smoothness and durability, with no contact or parasitic noise, for simplified maintenance;
► Mavic Ceramic BEARINGS: premium material bearings for premium performance;
► UST SYSTEM: UST technology offers tubeless riding, reducing resistance, improving comfort and grip, while lightening the rim by 20 g;

┘INCLUDED
User guide
UST valve not fitted to the wheel
Multifunction adjustment key + M6 spoke wrench with rear wheel

┘COMPATIBLE REFERENCES
Freehub body: convertible SRAM XD road (kit V2580101 sold separately)
Freehub body: convertible SHIMANO HG light road (kit V3850101 sold separately
Freehub body: convertible SHIMANO MS (kit V3990101 sold separately)
Freehub body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freehub body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately) and by changing the axle (V2373401 also sold separately)
;

Informations prix

*Supplier recommended retail price in September 2025
