RENTHAL

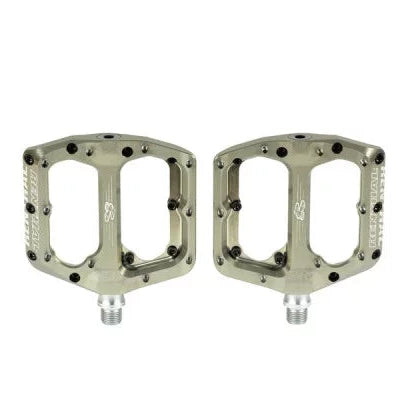

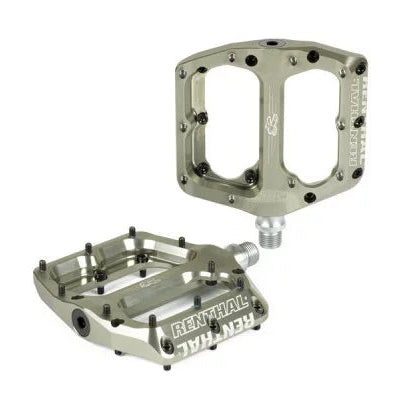

RENTHAL REVO-F Gold flat pedals

Réf. fabricant : PD10001-002-01
Visit RENTHAL REVO-F flat pedals pedals feature a true double-sided concave platform measuring 100 x 104 mm, for optimum support. With 10 screwed pins... Read more
1 778 SEK
1 778 SEK
View full details

Description

Visit RENTHAL REVO-F flat pedals pedals feature a true double-sided concave platform measuring 100 x 104 mm, for optimum support. With 10 screwed pins per side and asymmetrical positioning, they guarantee exceptional grip. Pimples are height-adjustable (2.5 to 5.5 mm) and supplied in two lengths for customized grip.

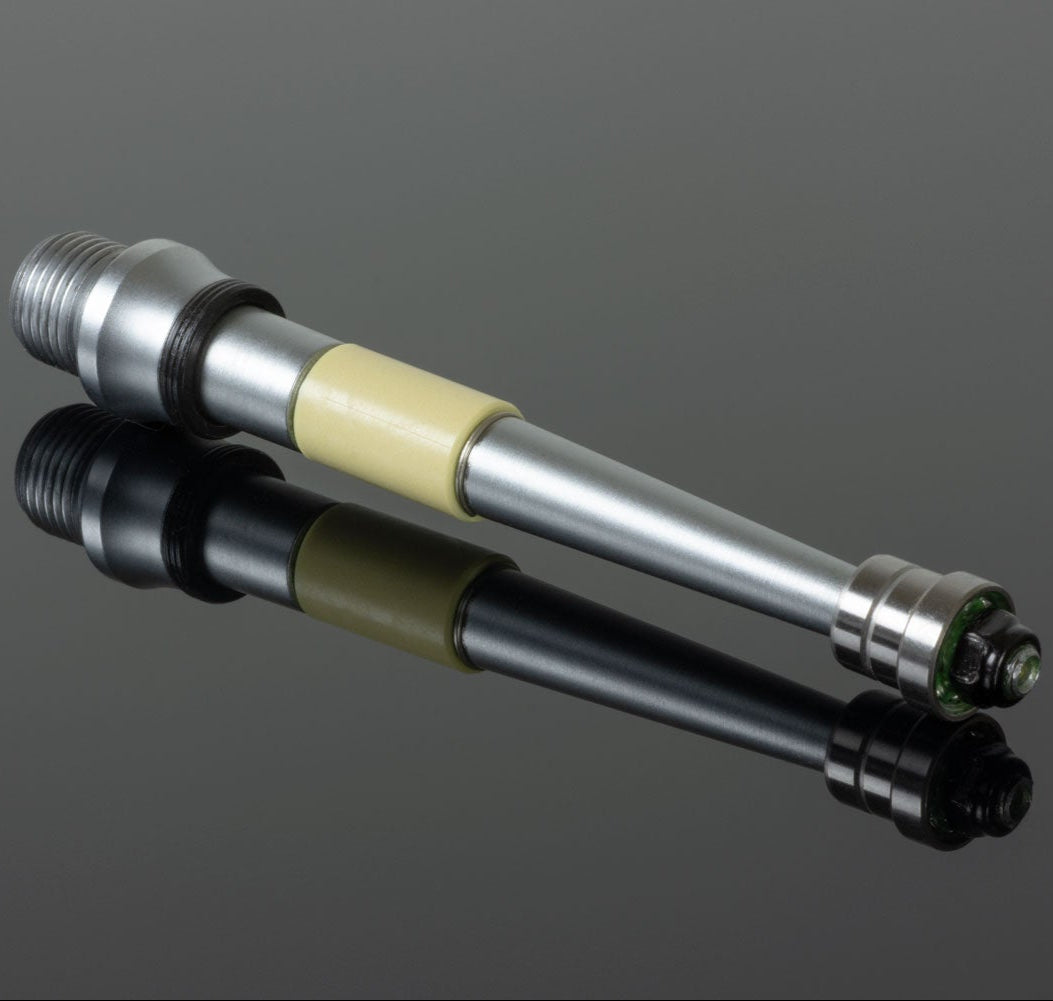

Designed for performance and durability, they feature three sealed bearings and an extra-long DU INGUS ring. Sealing is reinforced by a lip seal and an O-ring. Maintenance is simple thanks to a patented axle system that can be removed without the need for special tools.

Their CNC-forged 6061 aluminum body and chromoly axle ensure robustness and reliability in all terrain.

Ref: 15482068926844

Informations techniques

Concave platform.
Dimensions: 100mm x 104mm.
10 pins per side.

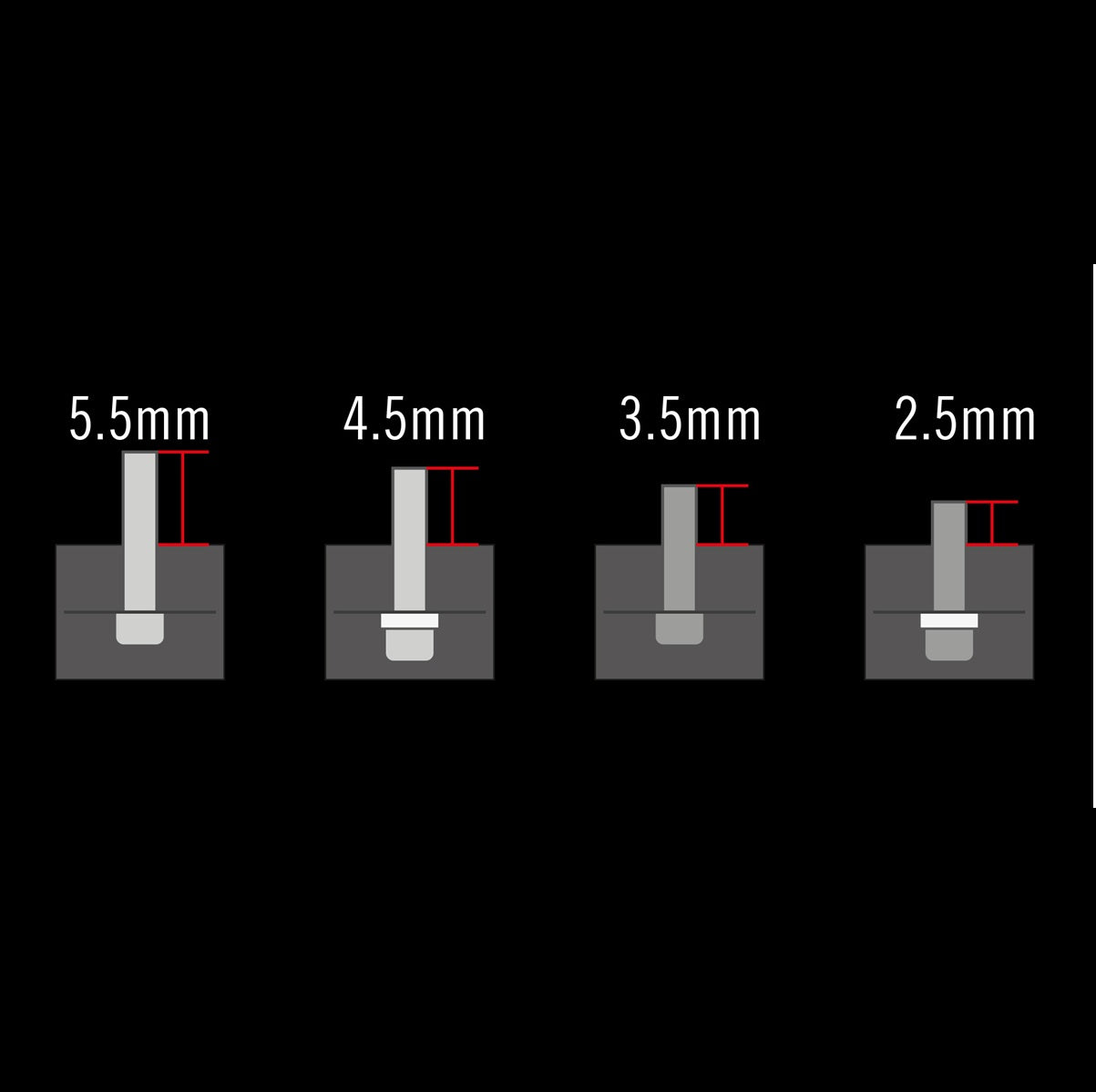

Adjustable pin length. 2.5mm to 5.5mm in 1mm increments.
Three external cartridge bearings.
Extra-large inner IGUS bushing.
Fully sealed - Inner lip seal with full contact. O-ring outer seal.
Forged and CNC-machined 6061 aluminum pedal body.
High-quality chromoly steel axle.
Weight (manufacturer): 488g.
;

Informations prix

Supplier suggested retail price in August 2025
