ROCKSHOX

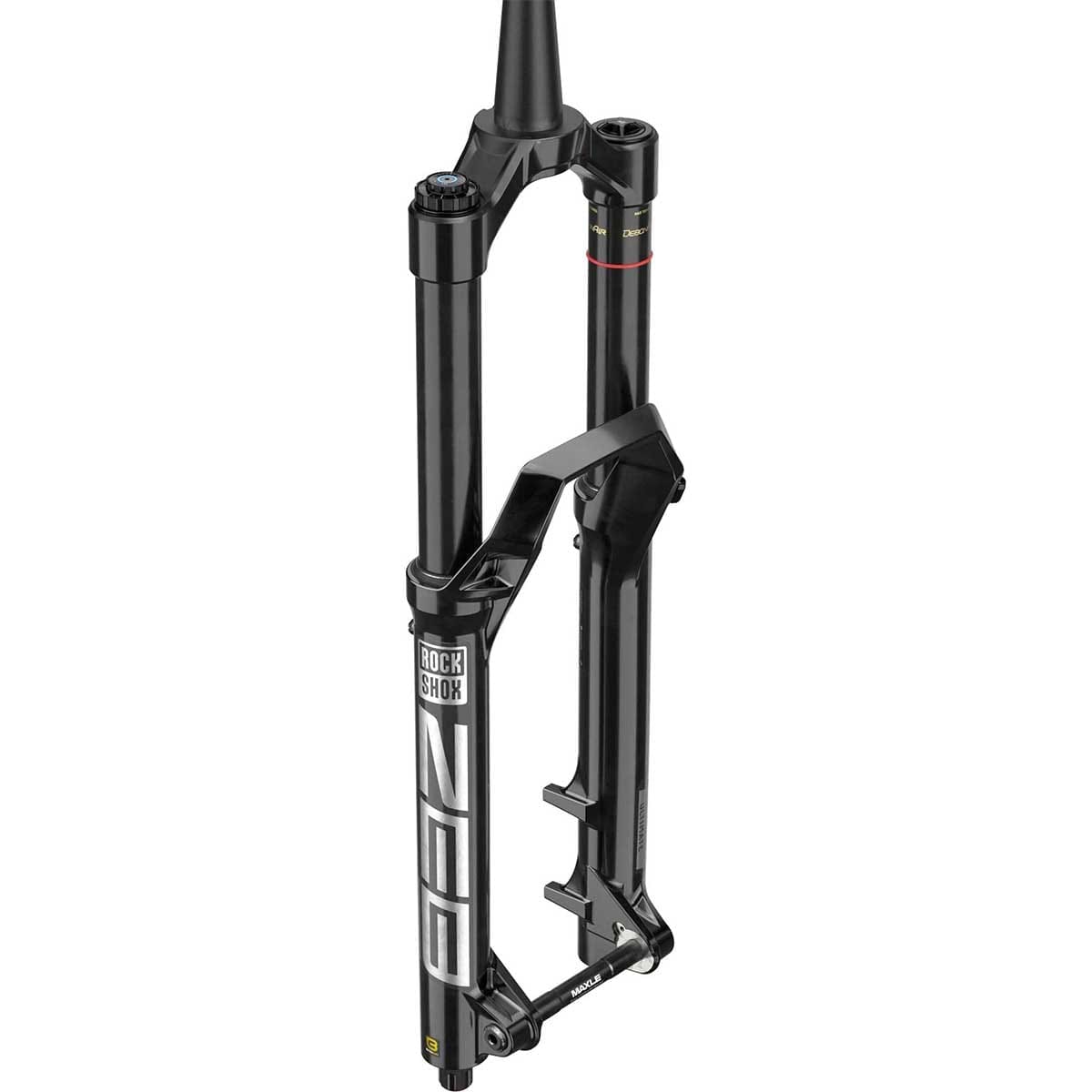

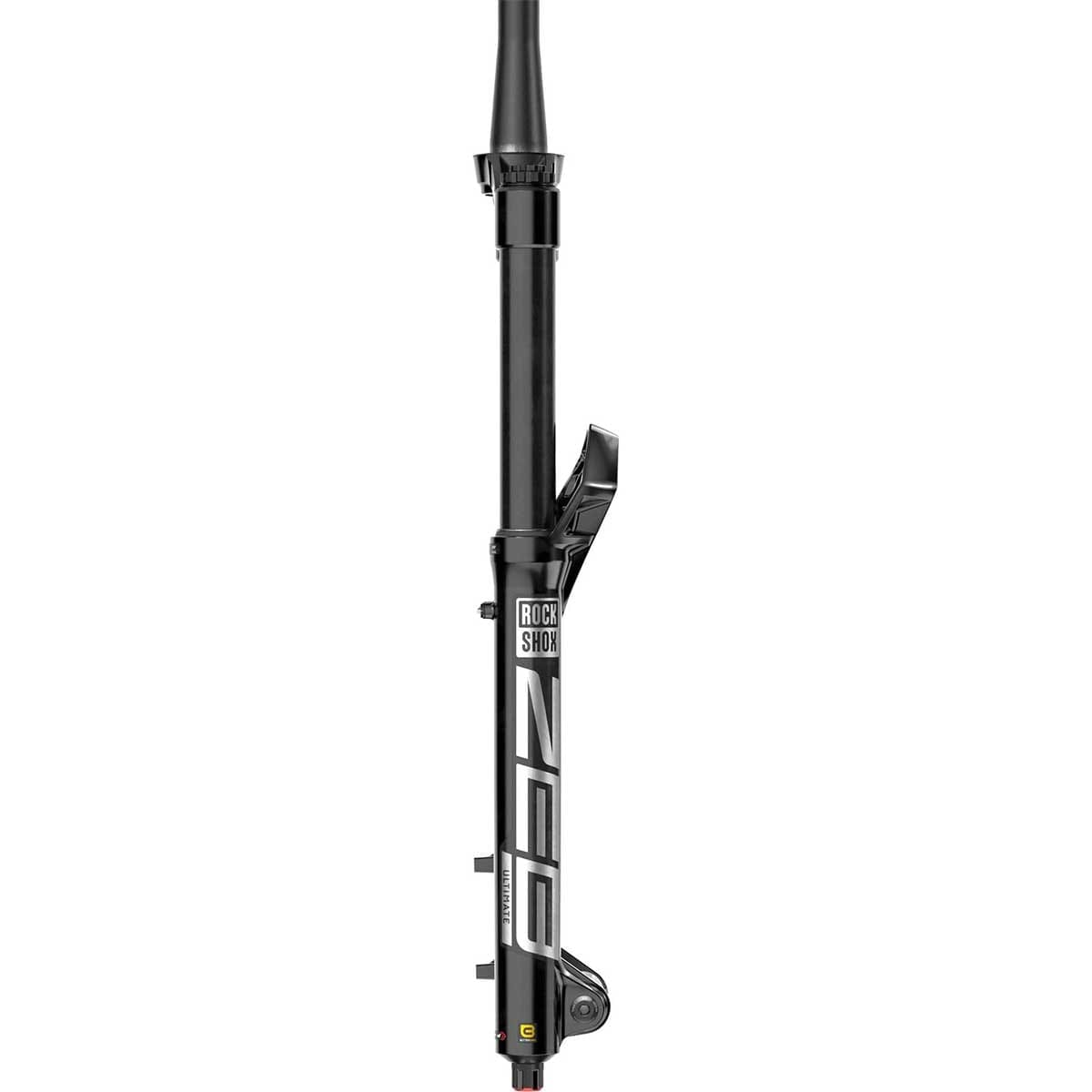

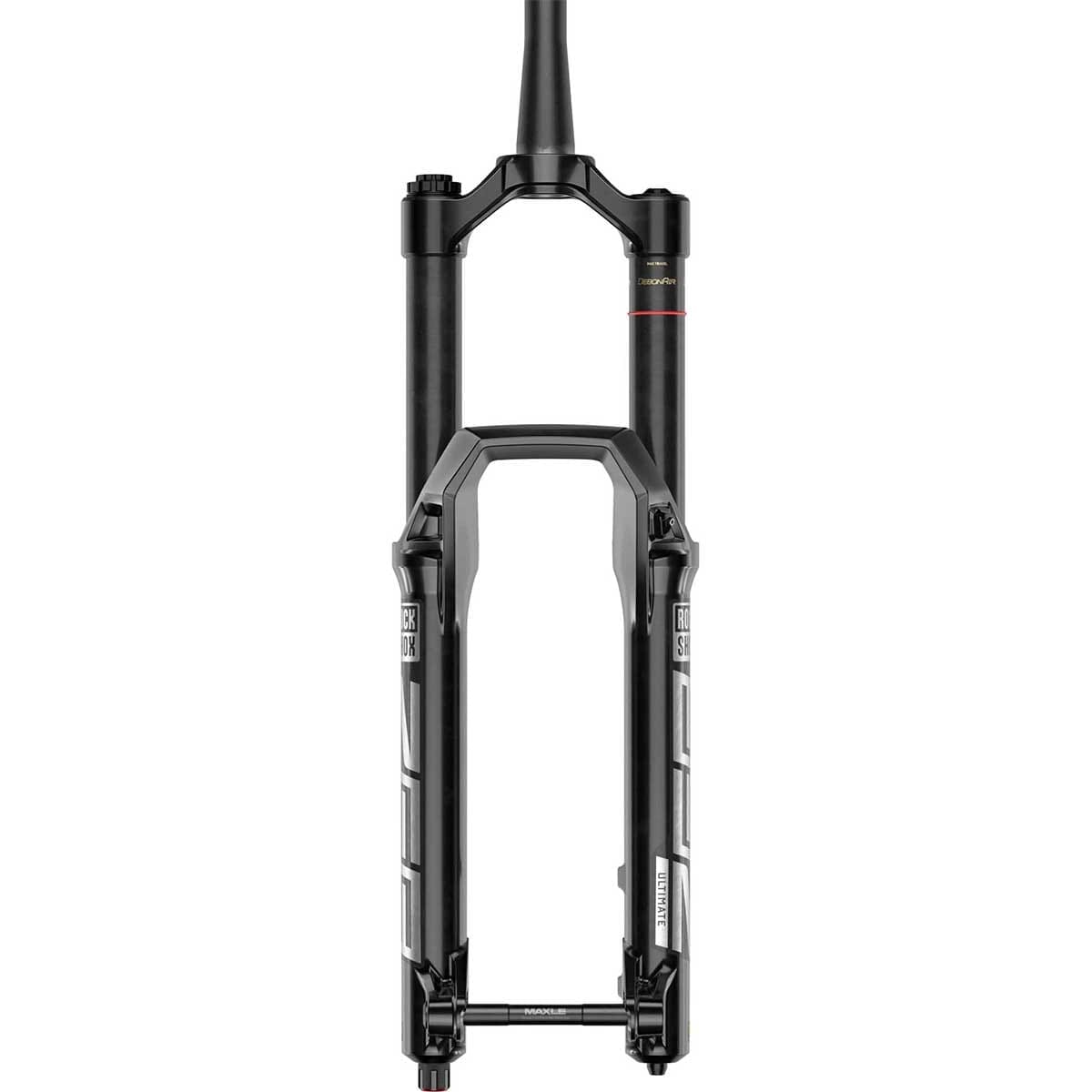

ROCKSHOX ZEB ULTIMATE CHARGER 3 RC2 27.5 Debonair+ 15x110 mm Boost Tapered Steerer Gloss Black Fork

Réf. fabricant : 00.4020.819.003
Drawing its name from the first man (Zebulon Pike) to have challenged the famous Pikes Peak mountain located just above the design centre of... Read more
Regular price 7,830.00 SEK
Regular price Sale price 7,830.00 SEK
View full details

Description

Drawing its name from the first man (Zebulon Pike) to have challenged the famous Pikes Peak mountain located just above the design centre of ROCKSHOX, the Zeb Ultimate Charger 3 RC2 fork will delight the die-hard Enduro riders enthusiasts who want a product capable of going further than the Lyrik.

Built around 38 mm diameter stanchions, it houses the Charger 2.1 RC2 cartridge which features a redesigned internal floating piston (IFP) design for improved performance with reworked rebound and independent low and high-speed compression adjustment where every click counts. Complemented by the high-volume DebonAir+ air spring, which offers support throughout the travel, a smooth and linear action for greater control and a high ride height for greater confidence when things get tough.
It also benefits from Maxima Plush oil, which improves smoothness and reduces unwanted operating noise.

Unique in its class, the Zeb chassis with its aluminium hose mount, thicker crown and ribbed, more forward-positioned arch to clear the path at end of travel for the most oversized headset cups, ensures a more linear and more sensitive behaviour, whilst also being less harsh at end of travel.

A perfect model for demanding and technical Enduro competitions!

Ref: 9357157269853

Points forts

Redefines Gravity fork expectations

Charger 3 RC2 cartridge precise at every click, with independent low-speed rebound and low- and high-speed compression adjustment

Debonair+ spring linear and sensitive on small bumps while firming up the overall feel Maxima Plush oil and SKF seals to reduce friction and unwanted noise

38 mm diameter stanchions increasing steering precision and smoothness

Informations techniques

Discipline: Enduro/E-MTB
Type: Single
Wheel Sizes: 27.5"
Front Axle: 15x110 mm (Boost)
Lockout: At the fork
Colour: Grey
Travel: 160/170 or 180 mm
Variable Travel: No
Offset: 44 mm
Max Disc Diameter: 220 mm
Min Disc Diameter: 200 mm
Steerer Diameter: Tapered 1.5"-1"1/8
Stanchion Diameter: 38 mm
Brake Mount: Postmount
Fork Height: 557 mm at 160
567 mm at 170
577 mm at 180
Steerer Length: 265 mm (cuttable)
Steerer Material: Aluminium
Stanchions: Aluminium with Fast Black Noir treatment
Lowers: Magnesium
Adjustable Air Volume: Yes

DebonAir air spring
Charger 3 RC2 cartridge
Bottomless Tokens air volume adjustment
Maxle Stealth axle
Maxima Plush oil
SKF low-friction dust seals

Low-Speed Compression Adjustment: Yes
High-Speed Compression Adjustment: Yes
Low-Speed Rebound Adjustment: Yes
High-Speed Rebound Adjustment: No
Preload Adjustment: Yes
Spring: Air

E-MTB compatible
Compatible with short Bolt-On mudguard
Tyre compatibility: up to 2.8" section in 27.5" without mudguard

Manufacturer reference:
160mm/44: 00.4020.819.011
170mm/44: 00.4020.819.010
180mm/44: 00.4020.819.009
