SHIMANO

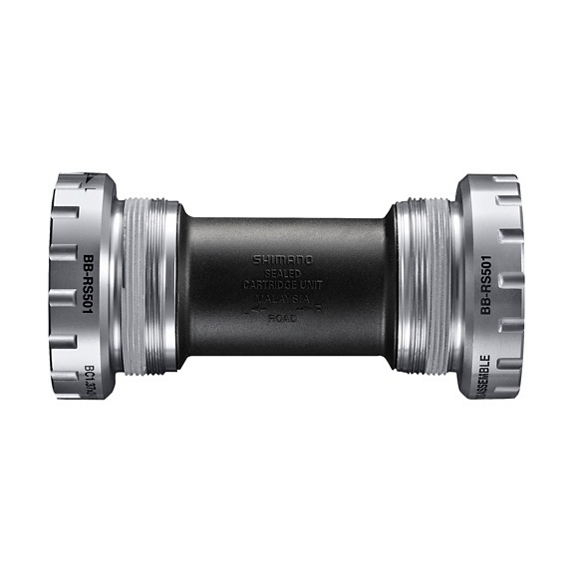

SHIMANO BB-RS501 Italian Bottom Bracket

Réf. fabricant : EBBRS501I
Designed for 68/70 mm frames and 24 mm crank axles, the SHIMANO Tiagra BB-RS501 ITA Hollowtech II threaded bottom bracket features bearings that are... Read more
234.00 SEK
234.00 SEK
View full details

Description

Designed for 68/70 mm frames and 24 mm crank axles, the SHIMANO Tiagra BB-RS501 ITA Hollowtech II threaded bottom bracket features bearings that are even smoother and more sealed than the previous generation.

The bearing size has also been revised to save weight.

Compatibility chart
A - Diameter (mm) B - Width (mm) Assembly Standard
34,8 68 screw-in BSC / BSA
34,8 73 screw-in BSC / BSA
34,8 83 screw-in BSC / BSA
34,8 100 screw-in BSC / BSA
27 95,5 press-fit BB 96 (Trek)
41 92 press-fit PF 92
42 68 press-fit BB 30
42 73 press-fit BB 30
46 68 press-fit PF 30
46 73 press-fit PF 30

Ref: 15025394286972

Informations techniques

Colour: Black
Axle Diameter: 24 mm
Bottom Bracket Width: 70 mm
Axle Type: Through-Axle
Bottom Bracket Type: Italian
Material: aluminium
Weight (manufacturer): 93g
;
