SHIMANO

SHIMANO XTR M9200 XC 29'' front wheel 15x110mm axle

Réf. fabricant : EWHM9200LFEBD9X
The SHIMANO XTR M9200 XC 29'' front wheel wheel is designed for cross-country looking for maximum performance. The ultra-light 29.6 mm carbon tubeless rim... Read more
11 878 SEK
11 878 SEK
View full details

Description

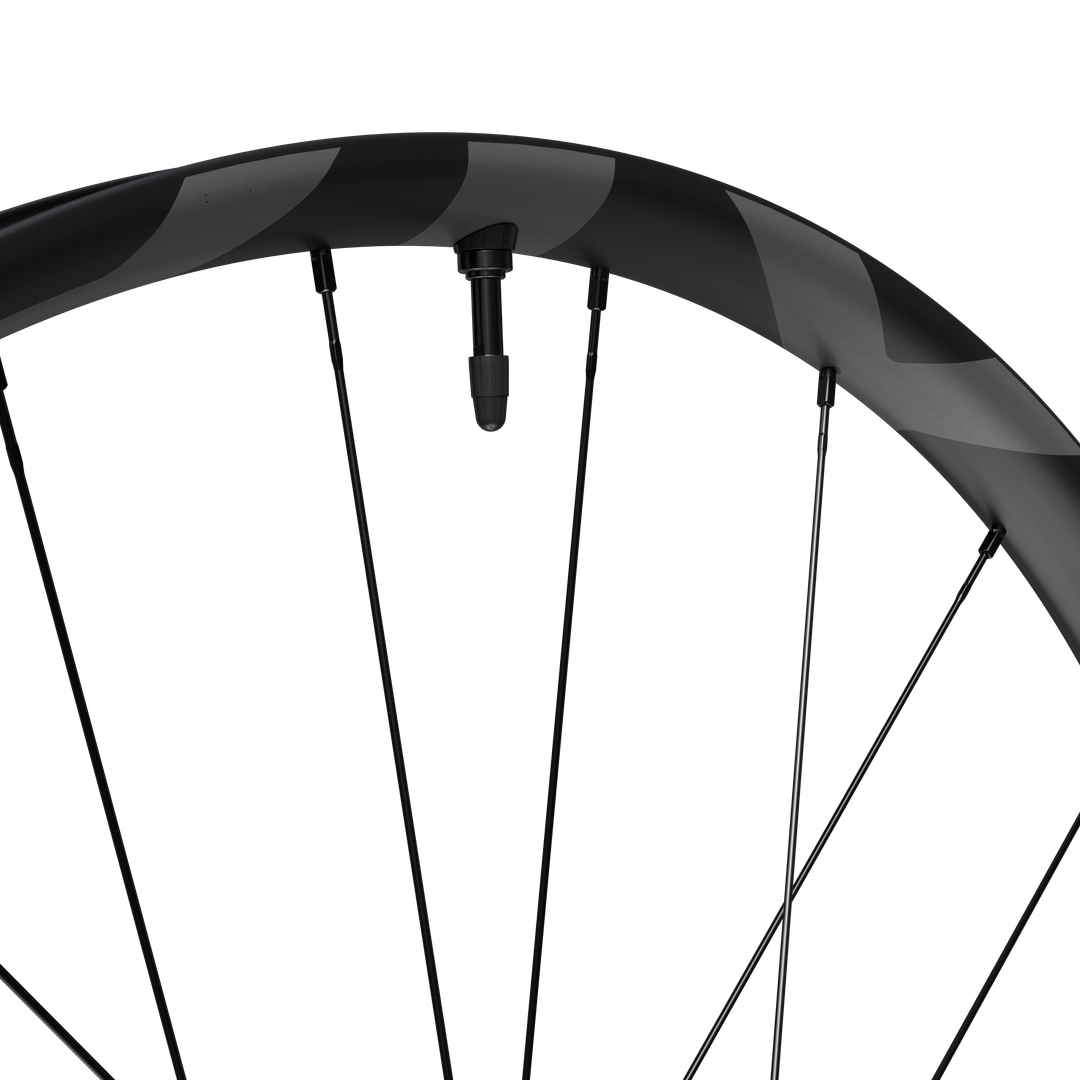

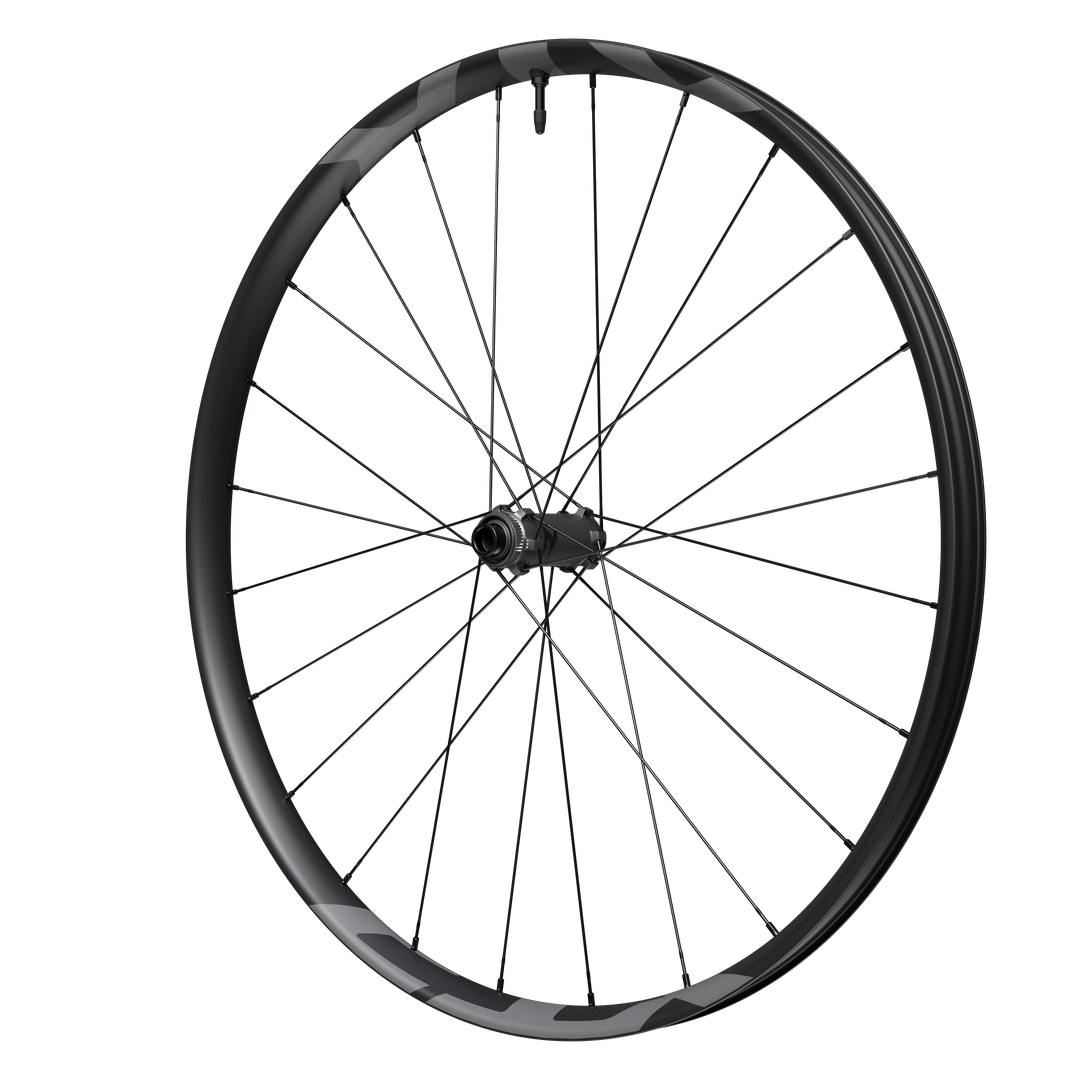

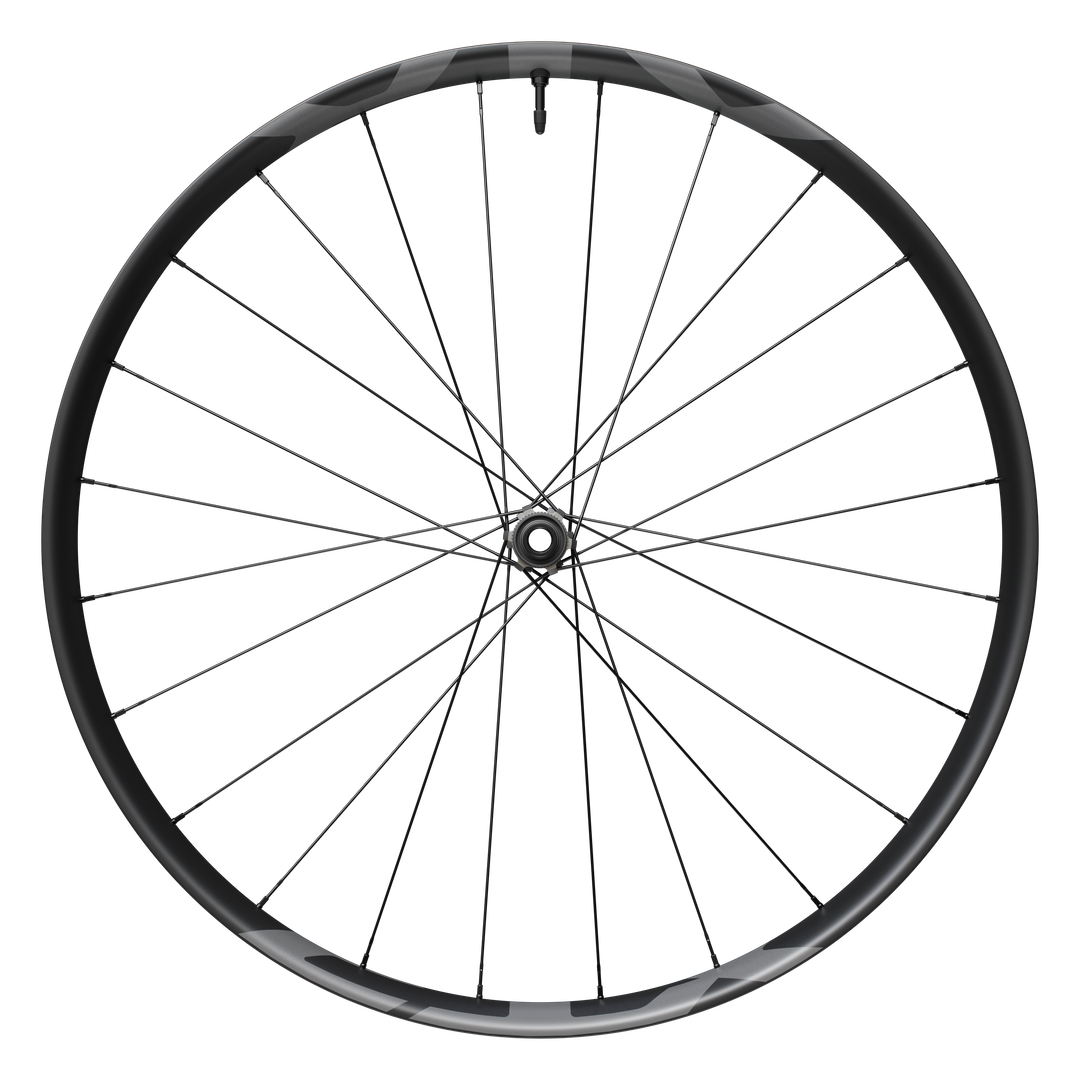

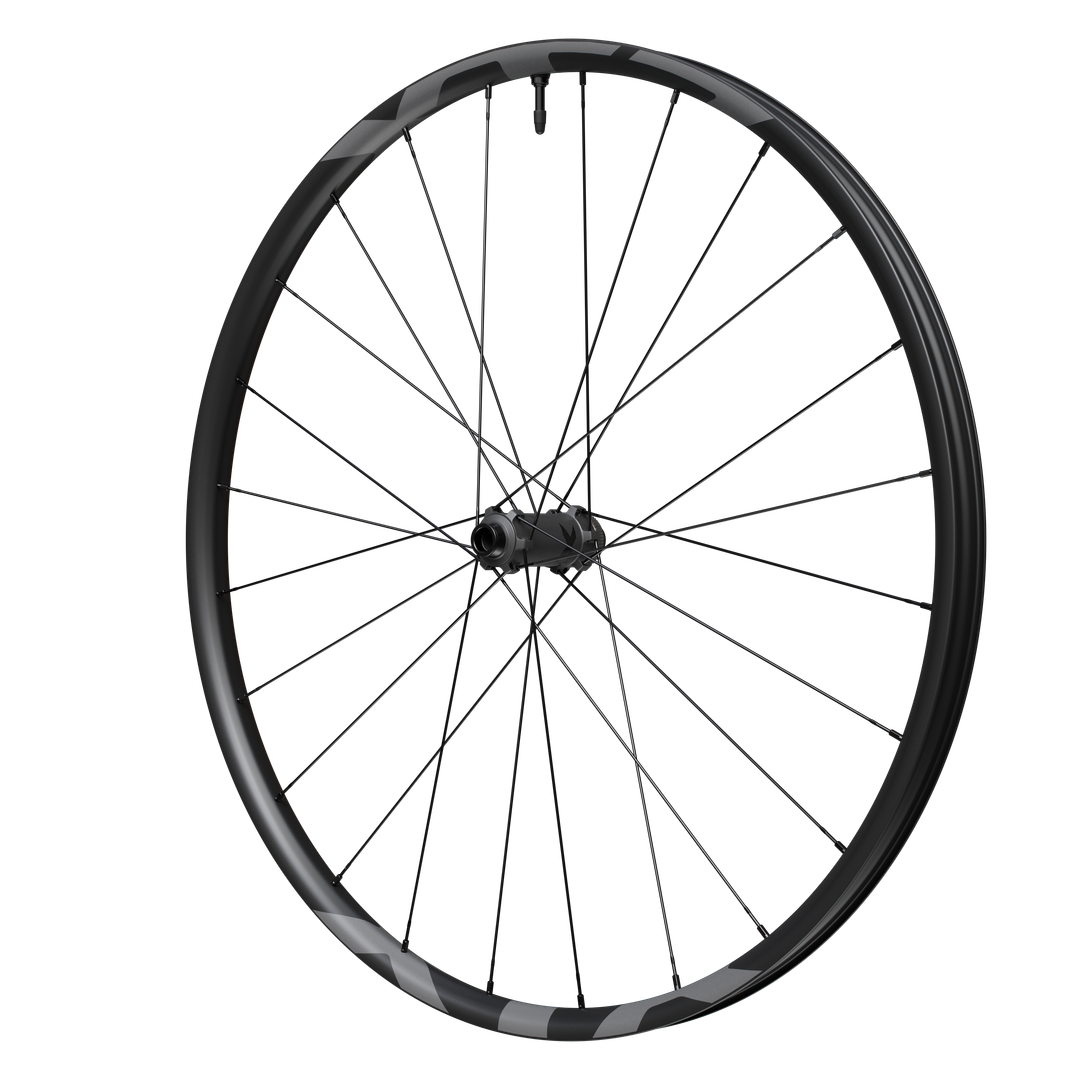

The SHIMANO XTR M9200 XC 29'' front wheel wheel is designed for cross-country looking for maximum performance. The ultra-light 29.6 mm carbon tubeless rim is Shimano's lightest ever. This structure offers an excellent compromise between light weight and robustness, ideal for the demands of high-level XC.

The titanium spokes, mounted in 24-point straight-link, ensure excellent tension and a good balance between stiffness and flexibility. Combined with a 110x15 mm Boost front hub, this configuration guarantees efficient power transmission and enhanced stability in technical sections.

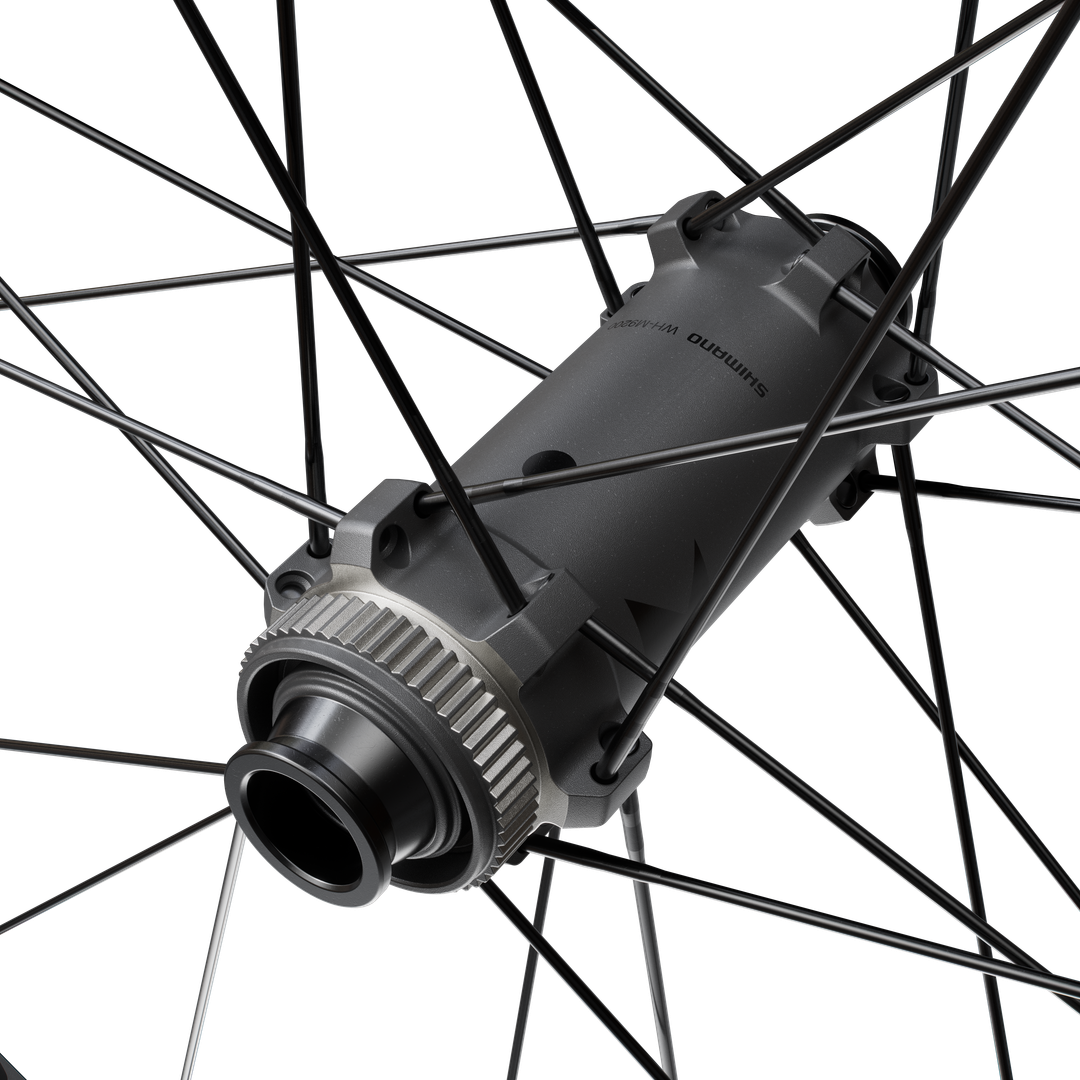

The FH-M9210-B hub features a cartridge bearing system, combined with optimized seals and a low-friction design, reducing energy loss during freewheeling.

Equipped with Centerlock brake mounts, this wheel is the perfect complement to a high-end XTR assembly. It represents the ultimate combination of lightness, responsiveness and reliability.

Ref: 15283868500348

Informations techniques

Model: WH-M9200 for practical XC.

Rim :
Carbon rim.
Internal width 29.6mm.
External width 35mm.
Height 19.2mm.
Tubeless compatible.
Asymmetrical profile.
Tubeless rim tape and valve supplied.
For 29 x 2.20 - 2.60 tires.

Spokes :
Straight titanium spokes 2.2-2.0-1.7-2.0.
24 spokes.
2 spare spokes and nipples supplied.
Spoke wrench supplied.

Hub :
15x110mm axle.
Aluminum body.
Stainless steel cartridge bearings.
Labyrinth + Contact seals.
Centerlock disc clamping (nut supplied).

Replacement program in case of breakage (subject to conditions, please contact us for more information).
Weight (manufacturer): 517g.
;

Informations prix

Supplier suggested retail price in May 2025
