SRAM

SRAM MAVEN ULTIMATE B1 Rear Brake Black

Réf. fabricant : 00.5018.259.001
The SRAM MAVEN ULTIMATE B1 Brake stands out as a benchmark for power in modern gravity disciplines. Designed to deliver confidence and commitment on... Read more
3,514.00 SEK
3,514.00 SEK
View full details

Description

The SRAM MAVEN ULTIMATE B1 Brake stands out as a benchmark for power in modern gravity disciplines. Designed to deliver confidence and commitment on demanding terrain, it provides extreme braking force while maintaining precise control at high speed. This performance allows riders to push harder on descents, while retaining controlled modulation to adjust power according to the demands of the trail.

At the heart of the system, the optimised SwingLink architecture delivers smooth power with reduced initial force, minimising hand fatigue. The rigid 4-piston 18 mm caliper efficiently manages heat to maintain consistent braking from the first to the last corner. Compatibility with different pad compounds and rotor sizes offers extensive customisation, suited to gravity MTB, e-MTB, enduro or trail riding.

The premium finish combines an Ultimate carbon lever and titanium hardware for a modern and durable design. Tool-free reach adjustment and contact point setting simplify setup. Running on Maxima mineral oil, this brake guarantees reduced maintenance and reliable performance on every ride.

Ref: 15893107376508

Informations techniques

Model reference: DB-MVN-ULT-B1 ;
Use: Enduro and DH/Freeride ;
Brake type: Hydraulic ;

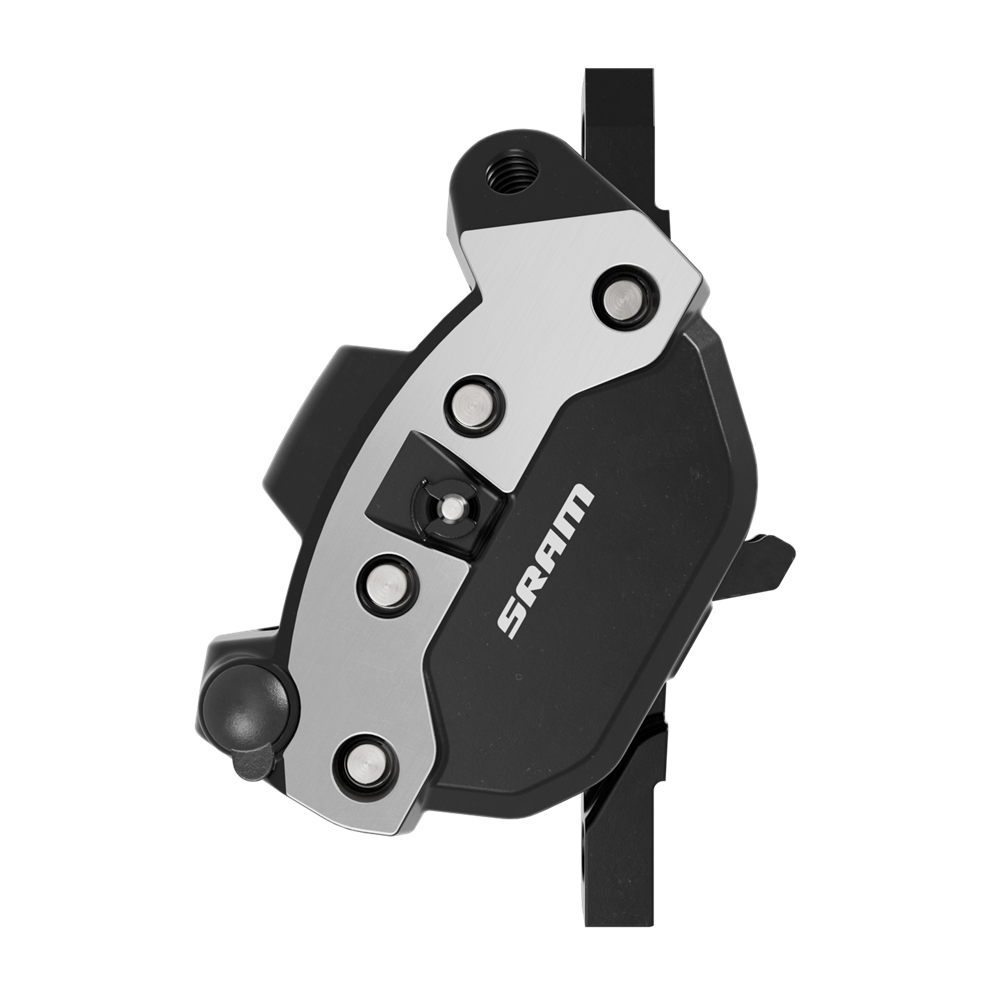

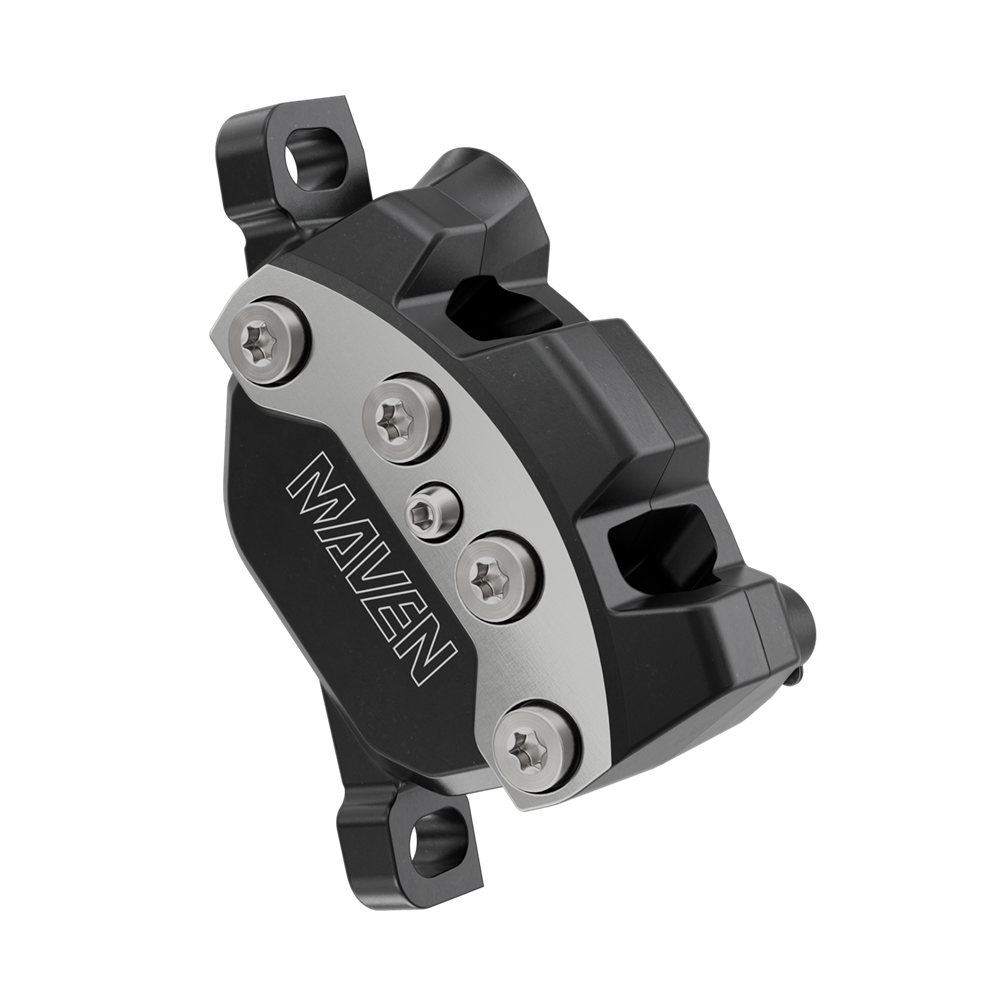

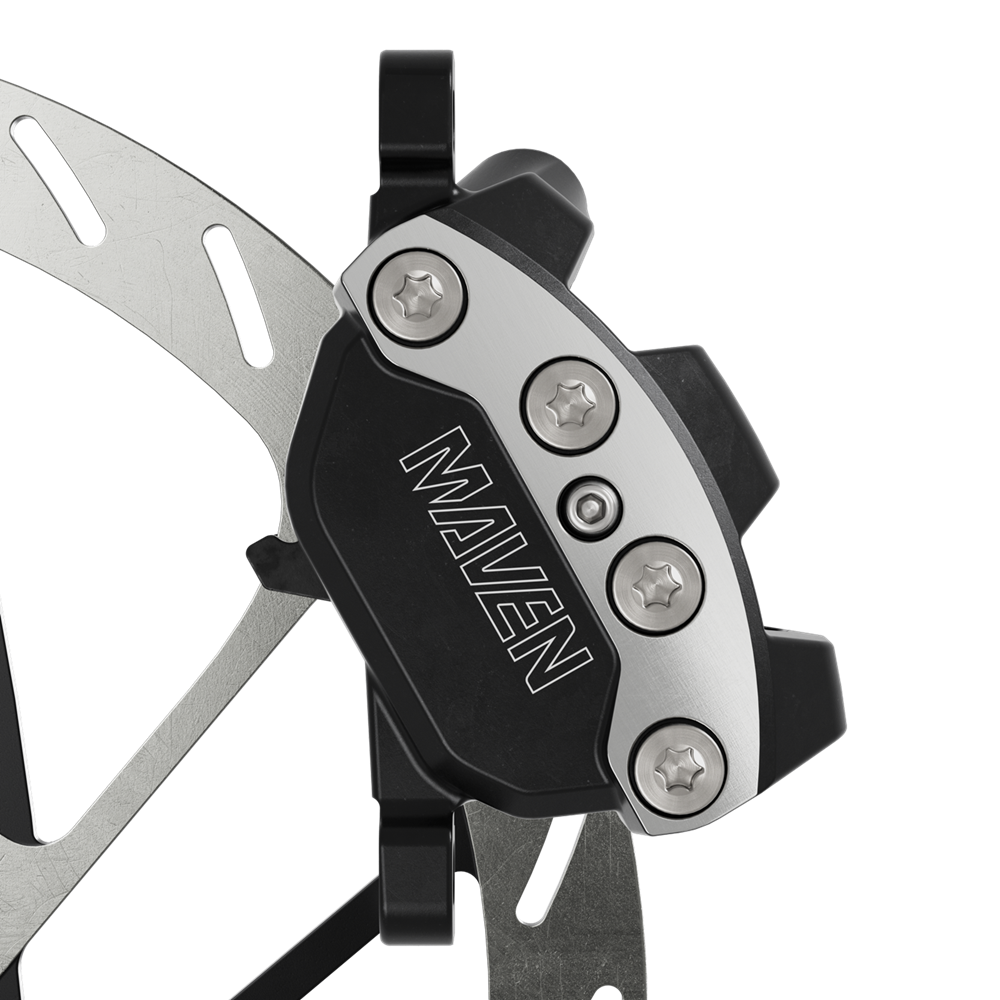

4-piston 18 mm forged aluminium calliper ;
Phenolic plastic pistons ;
PM mount ;
Titanium calliper hardware ;

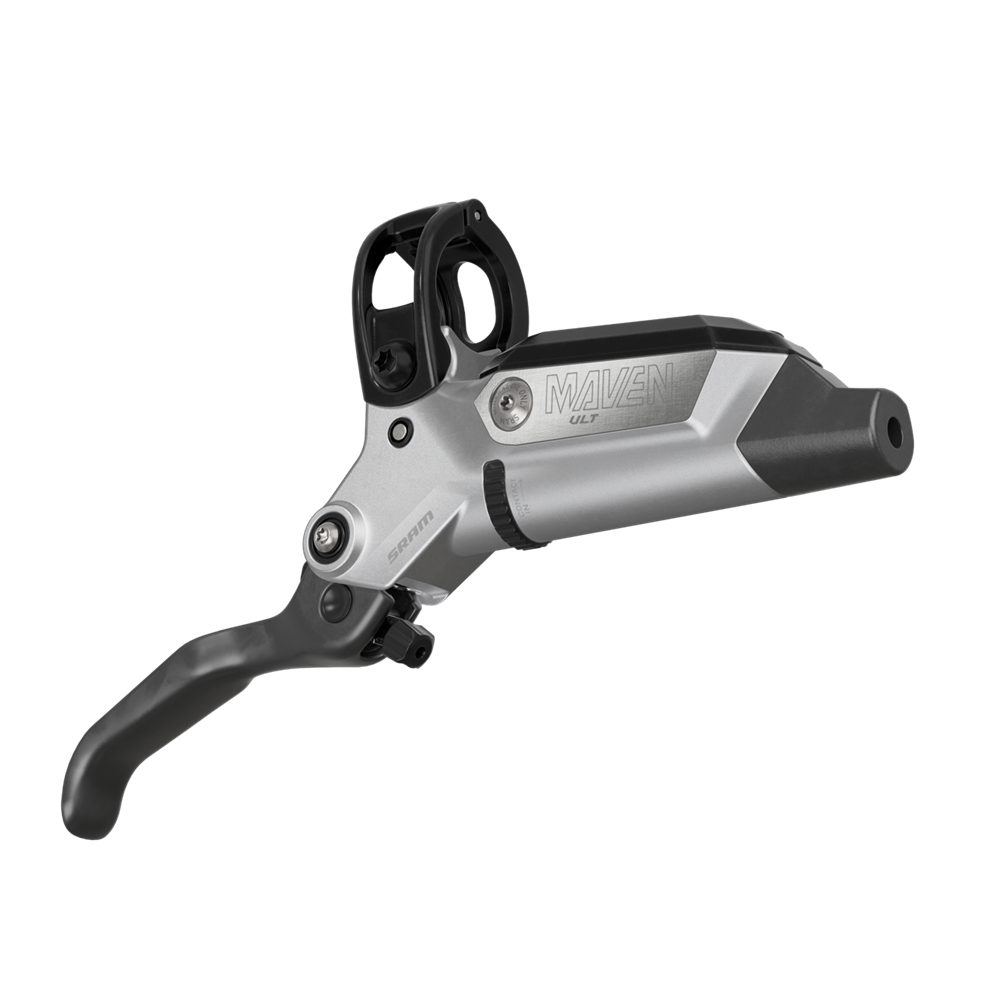

Carbon lever with bearing pivot ;
Lever body material
Forged aluminium ;
SwingLink technology revised compared to the A1 model ;
Hose length: 2000mm ;
Clear anodised finish ;
Pad type:
Organic / Steel backing plate ;
Tool-free lever reach adjustment ;
Contact point adjustment ;
Bleeding Edge bleed port ;
SRAM mineral oil ;
Designed for use with the SRAM mineral oil bleed kit ;
Ambidextrous brake: The brake lever can be positioned on either the left or right side of the handlebar ;
Recommended rotor: Sram HS2 ;
Lever ratio type: Progressive ;
Stroke initiation force: 4.25 N ;
MMX clamp ;
Weight (manufacturer): 363g.
;
