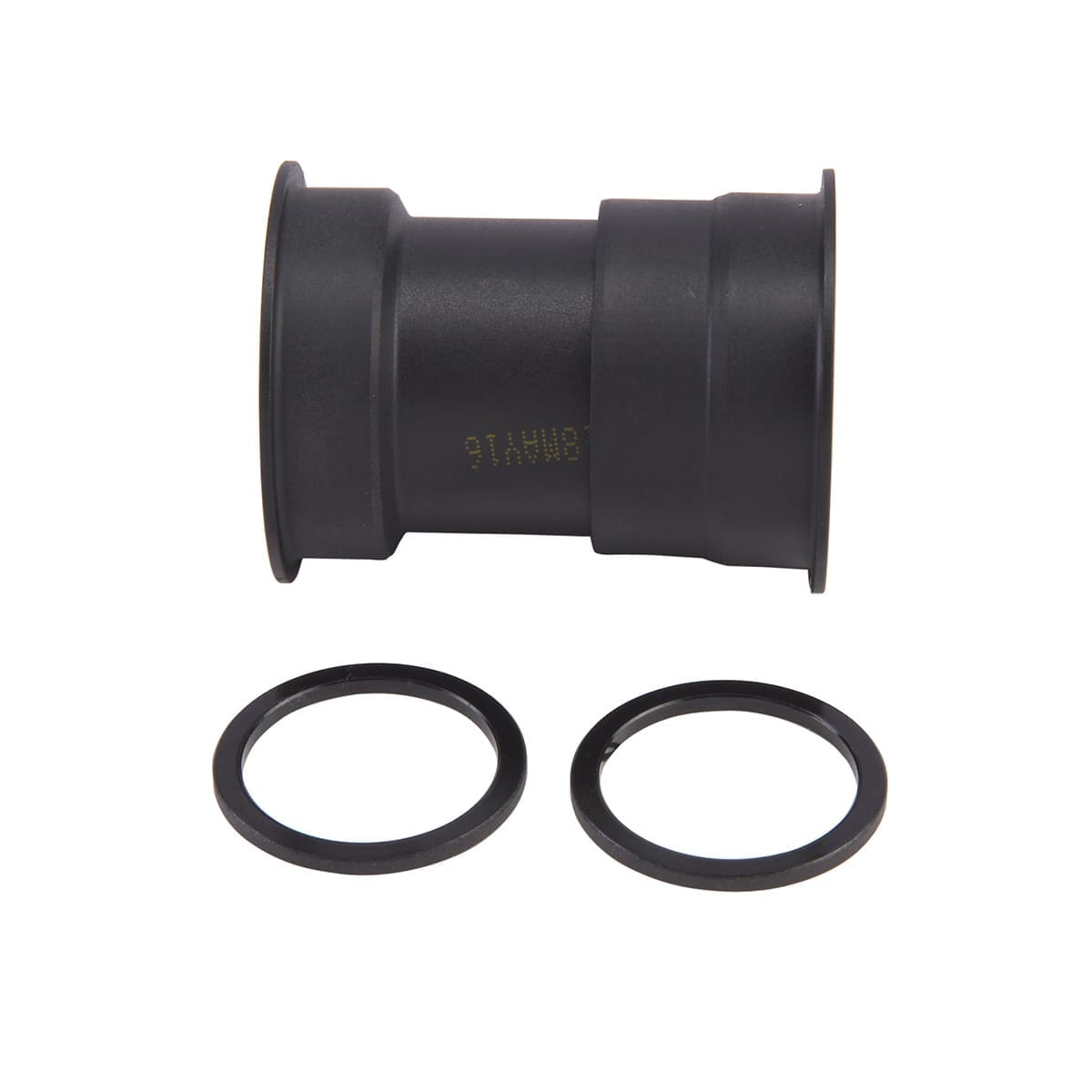

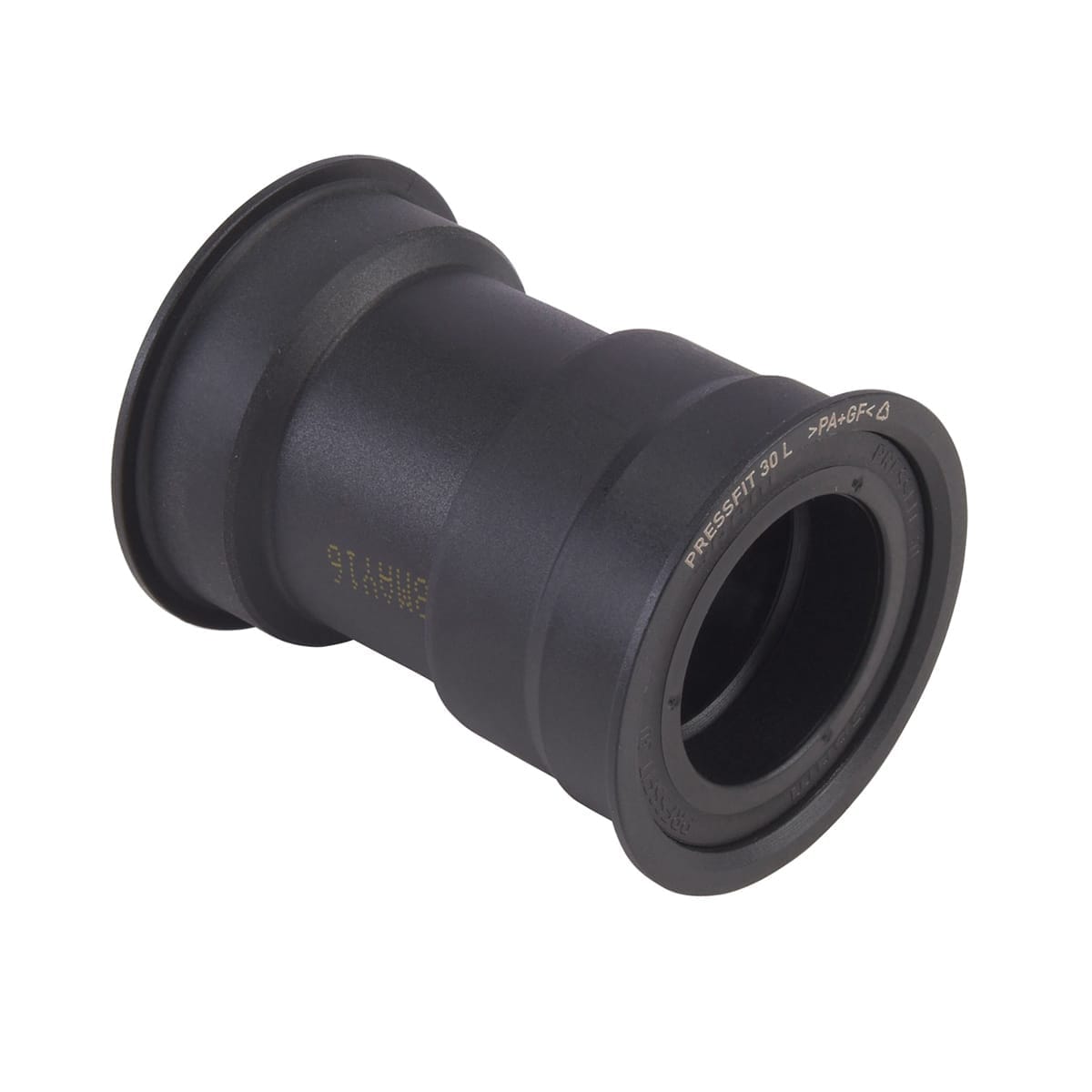

SRAM PF30 BB30A/BBRIGHT/BB386 68/92mm crankset
Réf. fabricant : 00.6418.009.000
The SRAM PressFit 30 gearbox housing is fitted with a seal, pre-assembled in the cups, to guarantee longer bearing life. The bearings are housed...
Read more
Regular price
589.00 SEK
Regular price
Sale price
589.00 SEK
Unit price
per
Couldn't load pickup availability
Description
The SRAM PressFit 30 gearbox housing is fitted with a seal, pre-assembled in the cups, to guarantee longer bearing life. The bearings are housed in nylon cups attached to the bottom brackets.
Designed for 30 mm bottom-bracket axles, this bottom-bracket shell is compatible with frames whose bottom-bracket inner diameter is 46 mm.
Compatibility chart
| A - Diameter (mm) | B - Width (mm) | Assembly | Standard |
| 34,8 | 68 | screw-on | BSC / BSA |
| 34,8 | 73 | screw-in | BSC / BSA |
| 34,8 | 83 | screw-in | BSC / BSA |
| 34,8 | 100 | screw-in | BSC / BSA |
| 27 | 95,5 | insert | BB 96 (Trek) |
| 41 | 92 | insert | PF 92 |
| 42 | 68 | insert | BB 30 |
| 42 | 73 | insert | BB 30 |
| 46 | 68 | insert | PF 30 |
| 46 | 73 | insert | PF 30 |
 |
|||
Ref: 7967898534054
Points forts
Weight savings
Closer Q factor
Greater ankle clearance
Longer bearing life
Greater rigidity and durability
Simple installation
Caractéristiques
Axis diameter : 30 mm
Case width : 68 mm
Case width : 92 mm
Bearing material : Steel
Shaft type : Through shaft
Housing type : PF30
Informations techniques
Informations prix
*
Overall rating: 3.75 / 5 from 20 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["price", "lifespan", "site"].
Review highlights
Reviews
Sram PF30 gearbox
"Poor quality bearing, but the price is right, the service life is not long 1 per year minimum, and disassembly is an ordeal, but this is due to the design of the PF30, far from the top mechanically speaking."
Perfect
"Perfect replaces the one on my Epic perfectly ,change in 15 minutes ,see how long the product lasts"
Perfect
"Super fast delivery as always. Case identical to the original on a 2014 Epic. Ultra simple and fast assembly without special tools. I put only 4 stars to the resistance to wear and tear because we'll have to see how it holds up over time."
As expected
"Bearings, plastic ... a bit expensive for what it is. Mounting ok with suitable tooling, on Focus Izalco max frame, Sram Red BB30 crankset. No hindsight on wear."
Better than the old model
"With this new model ( dust cover integral with internal scope), life expectancy is better, but very far from good! High price for consumables."
Does the job
"New PF30 housing. Caution: the dust seal goes under the bearing. Impossible to change only the bearing, which ends up with a strange rib... ..."
A disgrace...
"not suitable for mountain bikes... or road bikes according to other reviews... ."
Fair price vs. long life
"Bottom bracket whose lifespan does not exceed one season. Fortunately, the price remains moderate."
Short service life
"To be replaced frequently, the bearings are not sealed and wear out quickly".
