Upgrade Kit Power Meter FAVERO ASSIOMA

The FAVERO ASSIOMA Power Meter Upgrade Kit is designed for cyclists who already own an ASSOMA Assioma Uno sensor and want to analyse their... Read more
3,885.00 SEK
3,885.00 SEK
View full details

Description

The FAVERO ASSIOMA Power Meter Upgrade Kit is designed for cyclists who already own an ASSOMA Assioma Uno sensor and want to analyse their data even further. By adding this right pedal upgrade, you get precise left/right balance data. Thanks to the exclusive IAV Power system and integrated gyroscope, Assioma gyroscope measures actual instantaneous angular velocity, guaranteeing accuracy of ±1% regardless of pedaling style or use of oval chainrings.

The system also provides advanced parameters such as cadence, torque efficiency, pedal smoothness, energy consumption, power-to-weight ratio and threshold power. Factory-calibrated, Assioma sensors ensure reliable measurements in a wide range of weather conditions, from -10°C to 60°C, thanks to automatic temperature compensation.

With the Assioma applicationapplication, you can easily update the software, make adjustments and check the battery level, optimizing every bike outing.

► Manufacturer's manual

► Technical details and exploded view

Ref: 7967868354726

Informations techniques

▲ The product is delivered pre-assembled
▲ This product is a spare part for Assioma DUO: it does not function as a unilateral power sensor
▲ It must be paired with a left pedal with power sensor via the free Favero Assioma app

╝FEATURES
► Easy installation: quick assembly and transfer between bikes, without special tools or mechanical assistance
► IAV Cycling Dynamics: detailed analysis of pedaling technique and the influence of rider position
► IAV Power Accuracy: precise measurements to ±1% even with irregular pedaling or oval chainrings
► Connectivity: Bluetooth and ANT+ compatible for easy connection with computers and smartphones
► Right/Left measurements: Precise analysis of power balance between the two legs
► Thermal stability: consistent accuracy thanks to automatic temperature compensation (ATC)
► Resistance and Waterproofing: Electronics protected in robust, shockproof resin
► Autonomy: Rechargeable batteries offering 50 hours of use per charge
► Tested and Guaranteed: Each sensor is individually tested to meet regulatory standards
► Made in Italy╔

┘GENERAL
- Part Number : 772-51
- Total weight pedal with sensor : 151,5g
- Water resistance: IP67
- Maximum rider weight: 120kg
- Cleats: original Look® Kéo Cleats or Favero cleats (red and black)┌

┘DIMENSIONS & FEATURES
- Q Factor : 54 mm
- Pedal axle thread: 9/16"-20 tpi
- Bearings: 3, sealed cartridge
- Pedal axle material: Stainless steel
- Oval chainring compatibility: yes┌

┘POWER SENSOR
- Right-side power sensor for racing bikes
- Cadence sensor: included, integrated
- Gyroscope: included, integrated
- Power calculation system: IAV (Instantaneous Angular Velocity-based)
- IAV Cycling Dynamics: yes
- Battery: lithium-ion, rechargeable
- Operating time: at least 50 hours
- Communication: Bluetooth v4.0, ANT+ profile PWR (CT + PO)
- Power measurement accuracy: ±1%.
- Temperature compensation: -10°C / + 60°C
- Minimum and maximum power: 0 - 3000 W
- Minimum and maximum speed: 30 - 190 rpm
- L/R balance: 0 - 100% (Assioma DUO only)┌

┘INCLUS

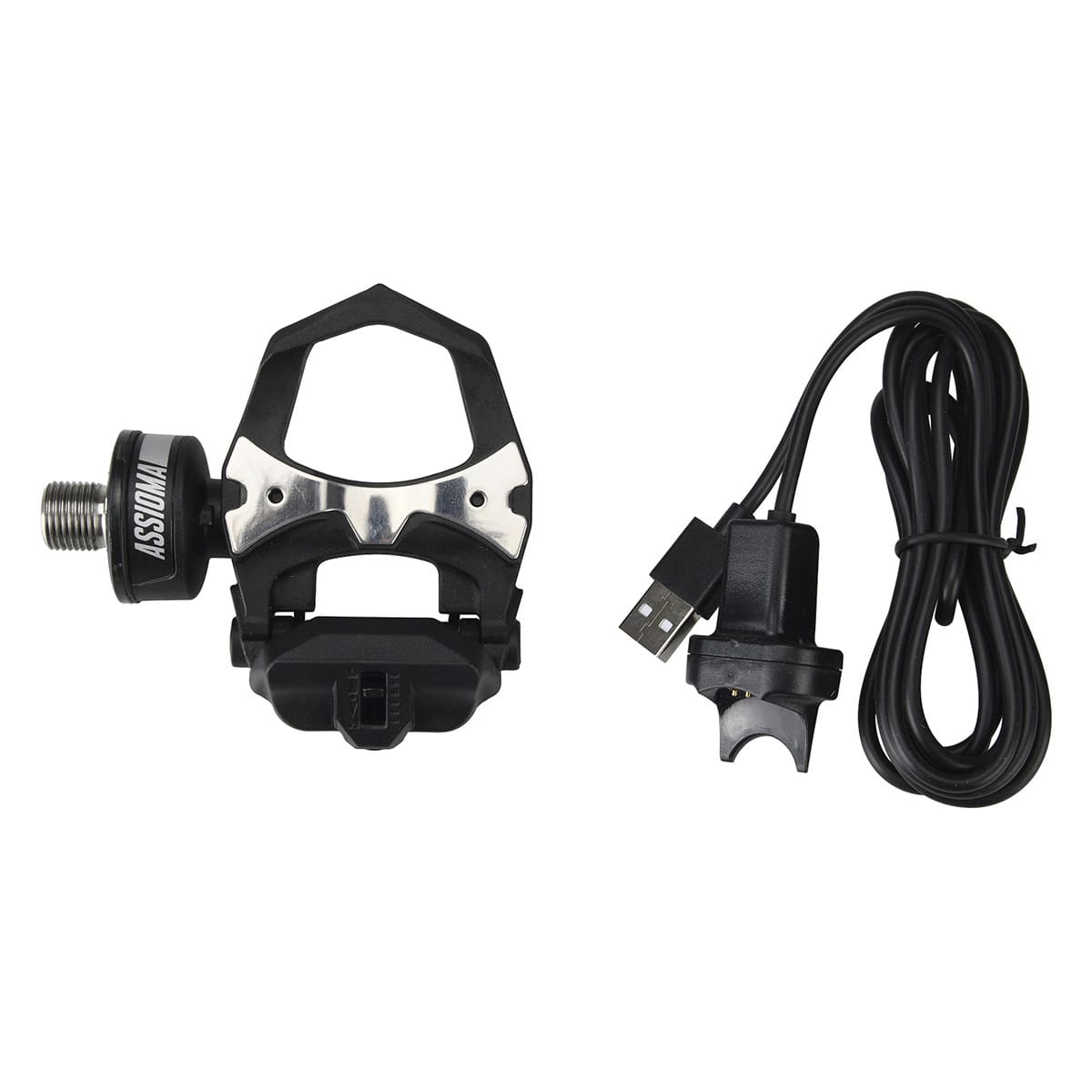

- 1x right pedal with power sensor for Assioma DUO
- 2x washers┌

┘COMPATIBLE ACCESSORIES
- Assioma DUO/UNO Right pedal body: 772-61
- Assioma DUO/UNO Bearing set : 772-72
- Assioma DUO Right sensor: 772-65
- Assioma DUO/UNO Adhesive label set : 772-94
- Assioma Magnetic connector : 772-80
- Assioma USB/Micro-USB cable (2m) : 771-87
- Assioma Battery charger : 771-85
- Assioma DUO/UNO Red shims (Angular freedom 6°) : 771-42
- Assioma DUO/UNO Black wedges (Angular freedom 0°) : 771-40┌
;
