WOLFTOOTH

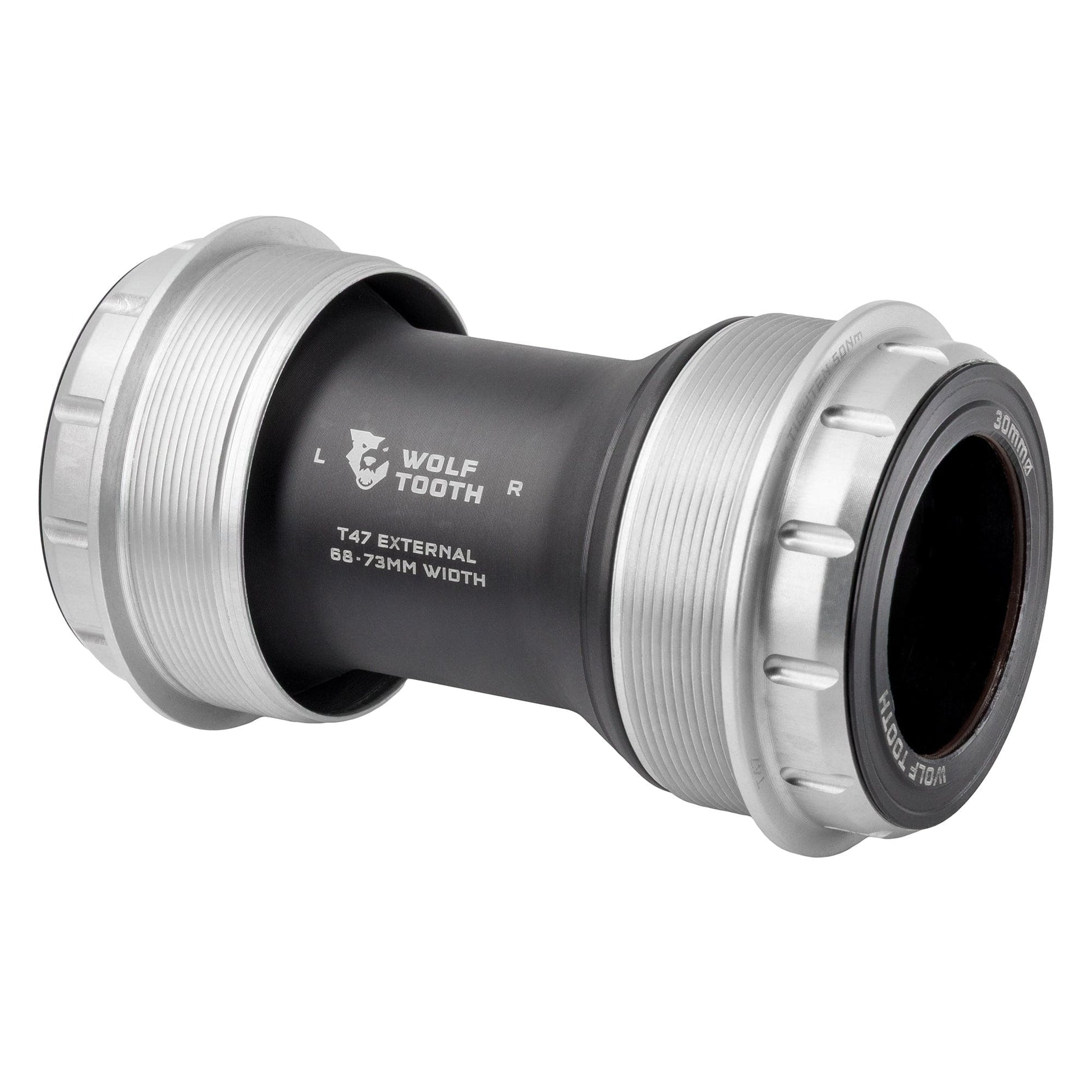

WOLFTOOTH T47 External 24mm raw Silver crankset

Réf. fabricant : WBB-T47E-24-RSIL
Enjoy exceptional pedaling smoothness and flawless durability with the Wolf Tooth T47 External bottom bracket. Designed for demanding cyclists, it combines first-rate sealing with... Read more
1 981 SEK
1 981 SEK
View full details

Description

Enjoy exceptional pedaling smoothness and flawless durability with the Wolf Tooth T47 External bottom bracket. Designed for demanding cyclists, it combines first-rate sealing with minimal friction, guaranteeing optimal, long-lasting performance. This bottom bracket is the ideal solution for transforming leg power into pure speed, with no loss of energy.

Whether you're a road racer, gravel adventurer or committed mountain biker, this bottom bracket is designed to excel in all conditions. Its rugged design and high-performance seals protect it from mud, water and dust, ensuring rock-solid reliability wherever your bike takes you.

The heart of this gearbox lies in its top-of-the-range custom bearings, separated from the axle by polymer bushings that eliminate creaking. CNC-precision machined aluminum cups, combined with a multi-barrier sealing system, ensure smooth, quiet operation. Installation is simplified by the use of standard tools, making this upgrade accessible to all.

Ref: 15615576801660

Informations techniques

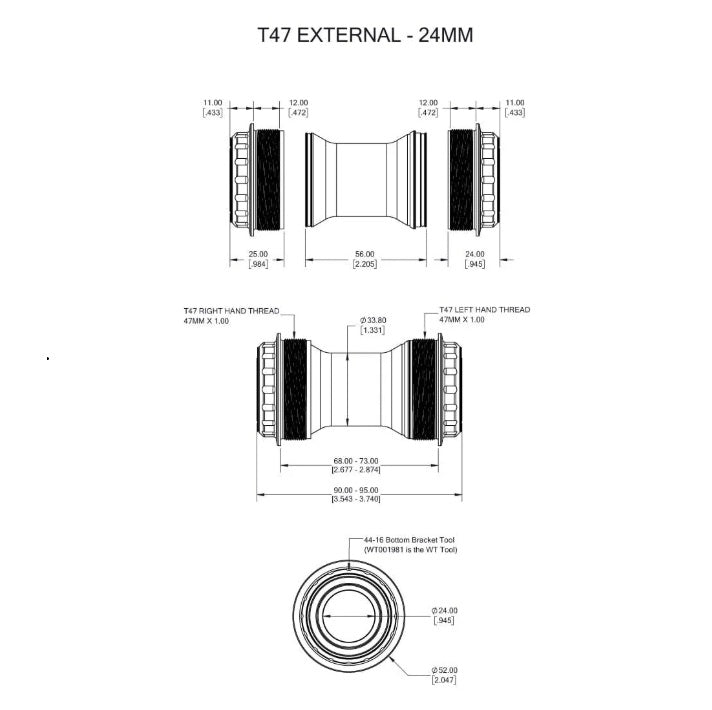

Standard: T47 External
Axle compatibility: 24 mm (Shimano)
Supported housing widths: 68-73 mm (via adjustable internal sleeve)
Materials: CNC-machined 6061-T6 aluminum cups; glass-filled nylon inner sleeve; NBR/EPDM/urethane seals; AISI 52100 steel bearings (Rc 61-66 balls, Rc 60-65 races) with ACOSUR ZNA coating
Sealing: axle O-rings, bearing/ring gutter seals, low-friction internal/external seals, shell O-rings, and labyrinth-type end caps
Weight: 24 mm - 96 g (complete set without spacers)
Required tools: Standard spline tool 44-16 for 24 mm + grease
Available colors: Black, Orange, Ultraviolet Purple, Raw Silver
Pack contents: 1x complete bottom bracket (cups + bearings), 2x shell spacers 2.5 mm, axle spacers (0.5 mm, 1 mm, 2 mm, 3 mm, 5 mm) for 24 mm
;
