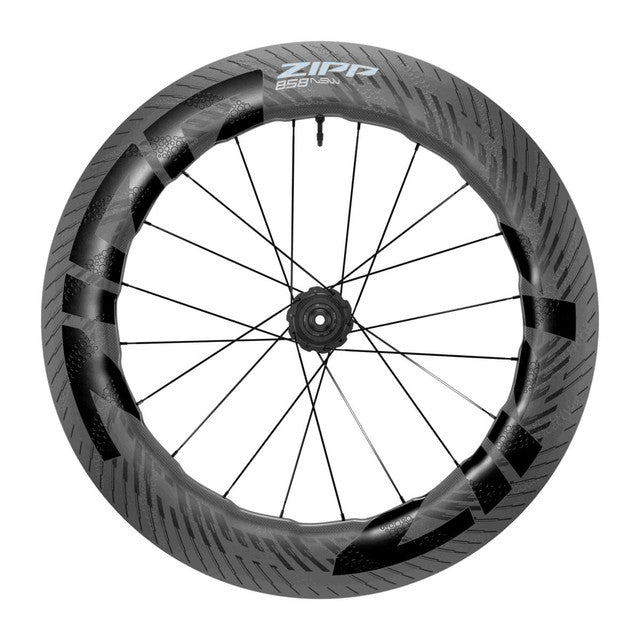

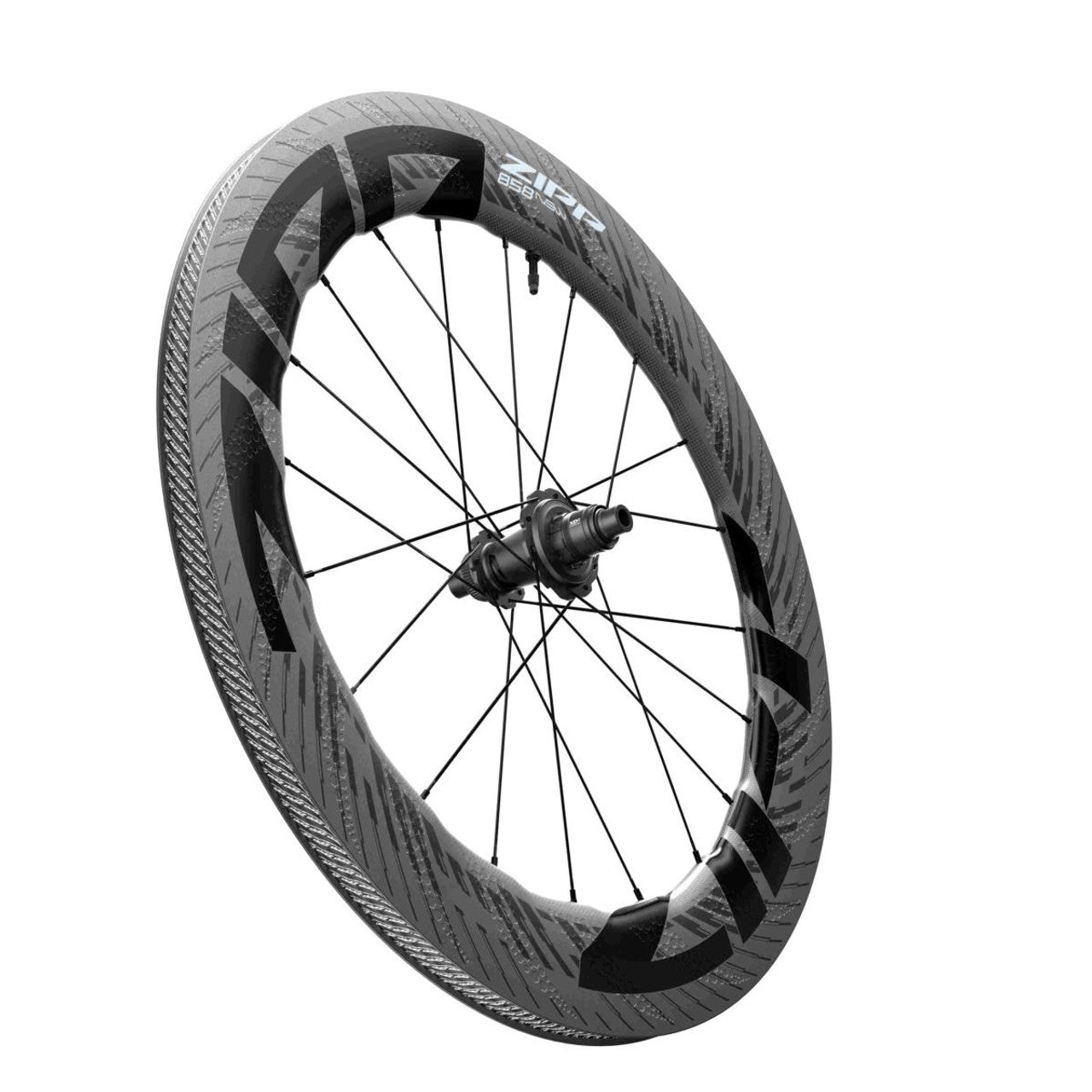

ZIPP 858 NSW DISC Tubeless Ready (Center Lock) Rear Wheel

The ZIPP 858 NSW DISC Rear Wheel is a powerhouse of aerodynamic performance, faster than ever thanks to its exclusive TSE (Total System Efficiency)... Read more
21,620.00 SEK
21,620.00 SEK
View full details

Description

The ZIPP 858 NSW DISC Rear Wheel is a powerhouse of aerodynamic performance, faster than ever thanks to its exclusive TSE (Total System Efficiency) technology.

This tubeless Hookless model, without hooks, improves aerodynamics and reduces weight, offering a high-performance rim at the weight typically reserved for 20 mm rims. The 23 mm internal width is ideal for wider tyres at lower pressure, reducing rolling resistance.

TSE technology overcomes the four obstacles to speed: wind resistance, gravity, rolling resistance and energy losses due to vibrations. The patented ABLC Sawtooth profile, combined with an 82 mm/85 mm rim and Hyperfoil bumps, optimises aerodynamics and stability, even in crosswinds.

The Cognition V2 hub, with its Axial Clutch V2 mechanism, delivers fast engagement, low friction and increased longevity.

► Manufacturer's Manual

► Zipp Hookless Tyre/Rim Compatibility Chart



Ref: 9453596508509

Informations techniques

┘GENERAL
Pair Weight: 1530 g
Max. Load: 114 kg
Manufacturer Reference:
• Shimano HG - 00.1918.698.000
• SRAM XDR - 00.1918.698.001

┘RIM
Material: Carbon
Tyre Interface: Hookless
Profile: Symmetrical
Technologies: ABLC SawTooth Texture (aerodynamics, stability) / UD Fiber Finish (Stiffness, durability, lightweight)
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 85mm
Internal Width: 23mm
Tyre Compatibility: Tubeless only | Min. tyre width 25 mm
Max. Tyre Pressure: 73psi/5.0bar

┘HUBS
Model: Cognition V2
Material: Aluminium
Bearings: Steel, cartridge
Spacing: 12x142mm
Disc Mounting: Center Lock
Freehub Body: Shimano HG or SRAM XDR
Mechanism: Axial Clutch V2, 54 Points of Engagement

┘SPOKES AND NIPPLES
Model: Sapim CX-Ray
Number: 24
Right Side Length: 230mm
Left Side Length: 234mm
Lacing Type: 2 Cross
Nipples: Sapim Secure-Loc (anti-rotation) - Aluminium

┘KEY FEATURES & TECHNOLOGIES
► TSE TECHNOLOGY: ZIPP's TSE (Total System Efficiency) technology optimises wheel performance by reducing aerodynamic drag, weight and friction. It thus improves efficiency, speed and comfort on all terrains;
► COGNITION V2/AXIAL CLUTCH V2: ZIPP's Cognition V2 hub is designed to deliver fast engagement thanks to its Axial Clutch V2 freehub mechanism. It reduces friction, improves efficiency and ensures increased durability;
► ABLC SAWTOOTH: ZIPP's ABLC SawTooth technology optimises aerodynamics through a specific undulating pattern on the rim, reducing drag and improving stability in crosswinds for enhanced performance;
► HYPERFOIL: ZIPP's Hyperfoil technology is a set of strategically placed bumps on the rim of NSW wheels. It improves aerodynamic stability by reducing drag and minimising the impact of crosswinds;
► IMPRESS: ZIPP's ImPress technology allows graphics to be printed directly onto the rim, thereby reducing weight and optimising aerodynamics while maintaining the ABLC SawTooth honeycomb texture for better performance;

┘INCLUDED
Tubeless Valves
Center Lock Nuts

┘CONVERSION REFERENCES
► Adapters for QR: 11.2018.048.030
► Adapters for 12x142 HG/XDR: 11.2018.065.007
► Adapters for 12x142 Campagnolo N3W: 11.2018.069.001
► XDR Freehub Body: 11.2018.065.001
► HG Freehub Body: 11.2018.065.000
► Campagnolo Freehub Body: 11.2018.065.009
► Campagnolo N3W Freehub Body: 11.2018.065.011
;

Informations prix

*Supplier recommended retail price in February 2024
